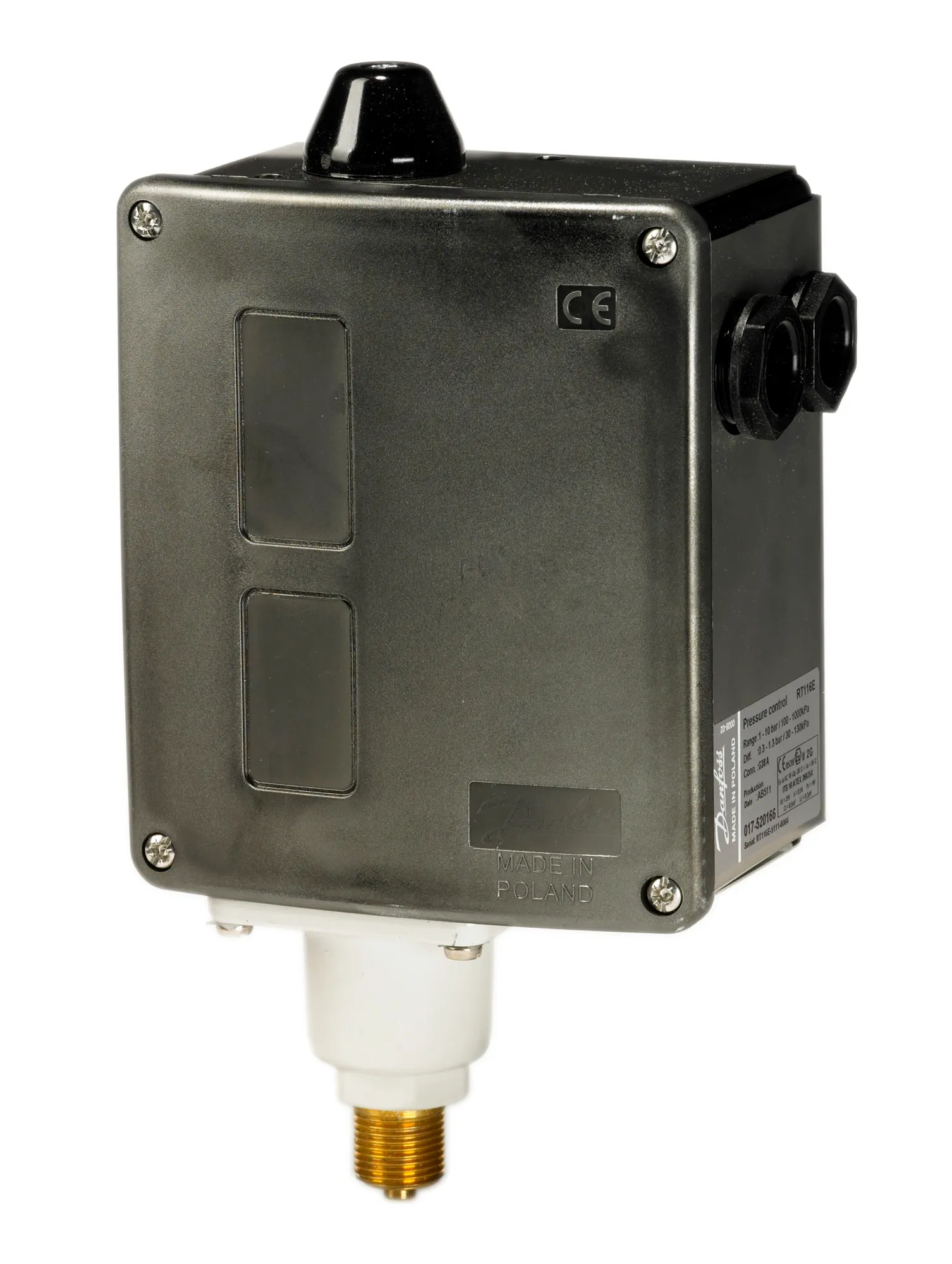

017-618466

Part Number: 017-618466
017-618466
Manufacturer
Danfoss
Part number
017-618466
Category

Product Information

Extended Description

017-618466 Danfoss: Regulation range [bar] Pe: -1.00 - 0.00, Differential [bar]: 0.09 - 0.40, Contact function: SPDT gold, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 7.0
Gross weight
1.113 Kilogram
Net weight
0.858 Kilogram
Volume
2.685 Liter
EAN
5702428046558
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-20 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-4 °F
Approval
ATEX - Cat. 2 - Zone 1,CCC,CE,EAC,LVD,NKK,PZH,RINA,RMRS,RoHS,RoHS China,TYSK,LLC CDC EURO-TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact function
SPDT gold
Contact rating
Ci=0.5 nF,Ii=0.5 A,Pi=1 W,Ui=29 V,Li=0.2 uH
Contain batteries
No
Differential [bar] [max]
0.4 bar
Differential [bar] [min]
0.09 bar
Differential [psi] [max]
5.8 psi
Differential [psi] [min]
1.3 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A,Insulation: 400V
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Out of scope
EX Sales text
-20Cta+65C,II 2G Ex ia IIC T6...T1 Gb
In scope of WEEE
Yes
Max. test pressure [bar] Pe
8 bar
Max. test pressure [psig]
116 psig
Max. Working Pressure [bar]
7 bar
Max. Working Pressure [psig]
100 psig
Packing format
Multi pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
15 pc
Regulation range
29.5 inHg - 0 psig
Regulation range [bar] Pe [max]
0 bar
Regulation range [bar] Pe [min]
-1 bar
Reset function
Auto
Serviceable
Contact systems
Type
RT121E
UK RoHS compliance
Out of scope
Pressure switch Differential pressure switch and Thermostat RT-E Pressure switch Type RT, Spare parts and accessories Pressure switch, RT 1AE, RT 6AEW, RT 6AEB, RT 6AES, RT 116E, RT 5E, RT 117E, RT 112E, RT 113E, RT 121E, RT 260AE, RT 262AE Danfoss EU 060-9657.AG DEMKO 14 ATEX 1406X Rev. 4 IECEx DK/ULD/QAR12.0002/11 IECEx ULD 14.0013X_04 UL21UKEX2021X Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB RINA ELE086320XG-005 DEMKO 12 ATEX Q1209493 Rev. 13 RT116E Pressure switch, G3/8,, code 017-520166
