017B0002
Part Number: 017B0002
Product Information
Extended Description

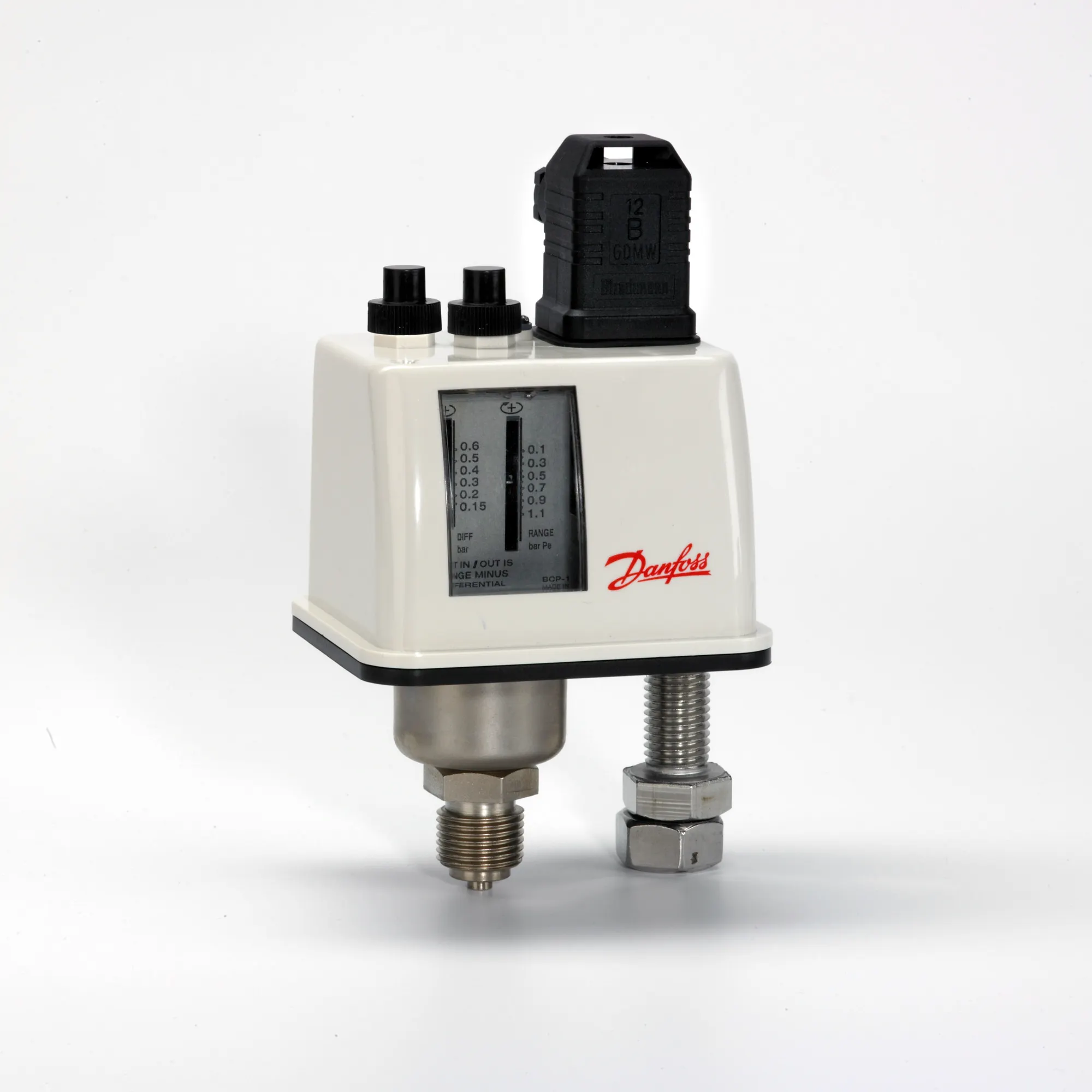

017B0002 Danfoss: Regulation range [bar] Pe: 0.10 - 1.10, Differential [bar]: 0.15 - 0.60, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/2, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 6.0
Gross weight
0.7 Kilogram
Net weight
0.574 Kilogram
Volume
1.736 Liter
EAN
5702423248032
Ambient temperature range [=C2=B0C] [max]
70 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-20 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
158 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-4 =C2=B0F
Approval
CE,EAC,EMCD,LLC CDC EURO-TYSK,LVD,PED,RoHS,TYSK,T=C3=9CV
Approval file name
T=C3=9CV .SDWFS/SDBFS .15-335
Burst pressure [bar]
9 bar
CE evaluated
Yes
China RoHS compliance
Out of scope
Contact function
SPDT gold
Contact load type
A
Contact rating
AC15=3D1 A, 250 V,AC1=3D6 A, 250 V,DC13=3D10 W, 250 V
Contain batteries
No
Differential [bar] [max]
0.6 bar
Differential [bar] [min]
0.15 bar
Differential [psi] [max]
8.7 psi
Differential [psi] [min]
2.2 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
DIN-plug
Electrical connection size
Pg 11
Electrical connection standard
EN 175301-803
Electrical spec. standard
EN 60947-4/-5
Enclosure rating IP
IP65
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1
In scope of WEEE
Yes
Max. test pressure [bar] Pe
6.6 bar
Max. test pressure [psig]
96 psig
Max. Working Pressure [bar]
6 bar
Max. Working Pressure [psig]
87 psig
Packing format
Multi pack
PED category
IV
Pressure connection size
1/2
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
9 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]
1.1 bar
Regulation range [bar] Pe [min]
0.1 bar
Regulation range [psig] Pe [max]
15.95 psig
Regulation range [psig] Pe [min]
1.45 psig
Reset function
Auto
SCIP dossier no.
e677433d-4ffe-4abe-acc3-ee34f619e34e
Serviceable
No
Type
BCP1
UK RoHS compliance
Yes
Pressure switch type BCP
Pressure switch Type BCP
Danfoss EU 060-9652.AI
Pressure switches & Thermostats
T=C3=9CV 01 202 973-B-16-0027
T=C3=9CV 0879-PESR-B(P)-21484-2-DE
T=C3=9CV 0879-PESR-B(P)-21484-9-DE
T=C3=9CV 0045 202 9120 Z 00468 22 D 000 00
Danfoss UK 060-9687.AC
BCP1 Pressure controller/ Pressure limiter
