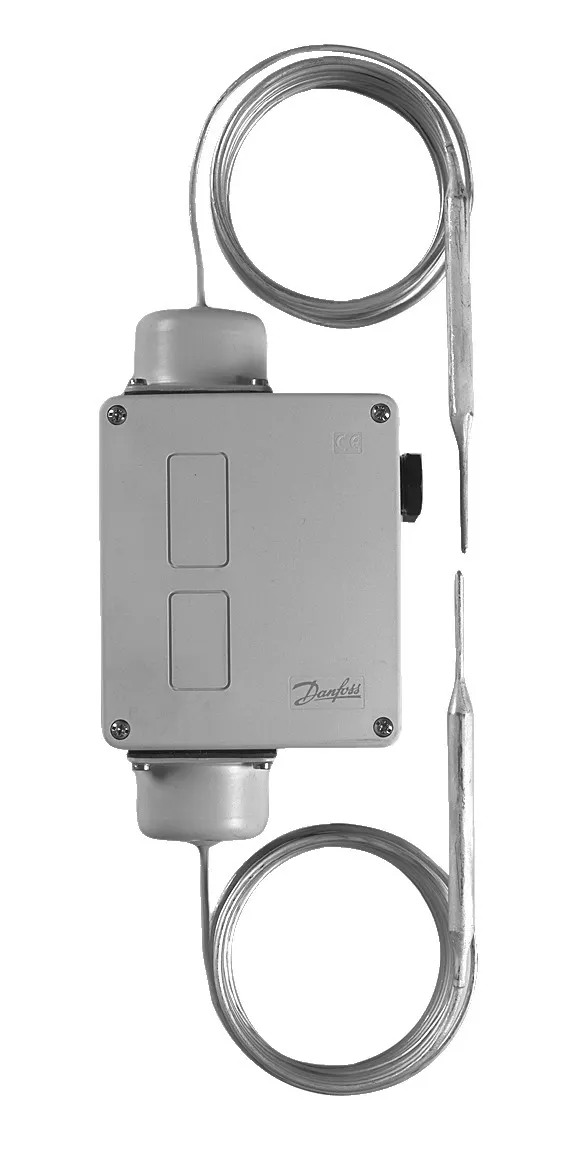

017D003166

Part Number: 017D003166
017D003166
Manufacturer
Danfoss
Part number
017D003166
Category

Product Information

Extended Description

017D003166 Danfoss: Temperature range [°C]: -30 - 40, Reset function: Auto, Contact function: SPDT, Sensor type: Cylindrical Remote Sensor, Capillary tube length [mm]: 5000, Enclosure rating IP: IP66
Gross weight
1.7 Kilogram
Net weight
1.422 Kilogram
Volume
4.715 Liter
EAN
5702428042789
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PZH,RMRS,RoHS,RoHS China,TYSK
Cap. tube length fraction [in]
196 7/8 in
Capillary tube length [mm]
5000 mm
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [°C]
2 °C
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff. temp. setting range [°C] [max]
15 °C
Diff. temp. setting range [°C] [min]
0 °C
Diff. temp. setting range [°F] [max]
59 °F
Diff. temp. setting range [°F] [min]
0 °F
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
65 °C
Max. sensor temperature [°F]
149 °F
Packing format
Multi pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Product accessories
Generic accessories,Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
9 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Relay release time [s]
0 s
Reset function
Auto
SCIP dossier no.
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec
Sensor size (Ø x L) [in]
3/8 x 4 1/4 in
Sensor size (Ø x L) [mm]
9.5 x 110 mm
Sensor type
Cylindrical Remote Sensor
Serviceable
Contact systems
Temperature range [°C] [max]
40 °C
Temperature range [°C] [min]
-30 °C
Temperature range [°F] [max]
105 °F
Temperature range [°F] [min]
-20 °F
Type
RT270
UK RoHS compliance
Yes
