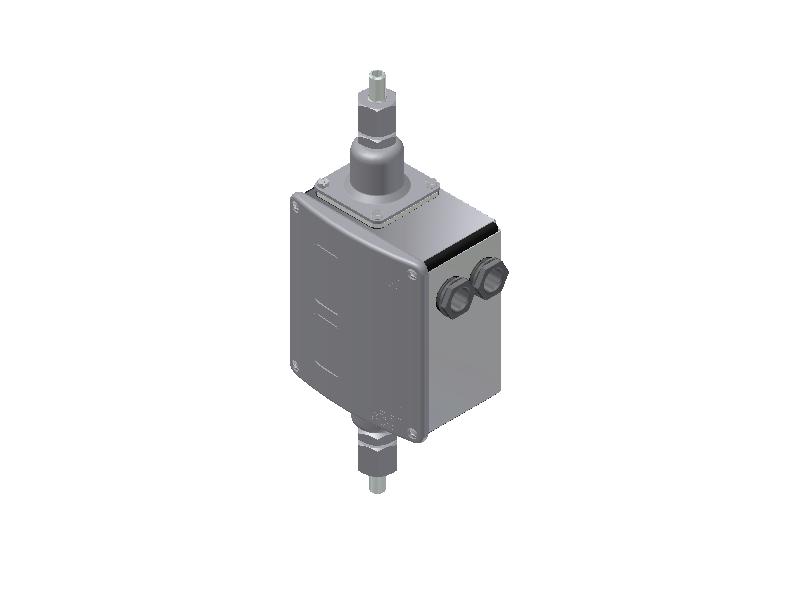

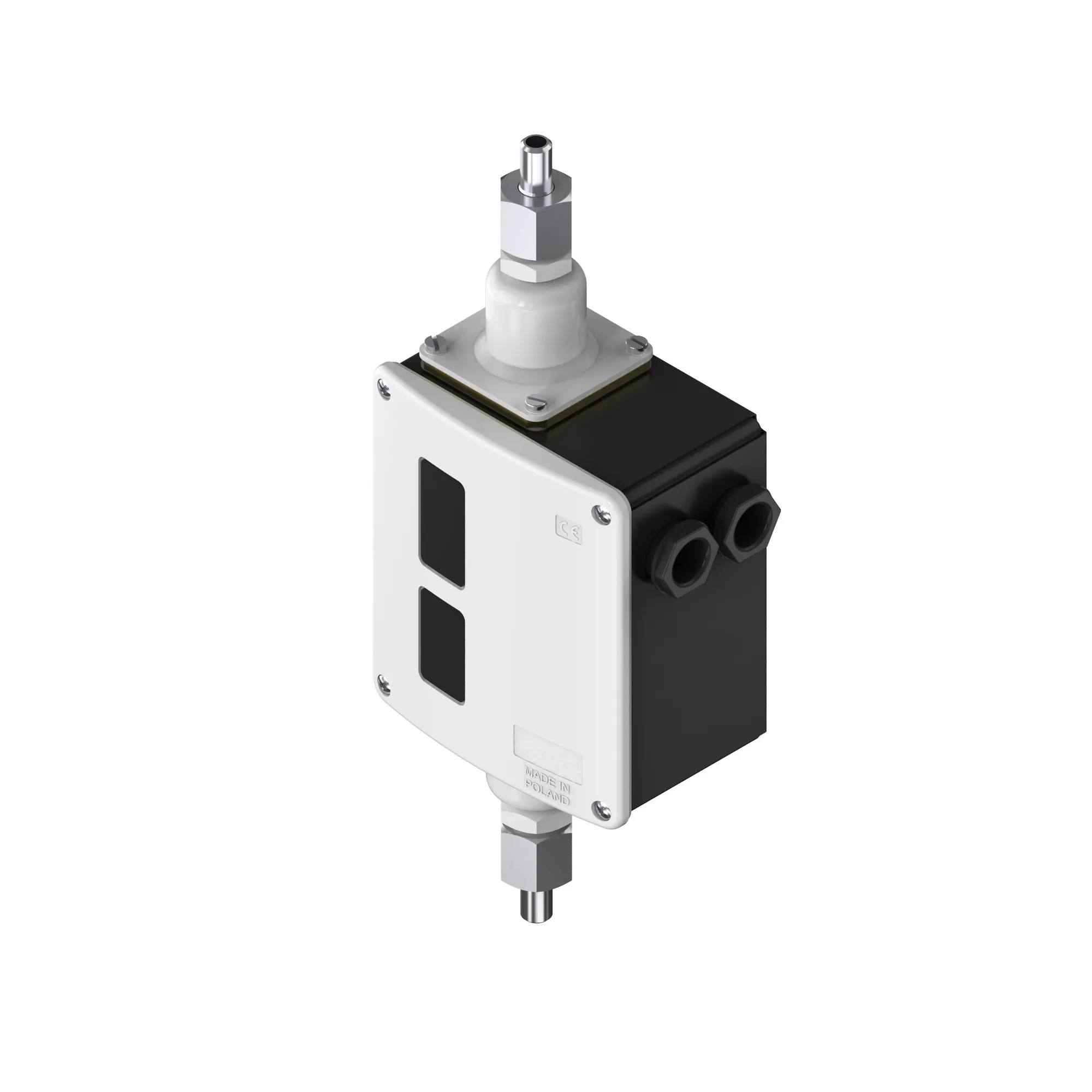

017D003666

Part Number: 017D003666
017D003666
Manufacturer
Danfoss
Part number
017D003666
Category

Product Information

Extended Description

017D003666 Danfoss: Diff.press.setting range [bar]: 0.50 - 4.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 22.0
Gross weight
1.402 Kilogram
Net weight
1.13 Kilogram
Volume
4.715 Liter
EAN
5702428131483
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
ATEX - Cat. 2 - Zone 1,CCC,CE,EAC,LLC CDC EURO-TYSK,PZH,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [bar]
0.3 bar
Contact function
SPDT
Contact rating
Ci=0.5 nF,Ii=0.5 A,Li=0.2 uH,Pi=1 W,Ui=29 V
Contain batteries
No
Diff.press.setting range [bar] [max]
4 bar
Diff.press.setting range [bar] [min]
0.5 bar
Diff.press.setting range [MPa] [max]
0.4 MPa
Diff.press.setting range [MPa] [min]
0.05 MPa
Diff.press.setting range [psi] [max]
58 psi
Diff.press.setting range [psi] [min]
7 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Out of scope
EX Sales text
-20Cta+65C,II 2G Ex ia IIC T6...T1 Gb
In scope of WEEE
Yes
Max. test pressure [bar] Pe
25 bar
Max. test pressure [psig]
362 psig
Max. Working Pressure [bar]
22 bar
Max. Working Pressure [psig]
319 psig
Operat. range LP side [bar] Pe [max]
18 bar
Operat. range LP side [bar] Pe [min]
-1 bar
Operat. range LP side [psig]Pe [max]
261 psig
Operat. range LP side [psig]Pe [min]
-15 psig
Packing format
Multi pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] Pe [max]
18 bar
Pressure range [bar] Pe [min]
-1 bar
Product accessories
Generic accessories,Switches accessories
Product description
Diff. Pressure Switch
Product group
Switches and thermostats
Product Name Description
Differential pressure switch
Quantity per packing format
9 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Relay release time [s]
0 s
Reset function
Auto
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT260AE
UK RoHS compliance
Out of scope
District Heating and Boiler Applications Eex brochure - tough controls for tough environments Pressure switch, RT 1AE, RT 6AEW, RT 6AEB, RT 6AES, RT 116E, RT 5E, RT 117E, RT 112E, RT 113E, RT 121E, RT 260AE, RT 262AE Danfoss EU 060-9657.AG DEMKO 14 ATEX 1406X Rev. 4 IECEx DK/ULD/QAR12.0002/11 IECEx ULD 14.0013X_04 UL21UKEX2021X Pressure switches & Thermostats Danfoss MD 017R9607.AC RINA ELE086320XG-005 DEMKO 12 ATEX Q1209493 Rev. 13 UL21UKQAN2258 Rev. 5 Differential pressure switch, RT260AE RT260AE Diff.Press.Switch RT260AE Diff.Press.Switch
