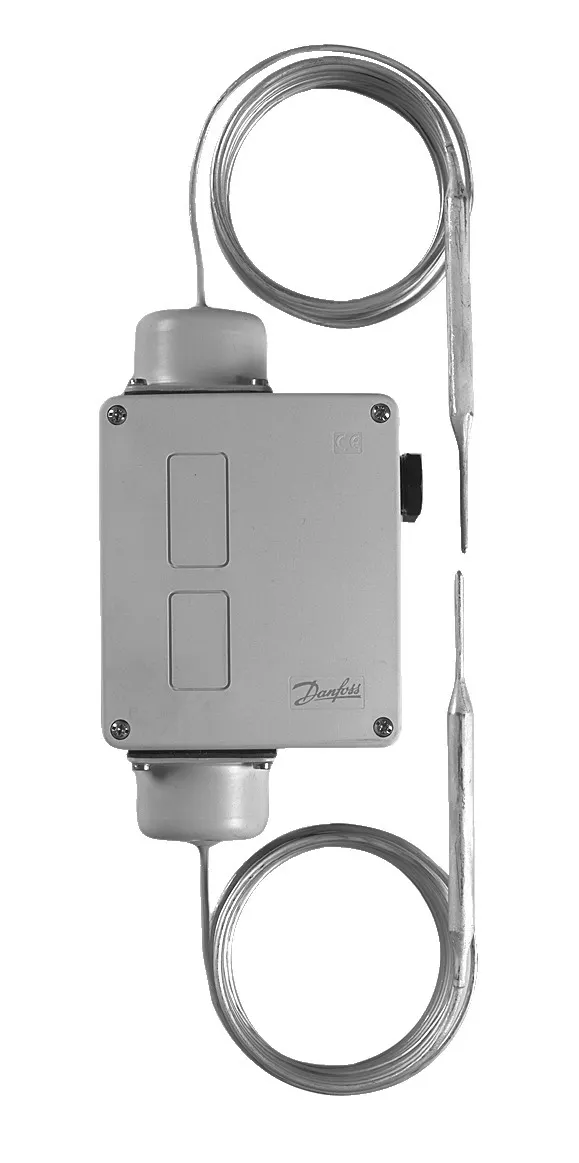

017D004466

Part Number: 017D004466
017D004466
Manufacturer
Danfoss
Part number
017D004466
Category

Product Information

Extended Description

017D004466 Danfoss: Temperature range [°C]: 20 - 100, Reset function: Auto, Contact function: SPDT, Sensor type: Cylindrical Remote Sensor, Capillary tube length [mm]: 10000, Enclosure rating IP: IP66
Gross weight
2.281 Kilogram
Net weight
2.003 Kilogram
Volume
5.087 Liter
EAN
5702428042758
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PZH,RMRS,RoHS,RoHS China,TYSK
Cap. tube length fraction [in]
393 11/16 in
Capillary tube length [mm]
10000 mm
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [°C]
3 °C
Contact function
SPDT
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff. temp. setting range [°C] [max]
20 °C
Diff. temp. setting range [°C] [min]
0 °C
Diff. temp. setting range [°F] [max]
68 °F
Diff. temp. setting range [°F] [min]
0 °F
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Max. sensor temperature [°C]
200 °C
Max. sensor temperature [°F]
392 °F
Packing format
Multi pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Product accessories
Generic accessories,Switches accessories
Product description
Thermostat
Product group
Switches and thermostats
Product Name Description
Thermostat
Quantity per packing format
8 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Relay release time [s]
0 s
Reset function
Auto
SCIP dossier no.
c4c20ce6-4a07-4caa-9394-1e7d8b13ffec
Sensor size (Ø x L) [in]
3/8 x 7 3/16 in
Sensor size (Ø x L) [mm]
9.5 x 182 mm
Sensor type
Cylindrical Remote Sensor
Serviceable
Contact systems
Temperature range [°C] [max]
100 °C
Temperature range [°C] [min]
20 °C
Temperature range [°F] [max]
210 °F
Temperature range [°F] [min]
70 °F
Type
RT271
UK RoHS compliance
Yes
Danfoss Sensing Solutions for the marine sector Switches and thermostats - Industrial Refrigeration product group catalogue Thermostat, Differential thermostat type RT Differential thermostat Types RT 270, RT 271 Thermostat RT 4, RT 11, RT 17, RT 34 Danfoss CCC 2024010305641306 Danfoss EU 060-9650AF Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB Danfoss UK 060-9690.AA RT270/RT271 Differential temperature switch
