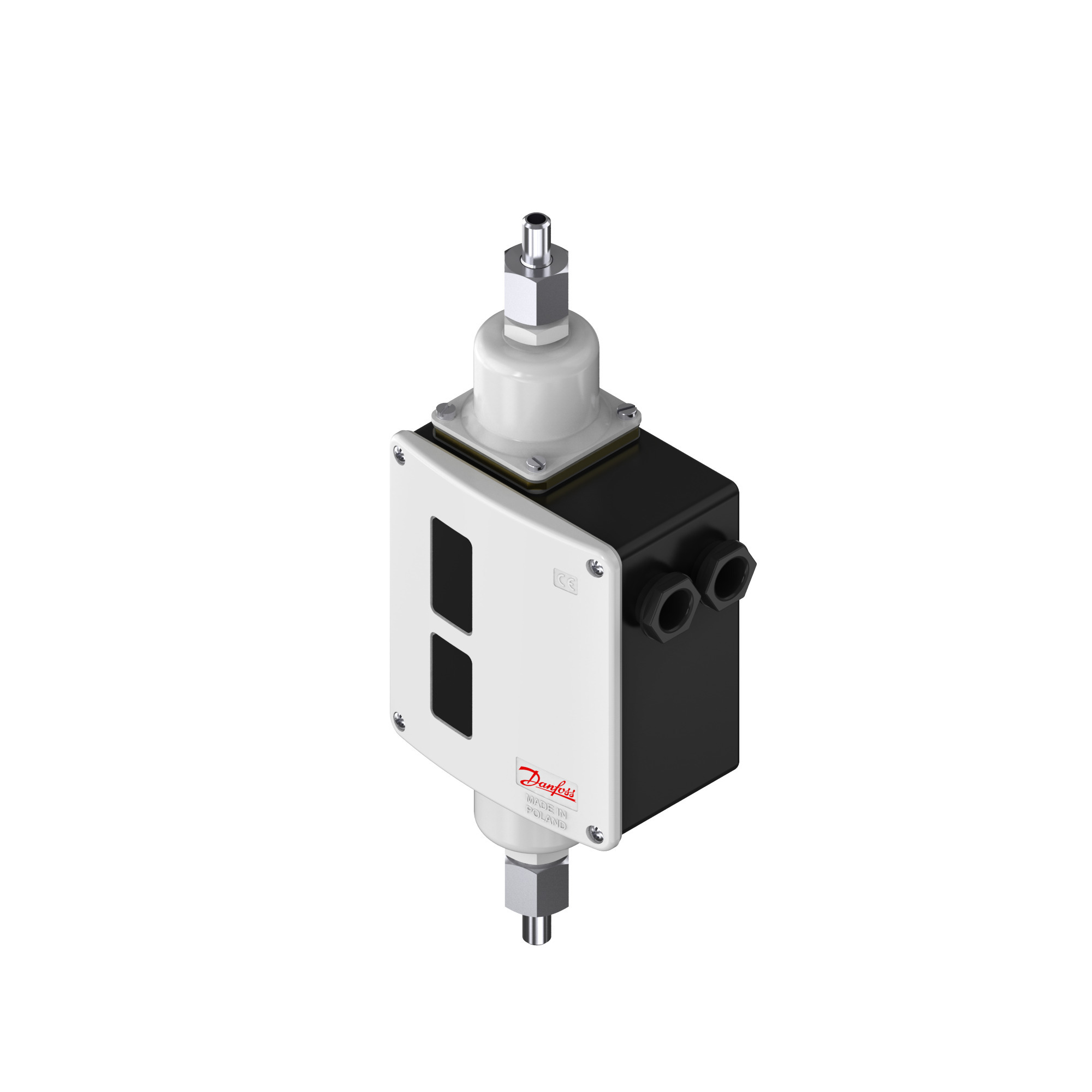

017D004566

Part Number: 017D004566
017D004566
Manufacturer
Danfoss
Part number
017D004566
Category

Product Information

Extended Description

017D004566 Danfoss: Diff.press.setting range [bar]: 0.10 - 1.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 7.0
Gross weight
1.406 Kilogram
Net weight
1.118 Kilogram
Volume
4.715 Liter
EAN
5702428042741
Alarm Signal
Falling
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PZH,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [bar]
0.05 bar
Contact function
SPDT (neutral zone)
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff.press.setting range [bar] [max]
1 bar
Diff.press.setting range [bar] [min]
0.1 bar
Diff.press.setting range [MPa] [max]
0.1 MPa
Diff.press.setting range [MPa] [min]
0.01 MPa
Diff.press.setting range [psi] [max]
14.5 psi
Diff.press.setting range [psi] [min]
1.5 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Factory setting [bar]
0.8 bar
Factory setting [MPa]
0.08 MPa
Factory setting [psig]
11 psig
In scope of WEEE
Yes
Max. neutral zone [bar]
0.23 bar
Max. test pressure [bar] Pe
8 bar
Max. test pressure [psig]
116 psig
Max. Working Pressure [bar]
7 bar
Max. Working Pressure [psig]
101 psig
Operat. range LP side [bar] Pe [max]
6 bar
Operat. range LP side [bar] Pe [min]
-1 bar
Operat. range LP side [psig]Pe [max]
87 psig
Operat. range LP side [psig]Pe [min]
-15 psig
Packing format
Multi pack
Pressure connection notes
Weld nipple d6.5/D10mm
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] Pe [max]
6 bar
Pressure range [bar] Pe [min]
-1 bar
Product accessories
Generic accessories,Switches accessories
Product description
Diff. Pressure Switch
Product group
Switches and thermostats
Product Name Description
Differential pressure switch
Quantity per packing format
9 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Relay release time [s]
0 s
Reset function
Auto
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT263AL
UK RoHS compliance
Yes
District Heating and Boiler Applications Eex brochure - tough controls for tough environments Switches and thermostats - Industrial Refrigeration product group catalogue Pressure switch Type RT Differential pressure switch RT 260A, RT 262A, RT 265A, RT 260AL, RT 262AL, RT 263AL, RT 266AL Danfoss CCC 2024010305641306 Danfoss EU 060-9650AF Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB Danfoss UK 060-9690.AA Differential pressure switch, RT263AL_017D004566, 017D008166 RT263AL Diff.Press.Switch RT263AL Diff.Press.Switch
