017D004866

Part Number: 017D004866
017D004866
Manufacturer
Danfoss
Part number
017D004866
Category

Product Information

Extended Description

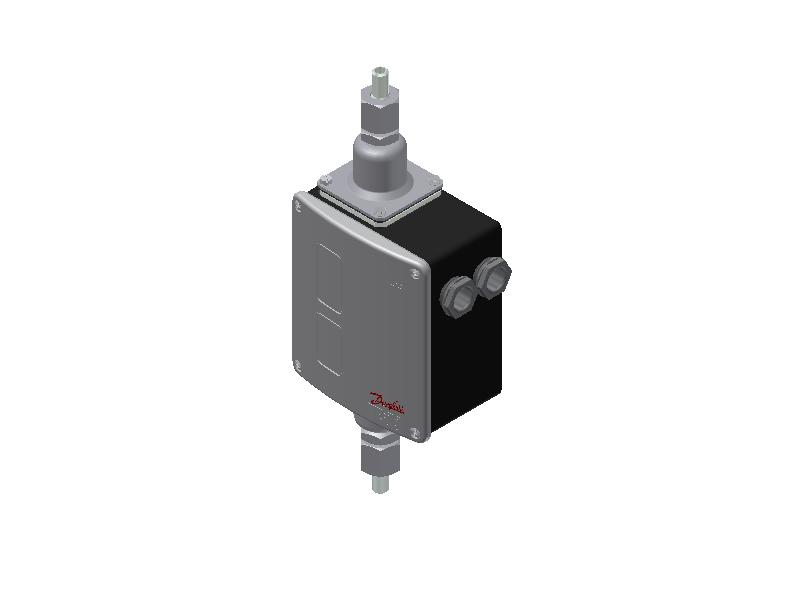

017D004866 Danfoss: Diff.press.setting range [bar]: 0.50 - 4.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 22.0
Gross weight
1.3 Kilogram
Net weight
1.022 Kilogram
Volume
4.715 Liter
EAN
5702428042727
Alarm Signal
Falling
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PZH,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [bar]
0.3 bar
Contact function
SPDT (neutral zone)
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
Diff.press.setting range [bar] [max]
4 bar
Diff.press.setting range [bar] [min]
0.5 bar
Diff.press.setting range [MPa] [max]
0.4 MPa
Diff.press.setting range [MPa] [min]
0.05 MPa
Diff.press.setting range [psi] [max]
58 psi
Diff.press.setting range [psi] [min]
7.3 psi
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Factory setting [bar]
0.14 bar
Factory setting [MPa]
0.014 MPa
Factory setting [psig]
2 psig
In scope of WEEE
Yes
Max. neutral zone [bar]
0.9 bar
Max. test pressure [bar] Pe
25 bar
Max. test pressure [psig]
362 psig
Max. Working Pressure [bar]
22 bar
Max. Working Pressure [psig]
319 psig
Operat. range LP side [bar] Pe [max]
18 bar
Operat. range LP side [bar] Pe [min]
-1 bar
Operat. range LP side [psig]Pe [max]
261 psig
Operat. range LP side [psig]Pe [min]
-15 psig
Packing format
Multi pack
Pressure connection notes
Weld nipple d6.5/D10mm
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] Pe [max]
18 bar
Pressure range [bar] Pe [min]
-1 bar
Product accessories
Generic accessories,Switches accessories
Product description
Diff. Pressure Switch
Product group
Switches and thermostats
Product Name Description
Differential pressure switch
Quantity per packing format
9 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Relay release time [s]
0 s
Reset function
Auto
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT260AL
UK RoHS compliance
Yes
