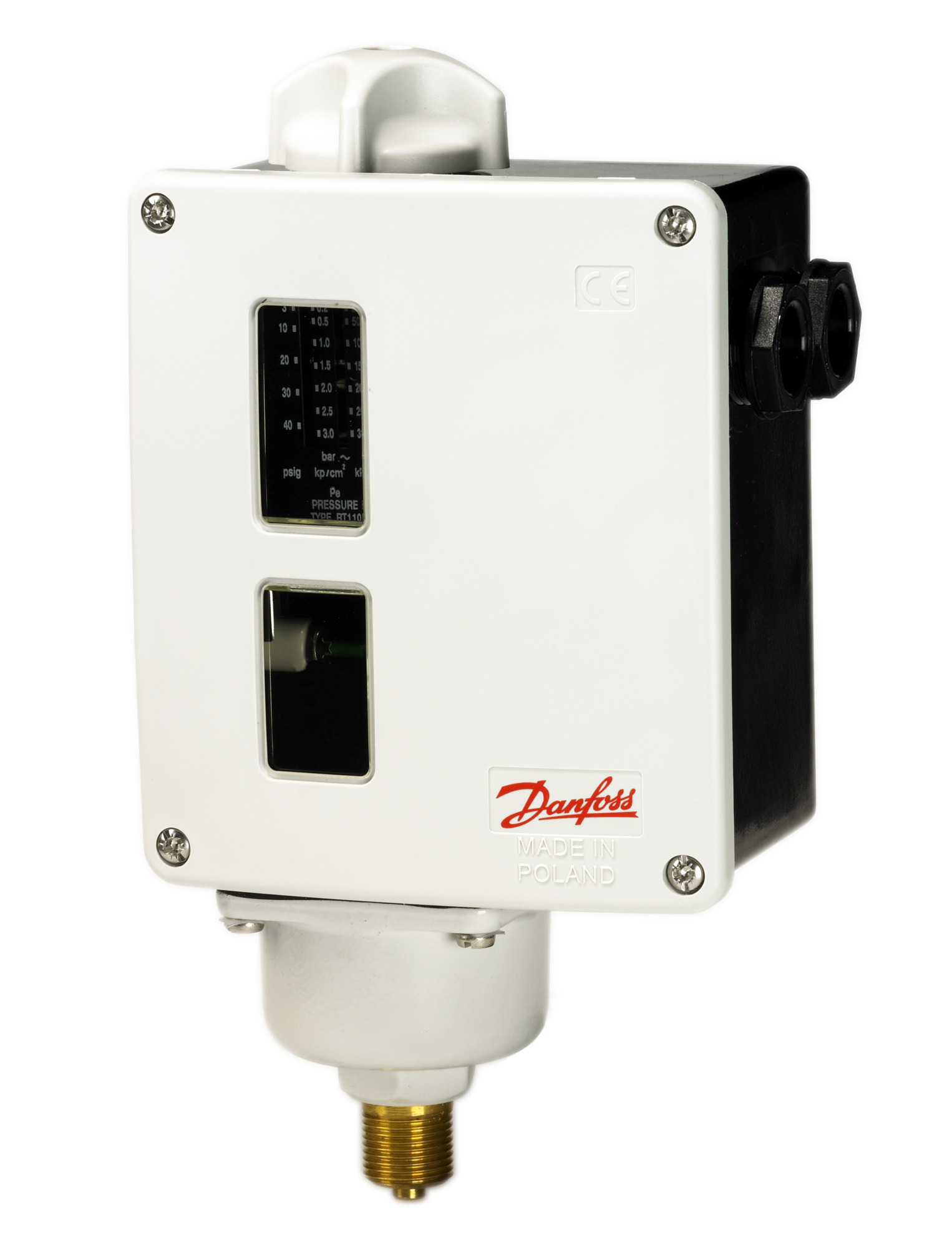

017L001566

Part Number: 017L001566
017L001566
Manufacturer
Danfoss
Part number
017L001566
Category

Product Information

Extended Description

017L001566 Danfoss: Regulation range [bar] Pe: 0.20 - 3.00, Contact function: SPDT (neutral zone), Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 7.0
Gross weight
1.02 Kilogram
Net weight
0.91 Kilogram
Volume
3.093 Liter
EAN
5702428042673
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-50 °C
Ambient temperature range [°F] [max]
158 °F
Ambient temperature range [°F] [min]
-58 °F
Approval
CCC,CE,EAC,LLC CDC EURO-TYSK,LVD,PZH,RMRS,RoHS,RoHS China,TYSK
CE evaluated
Yes
China RoHS compliance
Yes
Contact differential [bar]
0.08 bar
Contact function
SPDT (neutral zone)
Contact rating
AC15=3 A, 400 V,AC1=10 A, 400 V,AC3=4 A, 400 V,DC13=12 W, 220 V,LR=28 A, 400 V
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Female
Electrical connection
Screwed cable entry
Electrical connection size
2xPg 13.5
Electrical connection standard
DIN 40430
Electrical spec. standard
EN 60947-4/-5
EN 60947 electrical properties
Insulation: 400V,Pollution degree: 3,Rated impulse voltage: 4 kV,Short circuit prot, fuse: 10A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.5 mm2,Flex, no ferrules: 0.2-2.5 mm2,Solid/stranded: 0.2-2.5 mm2
Enclosure rating IP
IP66
EU RoHS compliance
Yes
EU RoHS exemption clause
No
In scope of WEEE
Yes
Max. neutral zone [bar]
0.2 bar
Max. test pressure [bar] Pe
8 bar
Max. test pressure [psig]
116 psig
Max. Working Pressure [bar]
7 bar
Max. Working Pressure [psig]
100 psig
Packing format
Multi pack
Pressure connection size
3/8
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product Name Description
Pressure switch
Quantity per packing format
15 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]
3 bar
Regulation range [bar] Pe [min]
0.2 bar
Regulation range [psig] Pe [max]
43.5 psig
Regulation range [psig] Pe [min]
2.9 psig
Reset function
Auto
SCIP dossier no.
54f3e4b2-77e8-4825-a1c1-c3d5ba584171
Serviceable
Contact systems
Type
RT110L
UK RoHS compliance
Yes
Pressure switch Type RT Pressure switch Type RT, Spare parts and accessories Pressure switch, types RT 1AL, RT 5AL, RT 110L, RT 117L, RT 200L Danfoss CCC 2024010305641306 Danfoss EU 060-9650AF Pressure switches & Thermostats Danfoss MD 017R9607.AC Danfoss MD 060-9639.AB Danfoss UK 060-9690.AA RT110 Pressure switch, G3/8, no code RT pressure control housing dimensions
