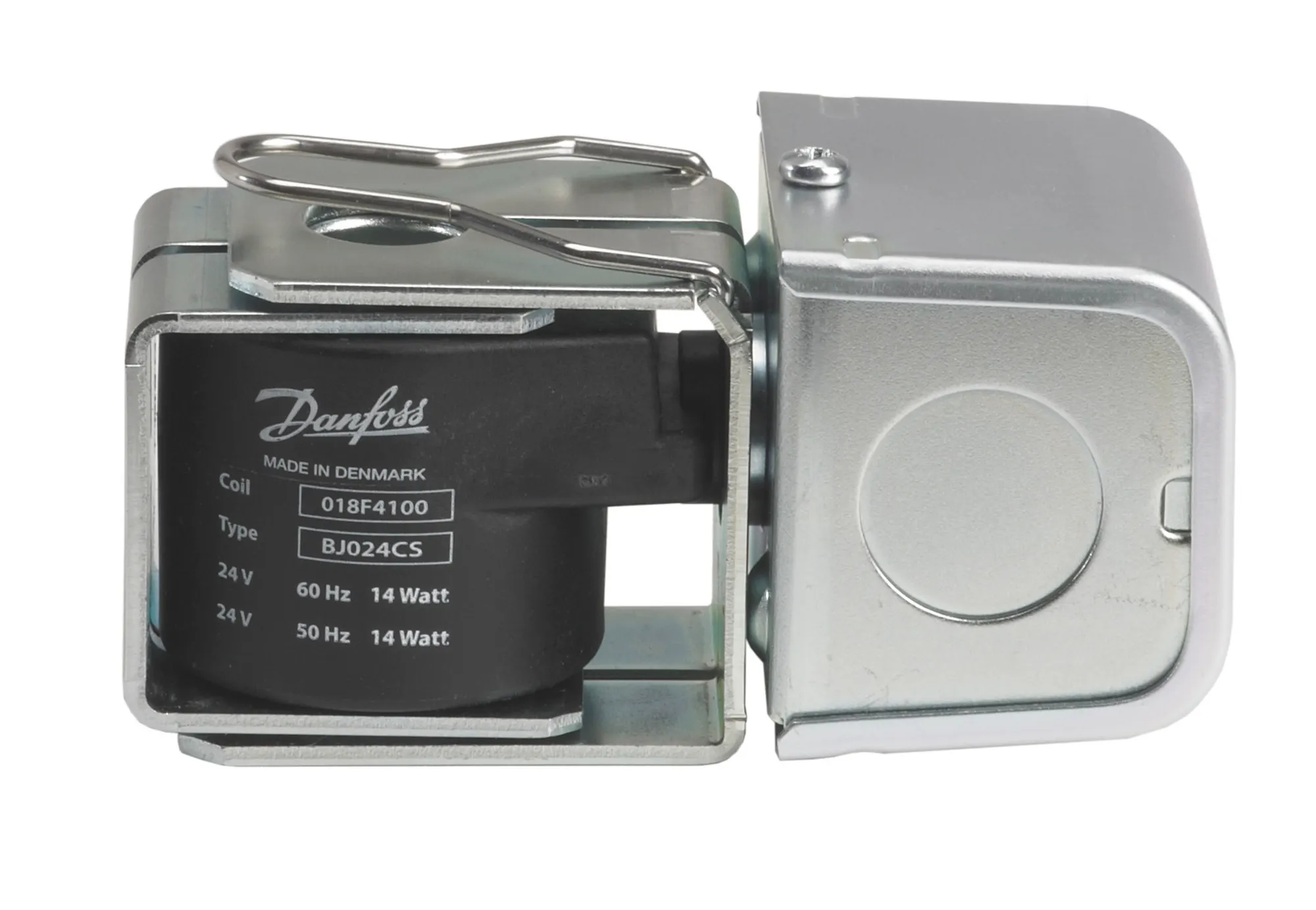

018F4100

Part Number: 018F4100
018F4100
Manufacturer
Danfoss
Part number
018F4100
Category

Product Information

Extended Description

018F4100 Danfoss: Electrical connection: Junction Box, Supply voltage [V] AC: 24, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP30
Gross weight
0.398 Kilogram
Net weight
0.39 Kilogram
Volume
0.297 Liter
EAN
5702428835510
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
C UL US LISTED,LLC CDC TYSK
Cable length [in]
8 in
Cable length [m]
0.2 m
China RoHS compliance
Out of scope
Coil connection
Junction Box
Coil design standard
UL 429
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Black
Compliance
UL 429
Contain batteries
No
Electrical conn. comments
Flying leads
Electrical connection
Junction Box
Electrical connection standard
UL50E CLASS 2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
2
EU RoHS compliance
Out of scope
Frame design
Ext. metal frame
Frequency [Hz]
50/60 Hz
Packing format
Multi pack
Parts Program name
EV210B,EV215B,EV220B 15 - 50,EV220B 6 - 22,EV225B,EV245B,EV250B
Pollution degree
3
Power consumption [W] 50Hz
14 W
Power consumption [W] 60Hz
14 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
35 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
Serviceable
No
Spare part number
018F4100
Supply voltage 50Hz Max [V]
24 V
Supply voltage 60Hz Max [V]
24 V
Supply voltage [V] AC
24 V
Type
BJ024CS
Type designation
BJ024CS
UK RoHS compliance
Out of scope
UL approval file name
MH29671
UL evaluated
Yes
Dual voltage, dual frequency coil brochure 2024 Quick Select Guide - Refrigeration and Air Conditioning Components Supermarket Catalog 2020 Solenoid coil type BJ, BX, BT and BU Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP Solenoid coil for electric expansion and solenoid valves with UL-approval Types BJ and BX UL MH29671 BJ024CS coil, with Junction box connection Solenoid Coil BJ DIM018F4050 WEB018F4050
