018F4519
Part Number: 018F4519
Product Information
Extended Description

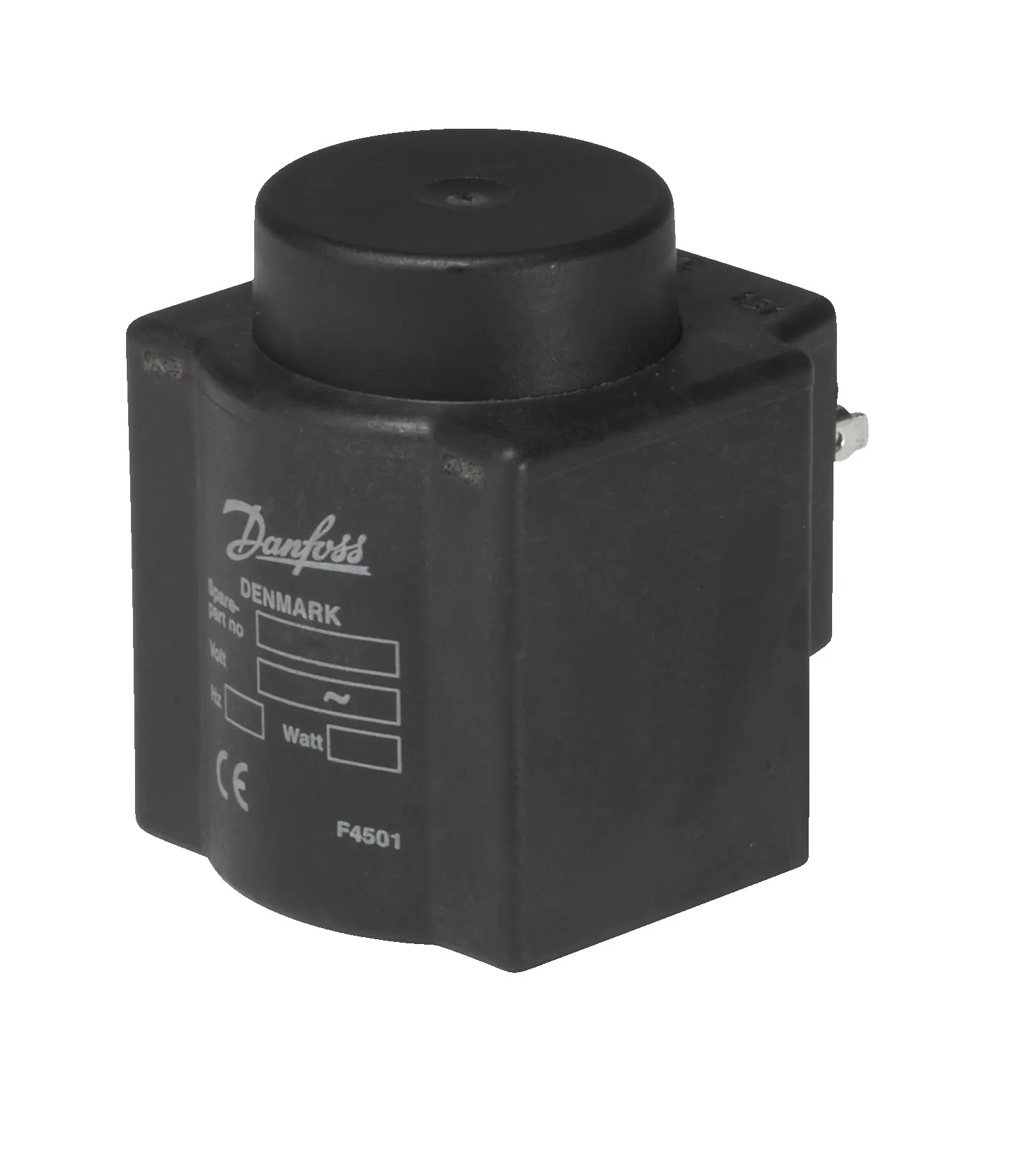

018F4519 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 110 - 120, Frequency [Hz]: 60 Hz, Enclosure rating IP: IP65
Gross weight
0.28 Kilogram
Net weight
0.178 Kilogram
Volume
0.281 Liter
EAN
5702428457040
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-40 °F
Application
Steam applications
Approval
CE,EAC,LLC CDC TYSK,UKCA,cURus
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Black
Contain batteries
No
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP65
Enclosure rating Nema (~)
4
EU RoHS compliance
Out of scope
Frequency [Hz]
60 Hz
Packing format
Multi pack
Parts Program name
EV215B,EV225B,EV245B
Power consumption 60Hz [VA]
19 VA
Power consumption [W] 60Hz
13.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F4519
Supply voltage 60Hz Max [V]
120 V
Supply voltage 60Hz Min [V]
110 V
Supply voltage [V] AC [max]
120 V
Supply voltage [V] AC [min]
110 V
Type
BQ120BS
Type designation
BQ120BS
UK RoHS compliance
Out of scope
UL evaluated
Yes
042N1256
Spare part, 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Cable plug
