018F4704

Part Number: 018F4704
018F4704
Manufacturer
Danfoss
Part number
018F4704
Category

Product Information

Extended Description

018F4704 Danfoss: Electrical connection: Cable, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP65
Gross weight
1.028 Kilogram
Net weight
0.923 Kilogram
Volume
3.391 Liter
EAN
5702428890519
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
45 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
113 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
ATEX - Cat. 2 - Zone 1,CCC
Cable length [in]
354 in
Cable length [m]
9 m
China RoHS compliance
Out of scope
Coil connection
Cable
Coil fastening
Clip-on
Colour
Blue
Conductor area [mm2]
3 x 0.75 mm2
Contain batteries
No
Electrical conn. comments
Earth conn. wiring 4 mm2
Electrical connection
Cable
Enclosure rating IP
IP65
Enclosure rating Nema (~)
4
EU RoHS compliance
Out of scope
EX Sales text
-40°C Ta +45°C,II 2G Ex mb IIC T4 Gb
Frequency [Hz]
50/60 Hz
Packing format
Multi pack
Parts Program name
EV220B 15 - 50,EV220B 6 - 22,EV224B,EV227B,EV250B
Power consumption 50Hz [VA]
18 VA
Power consumption 60Hz [VA]
16 VA
Power consumption [W] 50Hz
9 W
Power consumption [W] 60Hz
8.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description

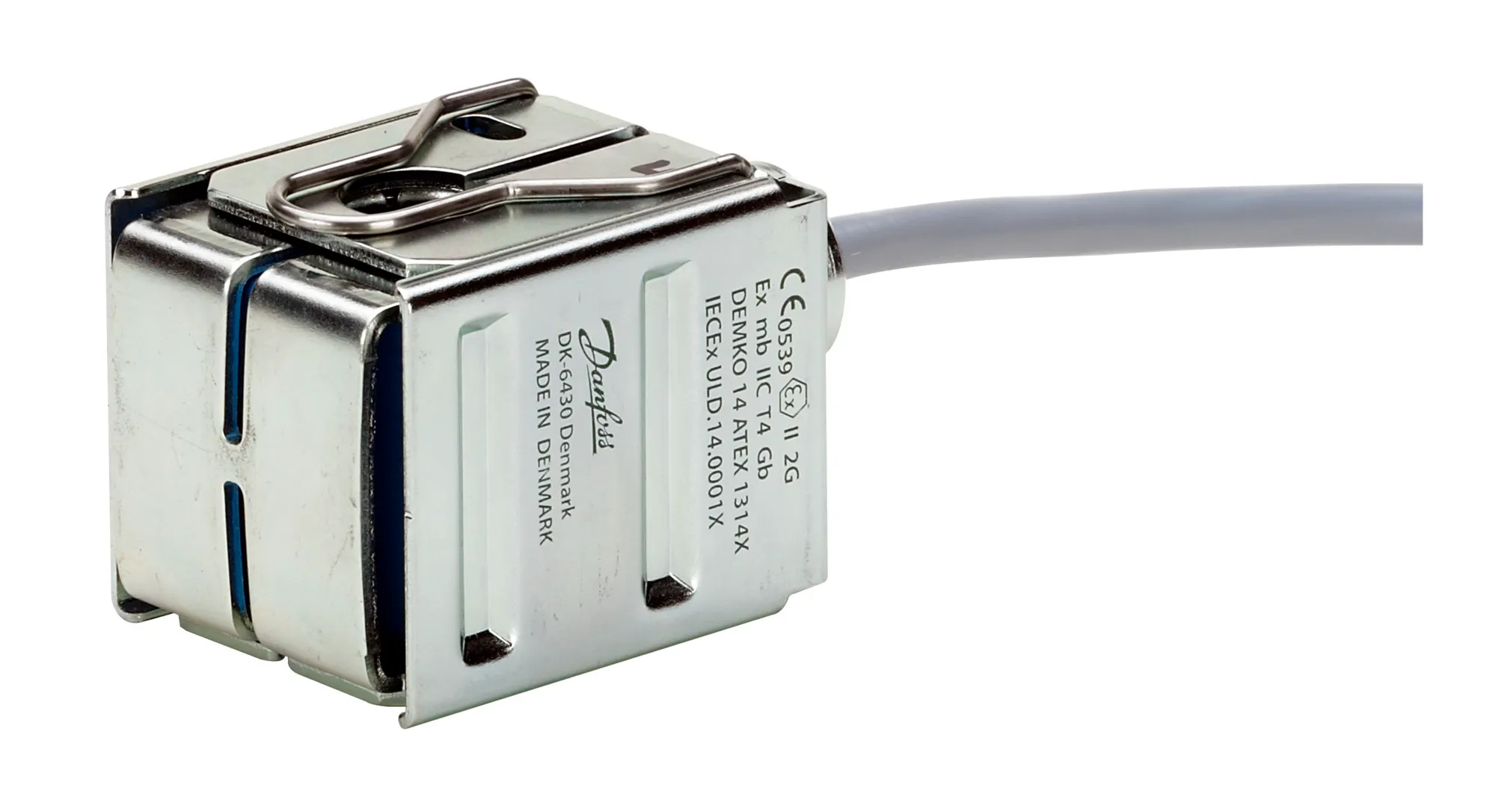

Solenoid coil
Quantity per packing format
12 pc
REACH Candidate List substances
No
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
Serviceable
No
Supply voltage 50Hz Max [V]
230 V
Supply voltage 60Hz Max [V]
240 V
Type
BZ240C
Type designation
BZ240C
UK RoHS compliance
Out of scope
Solenoid coil Type BZ Solenoid coil for control in potentially explosive areas Type BZ Danfoss EU-UK 032R9255.AI DEMKO 14 ATEX 1314X Rev.7 IECEx DK/ULD/QAR12.0002/11 IECEx ULD 14.0001X Rev. 7 KGS 16-0768 KTL 2019-049811-01-1 UL21UKEX2020X Rev.1 DEMKO 12 ATEX Q1209493 Rev. 13 UL21UKQAN2258 Rev. 5 BZ Solenoid coil for control in potentially explosive areas EV220B solenoid valve with BZ coil
