018F6176

Part Number: 018F6176
018F6176
Manufacturer
Danfoss
Part number
018F6176
Category

Product Information

Extended Description

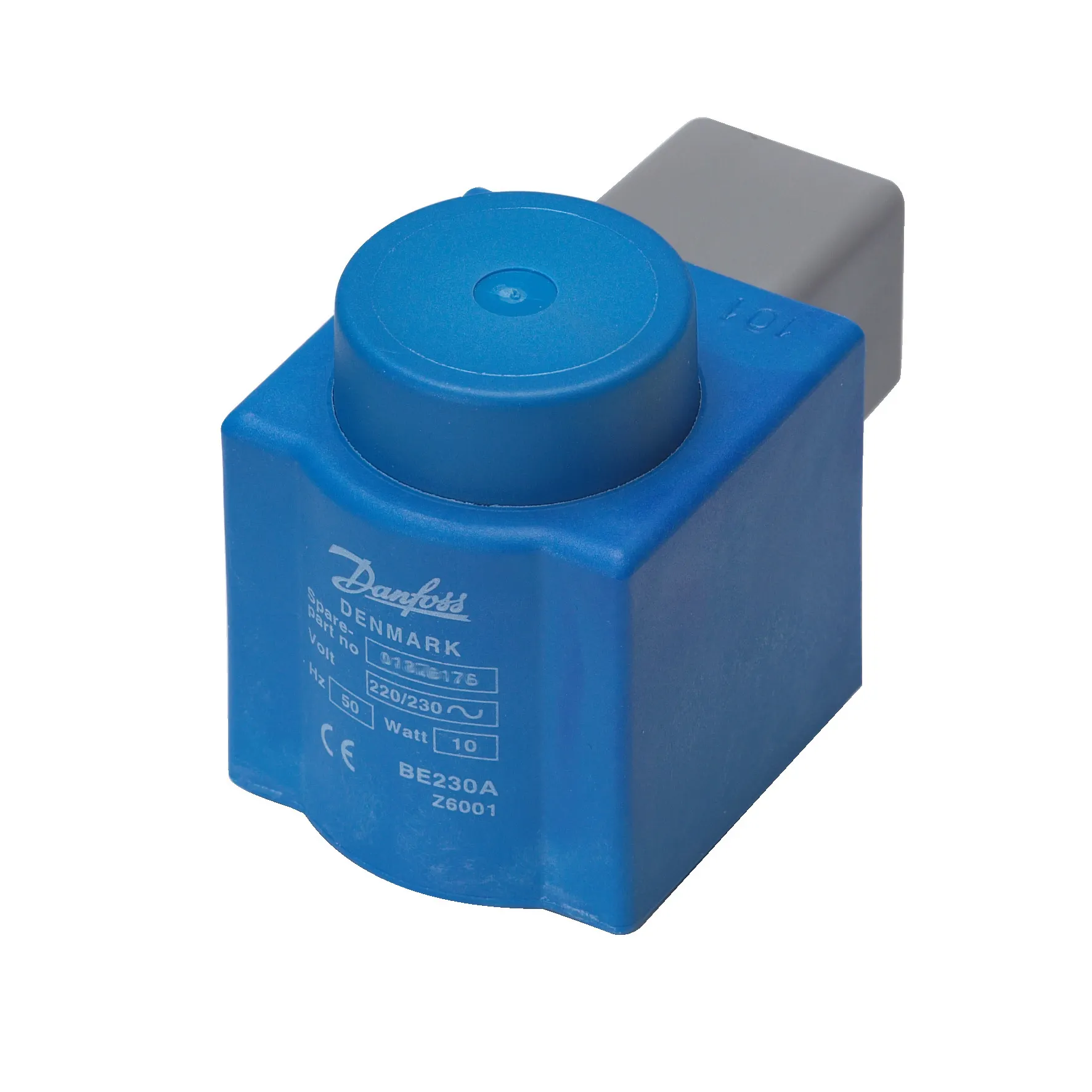

018F6176 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP20
Gross weight
0.288 Kilogram
Net weight
0.271 Kilogram
Volume
0.266 Liter
EAN
5702428024402
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
80 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
175 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP20
EU RoHS compliance
Out of scope
Frequency [Hz]
50 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts included
Cap
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV227B,EV250B,EV251B
Power cons Dual 50Hz [VA]
19 mW
Power cons Dual 50Hz [W]
11 W
Power consumption 50Hz [VA]
22 VA
Power consumption [W] 50Hz
12 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F6176
Supply voltage 50Hz Max [V]
230 V
Supply voltage 50Hz Min [V]
220 V
Supply voltage [V] AC [max]
230 V
Supply voltage [V] AC [min]
220 V
Type
BE230AS
Type designation
BE230AS
UK RoHS compliance
Out of scope
