018F6730

Part Number: 018F6730
018F6730
Manufacturer
Danfoss
Part number
018F6730
Category

Product Information

Extended Description

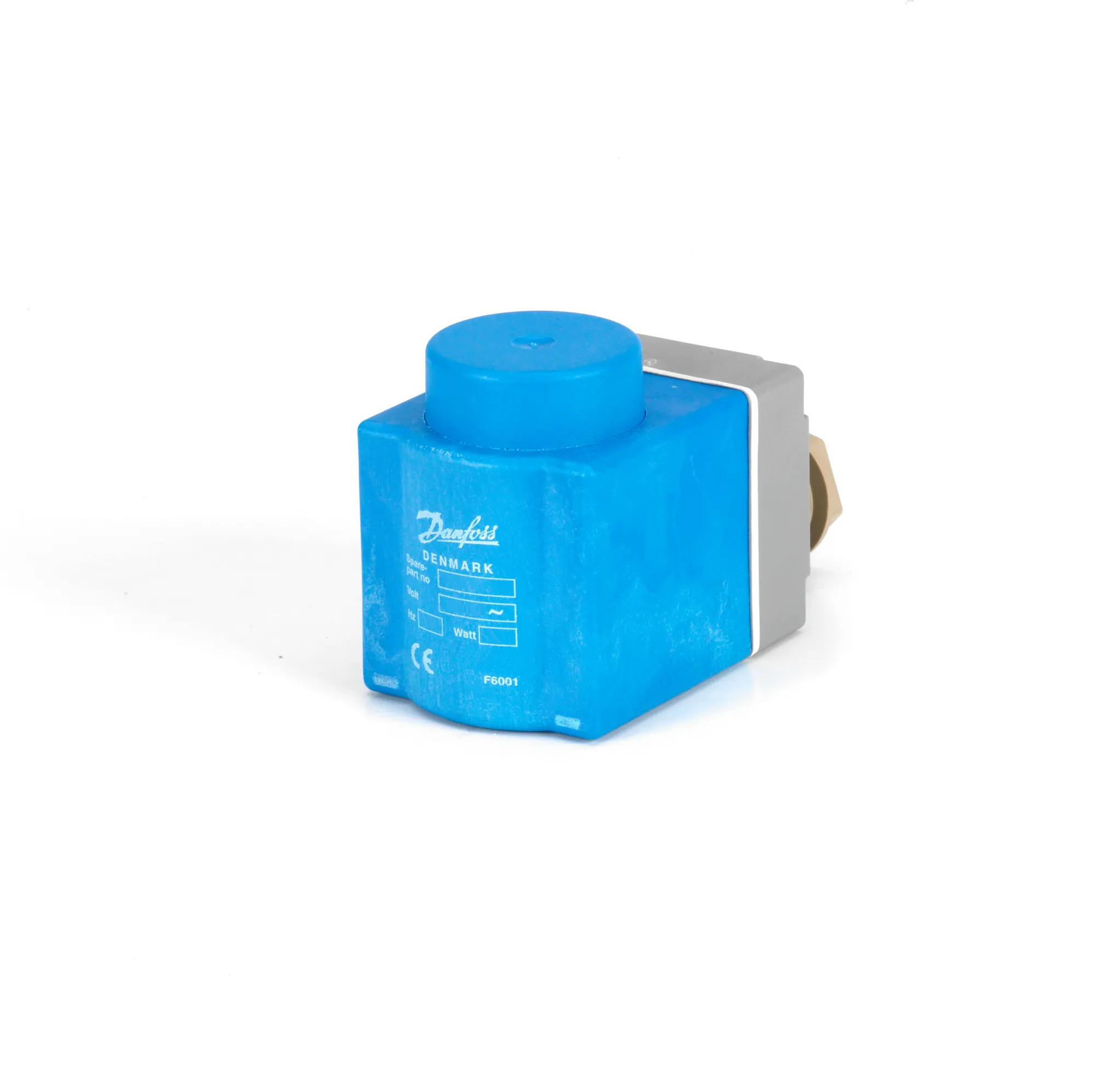

018F6730 Danfoss: Electrical connection: Terminal box, Supply voltage [V] AC: 110, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP67, Packing format: Multi pack
Gross weight
0.334 Kilogram
Net weight
0.305 Kilogram
Volume
0.319 Liter
EAN
5702428023139
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
LLC CDC TYSK,CE,EAC,UKCA
Cable diameter [mm] [max]
11 mm
Cable diameter [mm] [min]
6 mm
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
Connection Box
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Conductor area [mm2]
0.75 - 1.5 mm2
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Terminal box
Electrical connection size
Pg 13.5
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Identical product
018F8730
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV227B,EV250B,EV251B
Power consumption 50Hz [VA]
28 VA
Power consumption 60Hz [VA]
22 VA
Power consumption [W] 50Hz
15 W
Power consumption [W] 60Hz
13 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F6192
Supply voltage 50Hz Max [V]
110 V
Supply voltage 60Hz Max [V]
110 V
Supply voltage [V] AC
110 V
Type
BE110CS
Type designation
BE110CS
UK RoHS compliance
Out of scope
Solenoid coil type BB, BE, BF, BG, and BN Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP Solenoid coil Types BB, BE, BF, BG, and BN Danfoss EU-UK 033F0688.AJ BE Coil - Connection box BE Coil_RFA EV250B_DN10-22_DZR Brass_BE Coil_RFA EV250BW_DN10-22_Eco Brass_BE Coil_RFA EV220BW_DN15-50_Eco Brass_BE Coil_RFA EV220BW_DN15-50_SS_BE Coil_RFA
