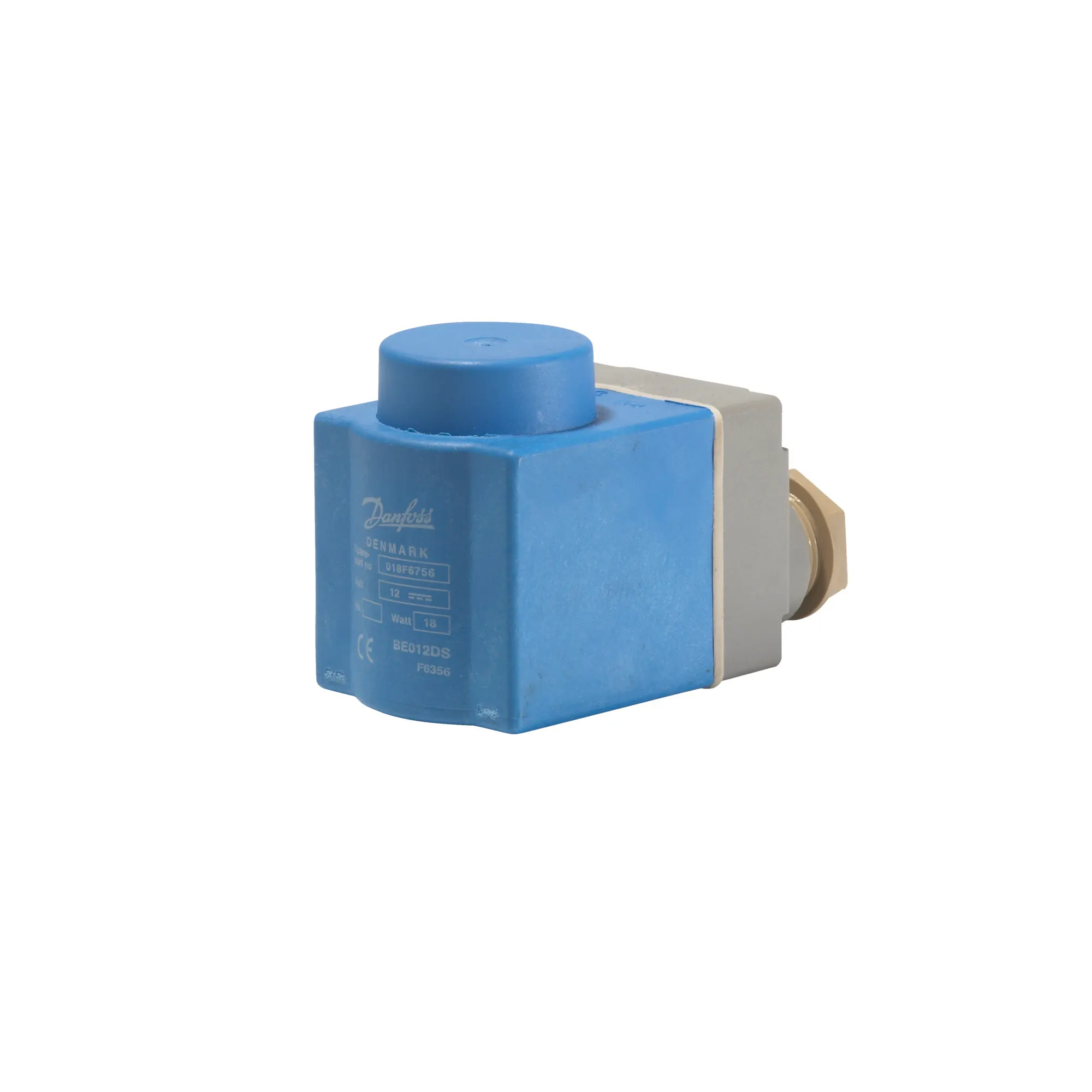

018F6756
Part Number: 018F6756
Product Information
Extended Description
018F6756 Danfoss: Electrical connection: Terminal box, Enclosure rating IP: IP67
Gross weight
0.34 Kilogram
Net weight
0.311 Kilogram
Volume
0.318 Liter
EAN
5702428033626
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
Cable diameter [mm] [max]
11 mm
Cable diameter [mm] [min]
6 mm
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
Connection Box
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Conductor area [mm2]
0.75 - 1.5 mm2
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Terminal box
Electrical connection size
Pg 13.5
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV227B,EV250B,EV251B,EV258B
Power consumption [W] DC
15 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F6756
Supply voltage [V] DC
12 V
Type
BE012DS
Type designation
BE012DS
UK RoHS compliance
Out of scope
