018F6807

Part Number: 018F6807
018F6807
Manufacturer
Danfoss
Part number
018F6807
Category

Product Information

Extended Description

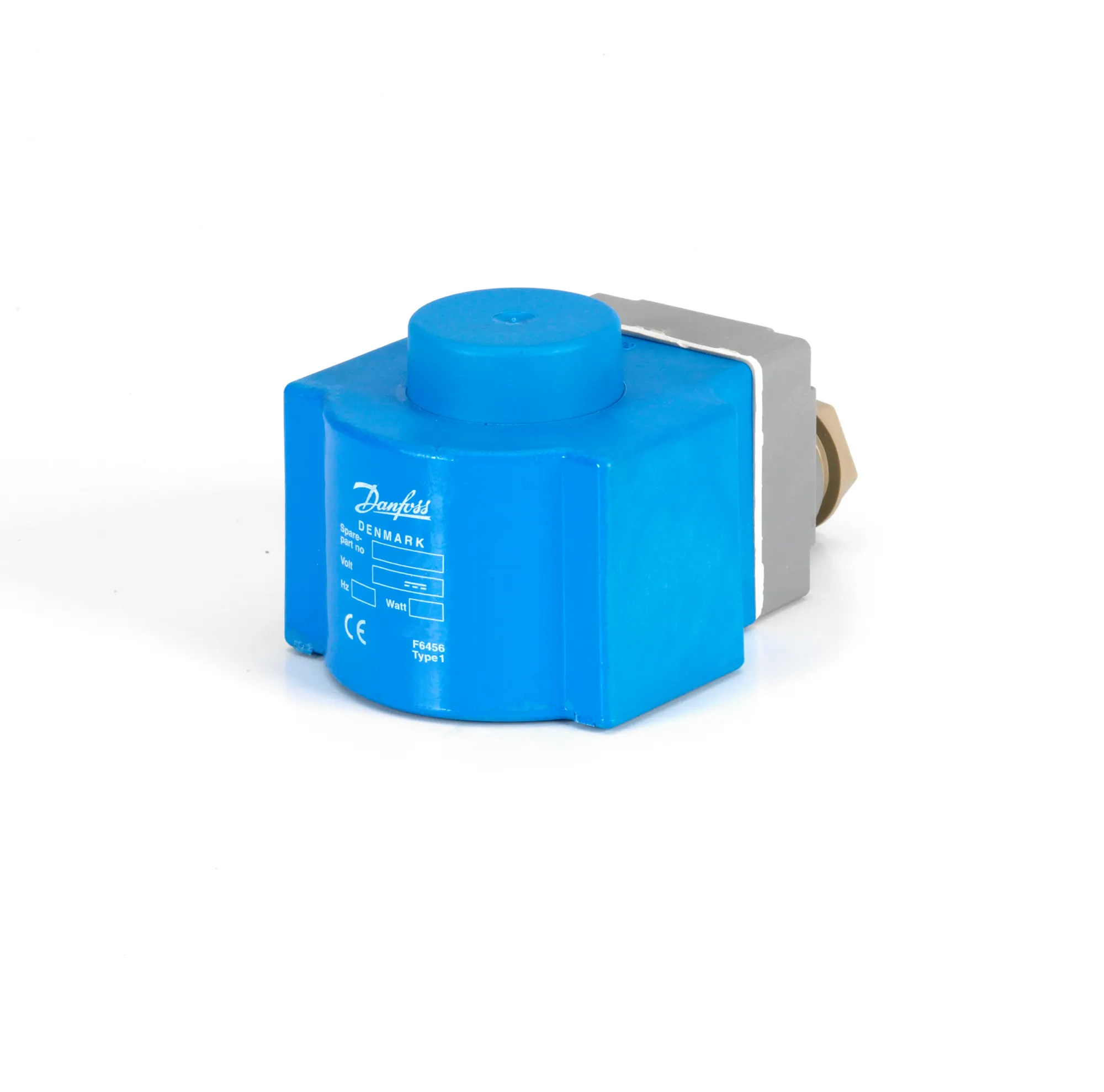

018F6807 Danfoss: Electrical connection: Terminal box, Supply voltage [V] AC: 24, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP67
Gross weight
0.516 Kilogram
Net weight
0.488 Kilogram
Volume
0.561 Liter
EAN
5702428027601
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
80 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
175 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
Connection Box
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Terminal box
Electrical connection size
Pg 13.5
Electrical connector
Screwed cable entry
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Frequency [Hz]
50 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV250B
Power consumption 50Hz [VA]
21 VA
Power consumption [W] 50Hz
11 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F6807
Supply voltage 50Hz Max [V]
24 V
Supply voltage [V] AC
24 V
Type
BG024AS
Type designation
BG024AS
UK RoHS compliance
Out of scope
Electric expansion valves, Type AKVA 10, AKVA 15 & AKVA 20 Solenoid coil type BB, BE, BF, BG, and BN Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP Valve station, type ICF 15/20 EVRAT Solenoid coil Types BB, BE, BF, BG, and BN Danfoss EU-UK 033F0688.AJ BG coil - connection box
