018F6816
Part Number: 018F6816
Product Information
Extended Description

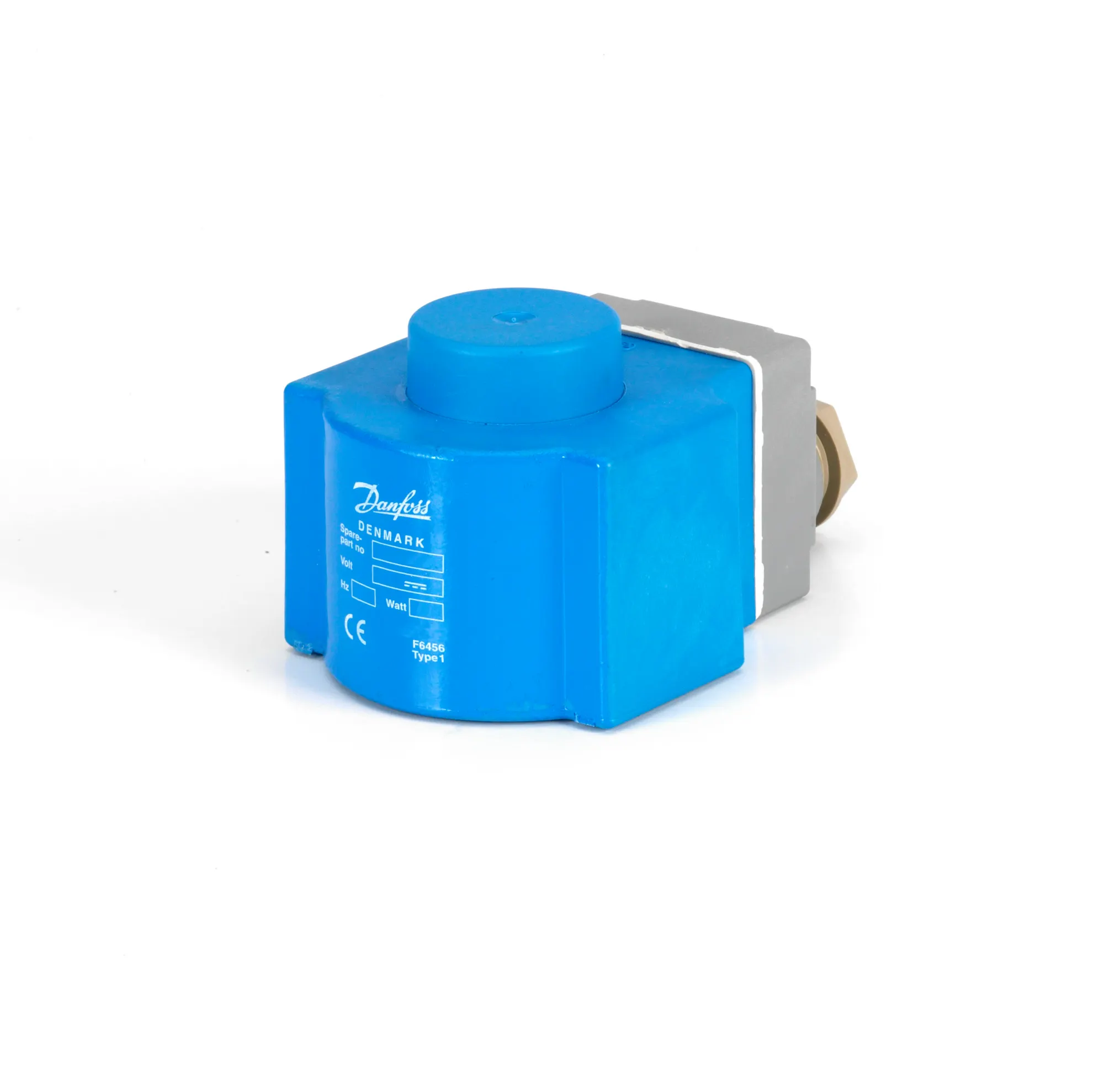

018F6816 Danfoss: Electrical connection: Terminal box, Supply voltage [V] AC: 110, Frequency [Hz]: 60 Hz, Enclosure rating IP: IP67
Gross weight
0.516 Kilogram
Net weight
0.492 Kilogram
Volume
0.561 Liter
EAN
5702428453899
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
80 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
175 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
Connection Box w. LED
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. comments
Status LED on coil
Electrical connection
Terminal box
Electrical connection size
Pg 13.5
Electrical connector
Screwed cable entry
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Frequency [Hz]
60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Power consumption 60Hz [VA]
29 VA
Power consumption [W] 60Hz
16 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F6813
Supply voltage 60Hz Max [V]
110 V
Supply voltage [V] AC
110 V
Type
BG110BS
Type designation
BG110BS
UK RoHS compliance
Out of scope
