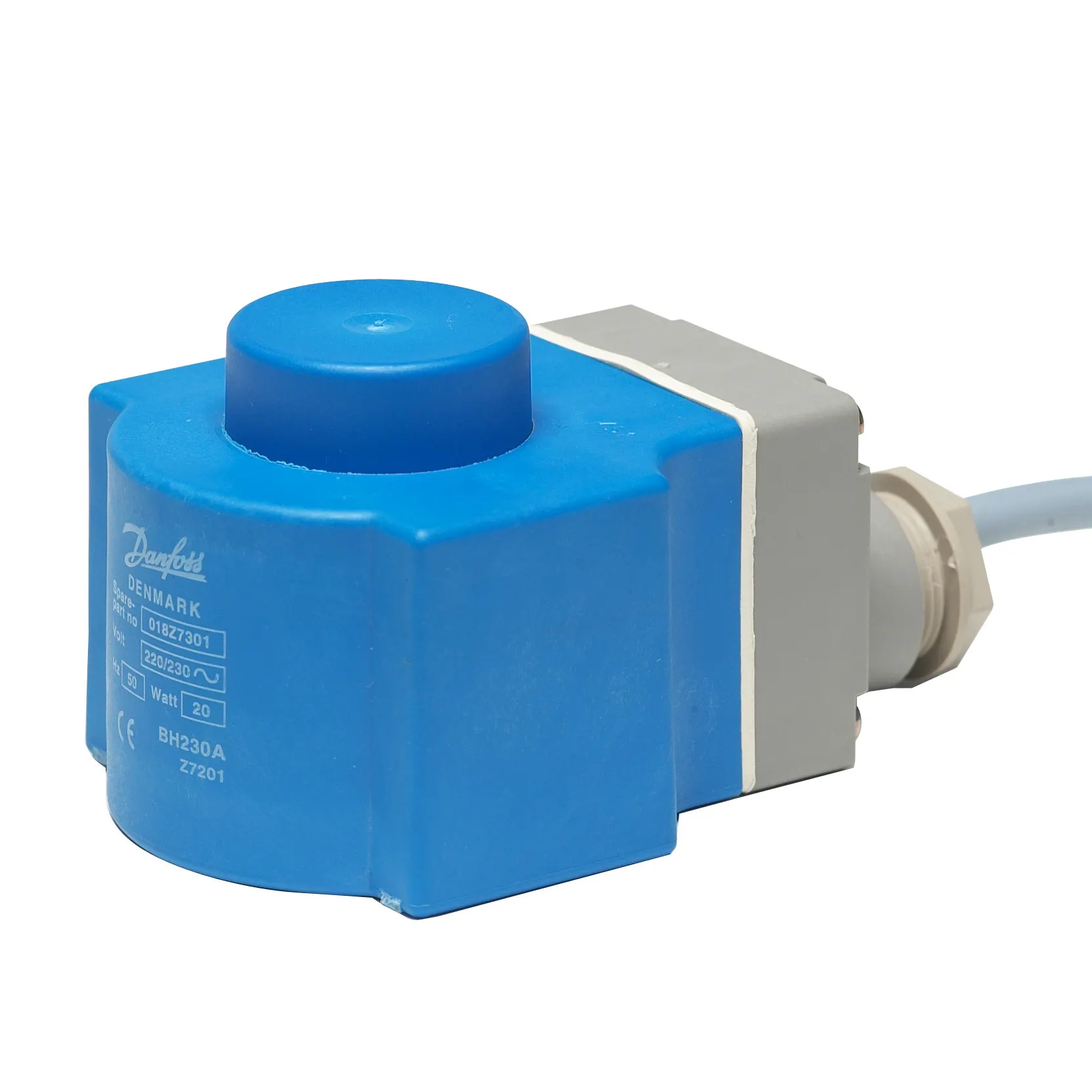

018F7301

Part Number: 018F7301
018F7301
Manufacturer
Danfoss
Part number
018F7301
Category

Product Information

Extended Description

018F7301 Danfoss: Electrical connection: Terminal box, Supply voltage [V] AC: 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP67
Gross weight
0.684 Kilogram
Net weight
0.64 Kilogram
Volume
0.854 Liter
EAN
5702423182435
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
Junction Box with rectifier
Coil fastening
Clip-on
Colour
Blue
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. comments
With rectifier
Electrical connection
Terminal box
Electrical connection size
Pg 13.5
Electrical connector
Screwed cable entry
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Further information
Hum-free
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV250B,EV251B
Power consumption 50Hz [VA]
24 VA
Power consumption 60Hz [VA]
24 VA
Power consumption [W] 50Hz
22 W
Power consumption [W] 60Hz
22 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F7301
Supply voltage 50Hz Max [V]
230 V
Supply voltage 60Hz Max [V]
230 V
Supply voltage [V] AC
230 V
Type
BH230CS
Type designation
BH230CS
UK RoHS compliance
Out of scope
032U7181
Solenoid valve, EV220B, Function: NO, G, 3/4, 7.500 m³/h, NBR
032U8362
Solenoid valve, EV224B, Function: NC, G, 3/4, 8.000 m³/h, NBR
032U8503
Solenoid valve, EV220B, Function: NC, G, 1 1/4, 18.000 m³/h, EPDM
032U8507
Solenoid valve, EV220B, Function: NC, G, 3/4, 8.000 m³/h, FKM
016D3330
Solenoid valve, EV220B, Function: NC, Flange, 2 1/2 in, 50.000 m³/h, NBR
016D3331
Solenoid valve, EV220B, Function: NC, Flange, 3 in, 75.000 m³/h, NBR
032H8041
Solenoid valve, EV210A, Function: NC, G, 1/4, 0.220 m³/h, FKM
032U1200
Solenoid valve, EV210B, Function: NC, G, 1/8, 0.080 m³/h, NBR
032U145802
Solenoid valve, EV210B, Function: NC, G, 1/8, 0.080 m³/h, FKM
032U147002
Solenoid valve, EV210B, Function: NC, G, 1/4, 0.300 m³/h, FKM
