018F7351

Part Number: 018F7351
018F7351
Manufacturer
Danfoss
Part number
018F7351
Category

Product Information

Extended Description

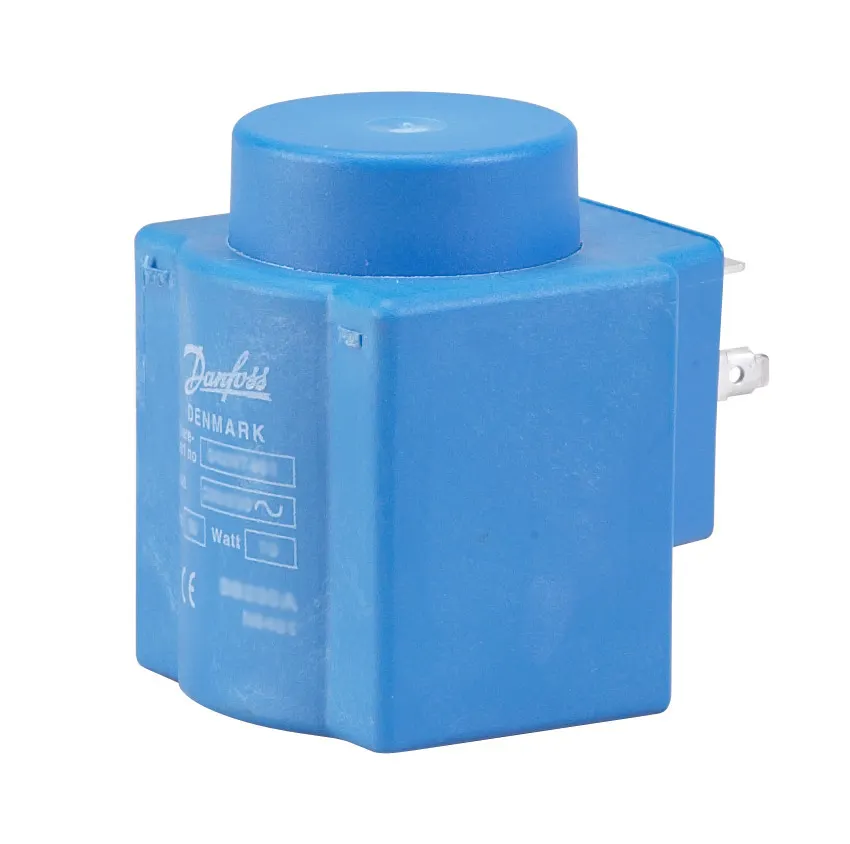

018F7351 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 230, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP00
Gross weight
0.274 Kilogram
Net weight
0.252 Kilogram
Volume
0.266 Liter
EAN
5702428026475
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
80 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
176 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EPD available
Yes
EU RoHS compliance
Out of scope
Frequency [Hz]
50 Hz
Identical product
018F8351
In scope of WEEE
Yes
Manufacturer's name
Danfoss
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV250B,EV251B,EV310B
Power consumption 50Hz [VA]
19 VA
Power consumption [W] 50Hz
11 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F7351
Supply voltage 50Hz Max [V]
230 V
Supply voltage [V] AC
230 V
Type
BB230AS
Type designation
BB230AS
UK RoHS compliance
Out of scope
042N0185
Accessory ET20M Electronic Timer
042N0263
Spare part, 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Cable plug
042N0265
Spare part, 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Cable plug
042N1256
Spare part, 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Cable plug
042N1278
Spare part, 042N Coil Type B; 018F Coil Type B; 018Z Coil Type B, Cable plug
Solenoid coil type BB, BE, BF, BG, and BN Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP Valve station, type ICF 15/20 EVRAT Solenoid coil Type BB, BG, BQ, BT, BU, BY and BN Solenoid coil Types BB, BE, BF, BG, and BN EPD Solenoid valve (132U2003) EV221BW with Solenoid Coil (018F7351) EPD Solenoid Valve EV221BW (132U1003) with Solenoid Coil BB230AS (018F7351) Danfoss EU-UK 033F0688.AJ High performance coil BB230AS Coil BB Coil_RFA EV250B_DN10-22_DZR Brass_BB Coil_RFA EV250BW_DN10-22_Eco Brass_BB Coil_RFA
