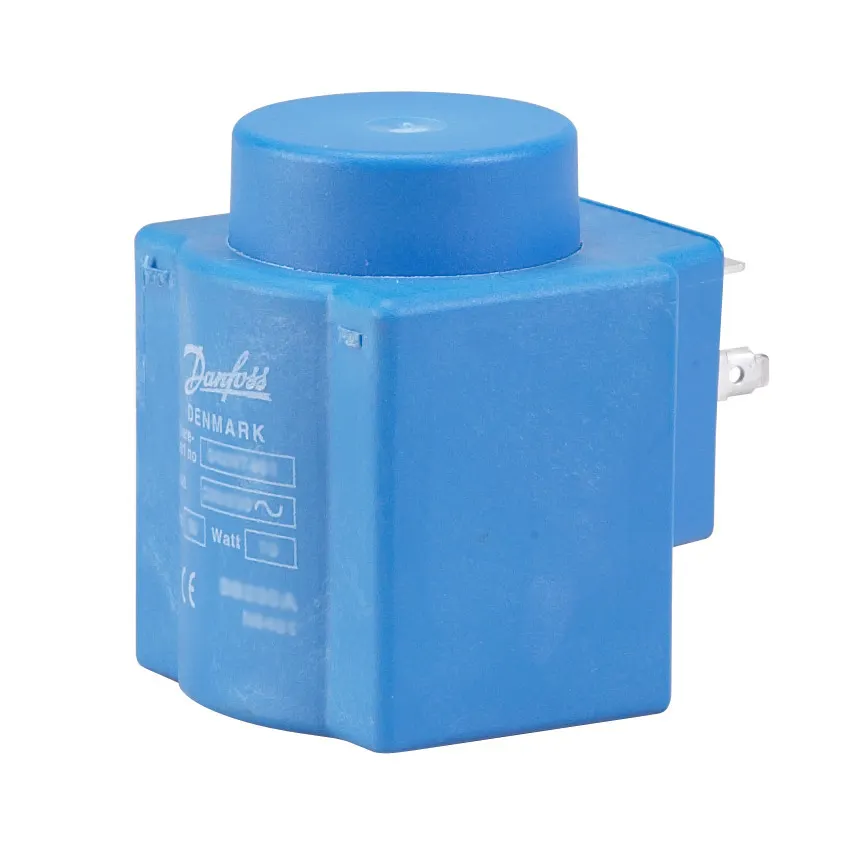

018F7658

Part Number: 018F7658
018F7658
Manufacturer
Danfoss
Part number
018F7658
Category

Product Information

Extended Description

018F7658 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 208 - 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.276 Kilogram
Net weight
0.268 Kilogram
Volume
0.264 Liter
EAN
5702428041256
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA,cURus
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1,UL 429
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
EU RoHS exemption clause
6(c)
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV250B,EV251B
Power consumption 50Hz [VA]
32 VA
Power consumption 60Hz [VA]
28 VA
Power consumption [W] 50Hz
16 W
Power consumption [W] 60Hz
14 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F7658
Supply voltage 50Hz Max [V]
230 V
Supply voltage 60Hz Max [V]
240 V
Supply voltage 60Hz Min [V]
208 V
Supply voltage [V] AC [max]
240 V
Supply voltage [V] AC [min]
208 V
Type
BY240CS
Type designation
BY240CS
UK RoHS compliance
Out of scope
UL approval file name
MH29671
UL evaluated
Yes
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP Solenoid coil Type BB, BG, BQ, BT, BU, BY and BN UL MH29671 High performance coil
