018F7905
Part Number: 018F7905
Product Information
Extended Description

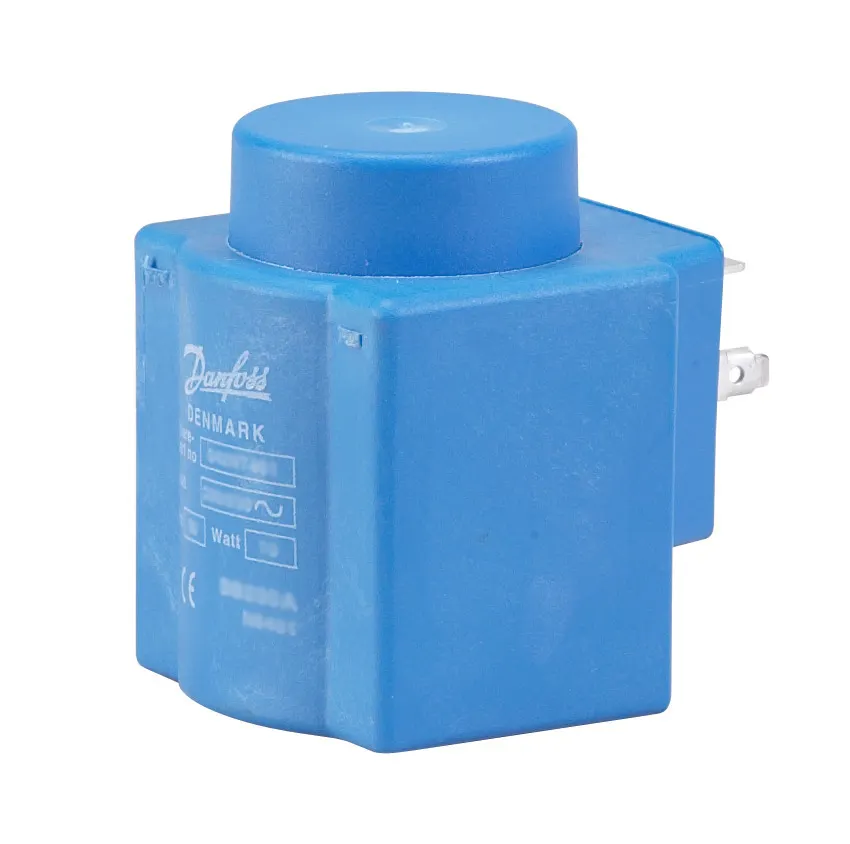

018F7905 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 24, Enclosure rating IP: IP00
Gross weight
0.262 Kilogram
Net weight
0.244 Kilogram
Volume
0.268 Liter
EAN
5702428170994
Actuator size [mm]
13.5 mm
Ambient temperature range [=C2=B0C]
80 =C2=B0C
Ambient temperature range [=C2=B0F]
176 =C2=B0F
Approval
Standard
CE evaluated
Out of scope
Coil connection
DIN Spade
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Color
Blue
Colour
Blue
Compliance
EN 60730-1
Contain batteries
No
Description
Coil BB024AS 24V 50Hz
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
Frequency [Hz]
50 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV250B,EV251B,EV310B
Power consumption 50Hz [VA]
19 VA
Power consumption [W] 50Hz
11 W
Product accessories
Solenoid coil accessories
Product description
Magnetic coils
Product group
Accessories
Quantity per packing format
50 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
e1534687-9129-4796-8151-656dd16d6529
SCIP dossier product name
RD
Serviceable
No
Supply voltage 50Hz Max [V]
24 V
Supply voltage [V] AC
24 V
Type
Magnetic coil
Type designation
BB024AS
