018F7991
Part Number: 018F7991
Product Information
Extended Description

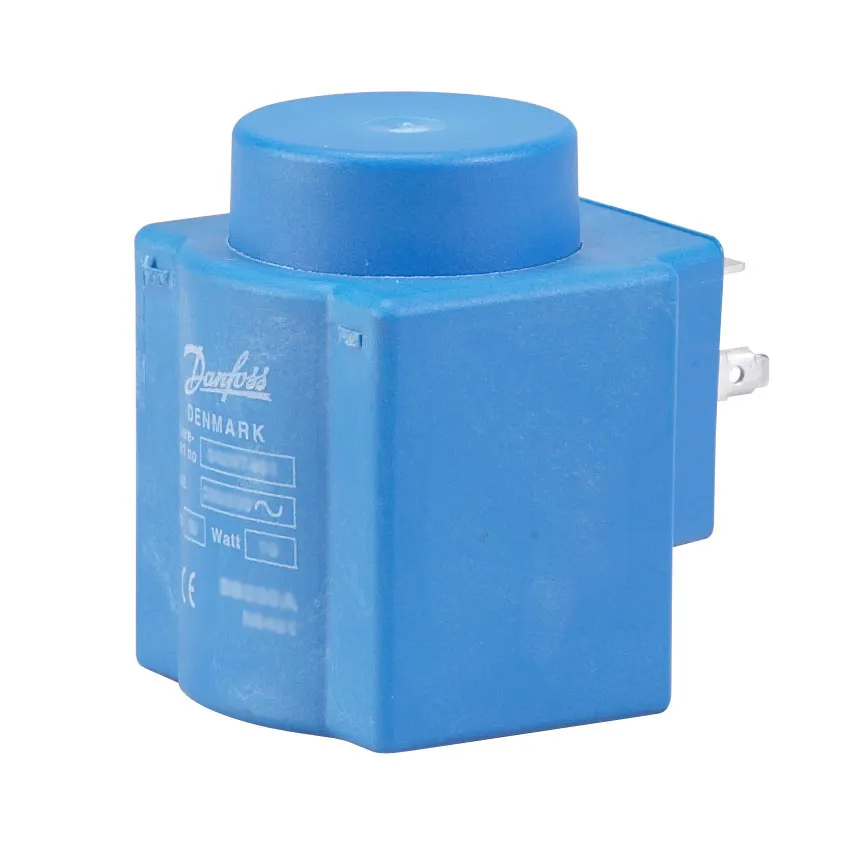

018F7991 Danfoss: Electrical connection: DIN Spade, Supply voltage [V] AC: 110, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00
Gross weight
0.328 Kilogram
Net weight
0.319 Kilogram
Volume
0.319 Liter
EAN
5702428470841
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA,cURus
CE evaluated
Yes
Coil connection
Plug, DIN 43650-A
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1,UL 429
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
DIN Spade
Electrical connection size
6.3 mm x 0.8 mm
Electrical connection standard
EN175301-803
Electrical connector
3 x spades
Enclosure rating IP
IP00
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV250B,EV251B
Power consumption 50Hz [VA]
27 VA
Power consumption 60Hz [VA]
27 VA
Power consumption [W] 50Hz
14 W
Power consumption [W] 60Hz
14 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
32 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018F7663
Supply voltage 50Hz Max [V]
110 V
Supply voltage 60Hz Max [V]
120 V
Supply voltage 60Hz Min [V]
110 V
Supply voltage [V] AC
110 V
Type
BY120CS
Type designation
BY120CS
UL approval file name
MH29671
UL evaluated
Yes
