018F8781
Part Number: 018F8781
Product Information
Extended Description

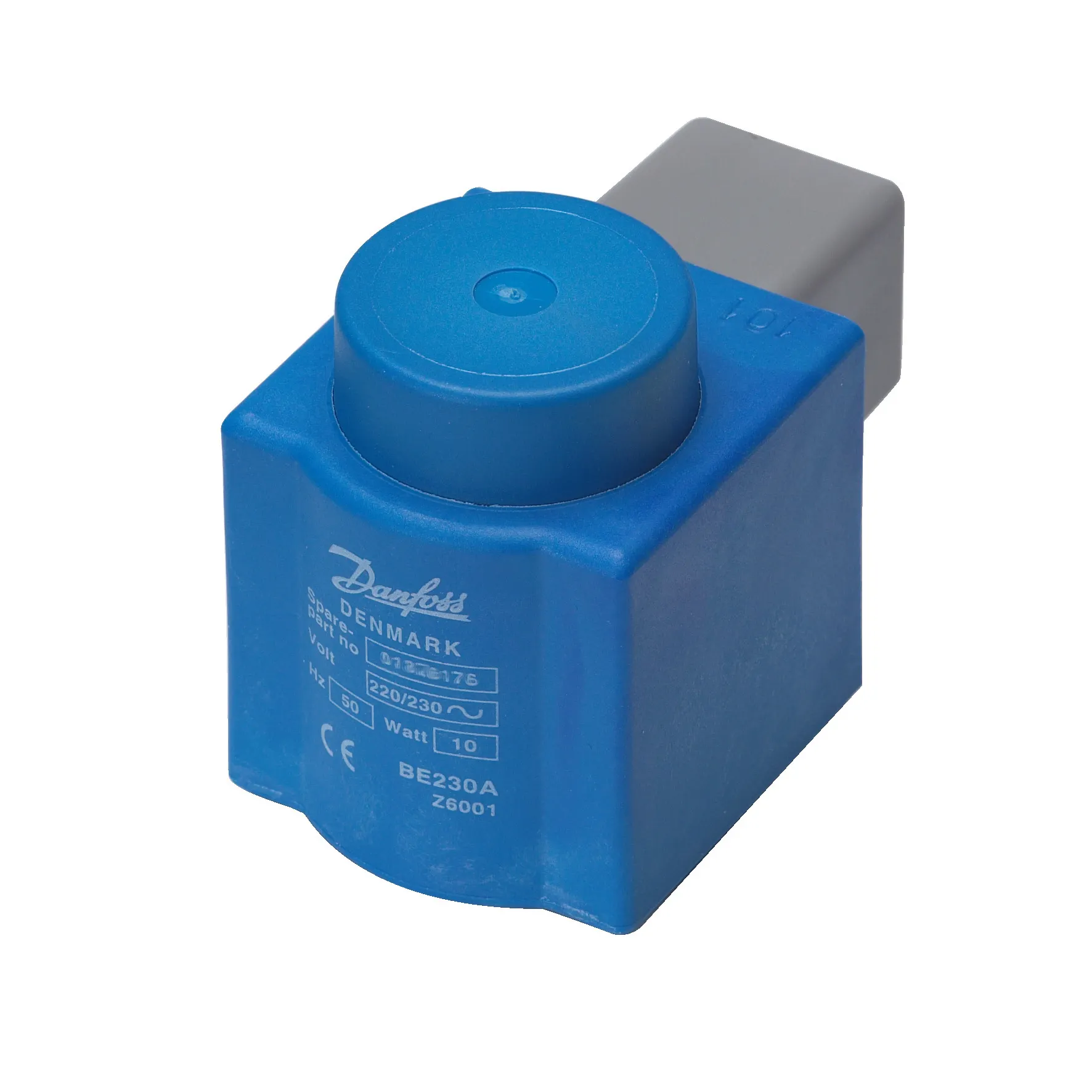

018F8781 Danfoss: Electrical connection: Terminal box, Enclosure rating IP: IP67
Gross weight
0.34 Kilogram
Net weight
0.322 Kilogram
Volume
0.481 Liter
EAN
5702428027373
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
Cable diameter [mm] [max]
11 mm
Cable diameter [mm] [min]
6 mm
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
Connection Box
Coil design standard
VDE 0580
Coil fastening
Clip-on
Coil winding insulation class
Class H to IEC 85
Colour
Blue
Compliance
EN 60730-1
Conductor area [mm2]
0.75 - 1.5 mm2
Contain batteries
No
Duty rating
Continuous
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Terminal box
Electrical connection size
Pg 13.5
Electrical connector
Screwed cable entry
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Identical product
018F6781
In scope of WEEE
Yes
Packing format
Industrial pack
Parts Program name
EV210B,EV212B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV227B,EV250B,EV251B
Power consumption [W] DC
18 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
25 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
6a76eb5e-6ca8-43d3-be03-8320fd28438e
SCIP dossier product name
AKV 20/EVR 32-40/EVRH 40
Serviceable
No
Spare part number
018F6991
Supply voltage [V] DC
230 V
Type
BE230DS
Type designation
BE230DS
UK RoHS compliance
Out of scope
Used for product
AKV
