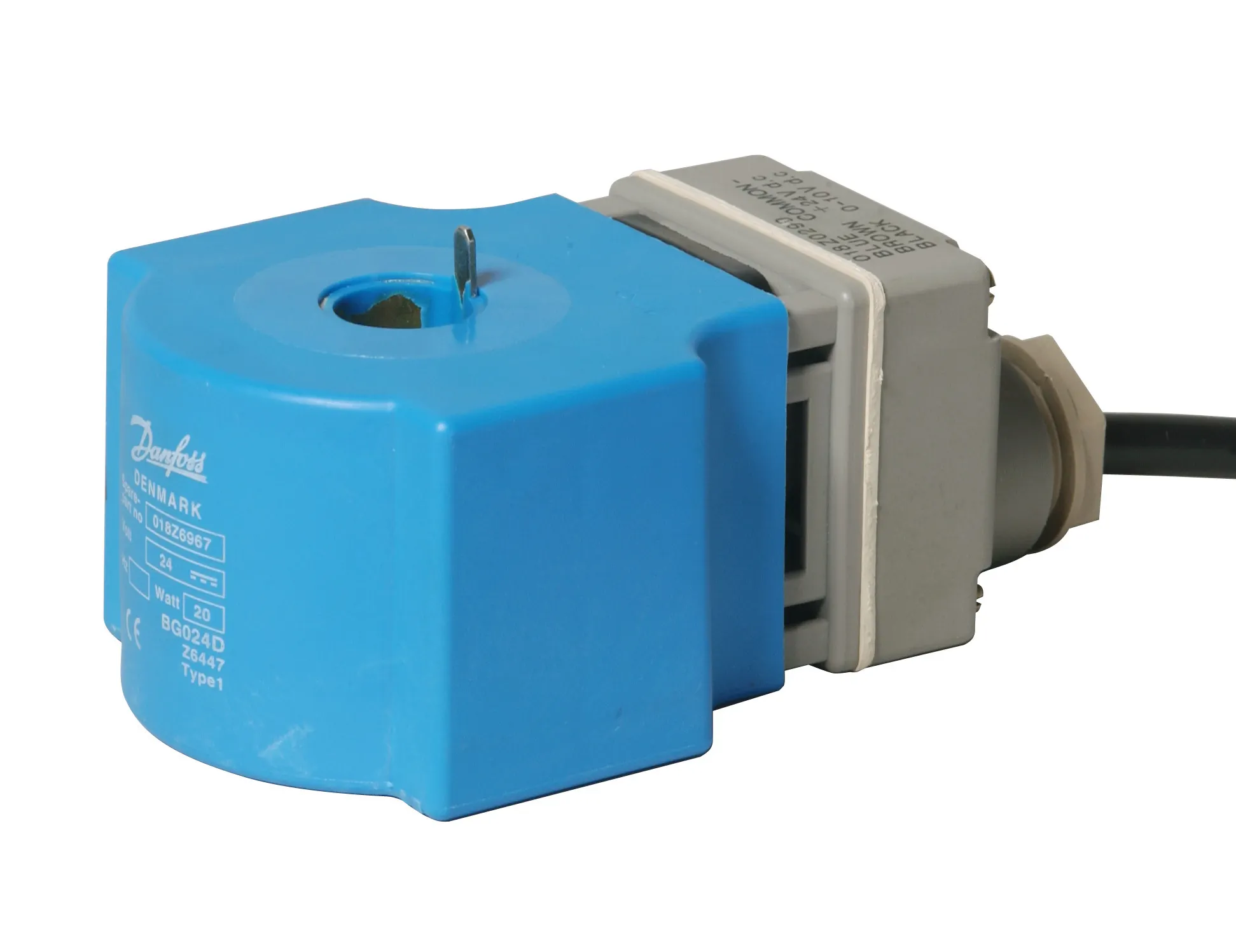

018Z0291
Part Number: 018Z0291
Product Information
Gross weight
0.782 Kilogram
Net weight
0.757 Kilogram
Volume
1.688 Liter
EAN
5702423030132
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Cable length [in]
78.74 in
Cable length [m]
2 m
China RoHS compliance
Out of scope
Coil connection
Cable
Coil fastening
Nut and snap
Colour
Blue
Contain batteries
No
Division
01
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Cable
Enclosure rating IP
IP65
Enclosure rating Nema (~)
4
EU RoHS compliance
Out of scope
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV260B
PFAS content [Yes/No]
No
Power consumption [W] DC
23 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
12 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
SCIP dossier no.
4eb0c237-8486-46ca-8052-bc7e10a477a5
Serviceable
No
Supply voltage [V] DC
24 V
Type
BL024D
Type designation
BL024D
UK RoHS compliance
Out of scope
