018Z6129
Part Number: 018Z6129
Product Information
Extended Description

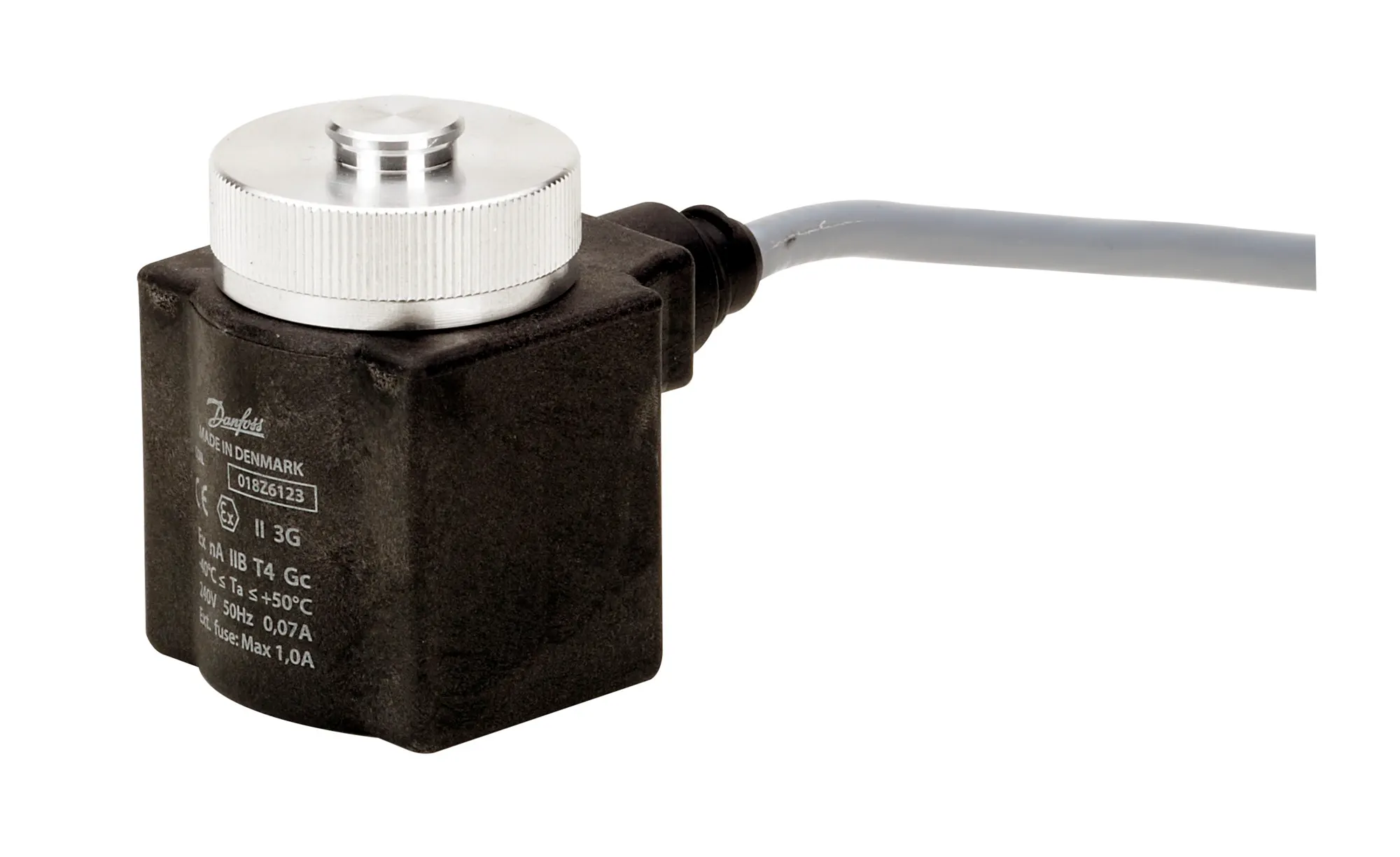

018Z6129 Danfoss: Electrical connection: Cable, Supply voltage [V] AC: 230, Frequency [Hz]: 60 Hz, Enclosure rating IP: IP65
Gross weight
0.463 Kilogram
Net weight
0.383 Kilogram
Volume
1.993 Liter
EAN
5715162718100
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
120 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
ATEX - Cat. 3 - Zone 2,LLC CDC TYSK
Cable length [in]
60 in
Cable length [m]
1.5 m
Coil connection
Cable
Coil fastening
Finger screw
Colour
Black
Compliance
EN 60079-0,EN 60079-7
Conductor area [mm2]
3 x 0.75 mm2
Contain batteries
No
Electrical connection
Cable
Electrical connection standard
ATEX 94/9/EF ZONE 2
Electrical connector
3 core cable
Enclosure rating IP
IP65
EX Sales text
-40Cta+50C,II 3G Ex ec IIB T4 Gc
Frequency [Hz]
60 Hz
Packing format
Multi pack
Power consumption [W]
11 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
20 pc
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
Serviceable
No
Supply voltage [V] AC
230 V
Type
BV230B
Type designation
BV230B
