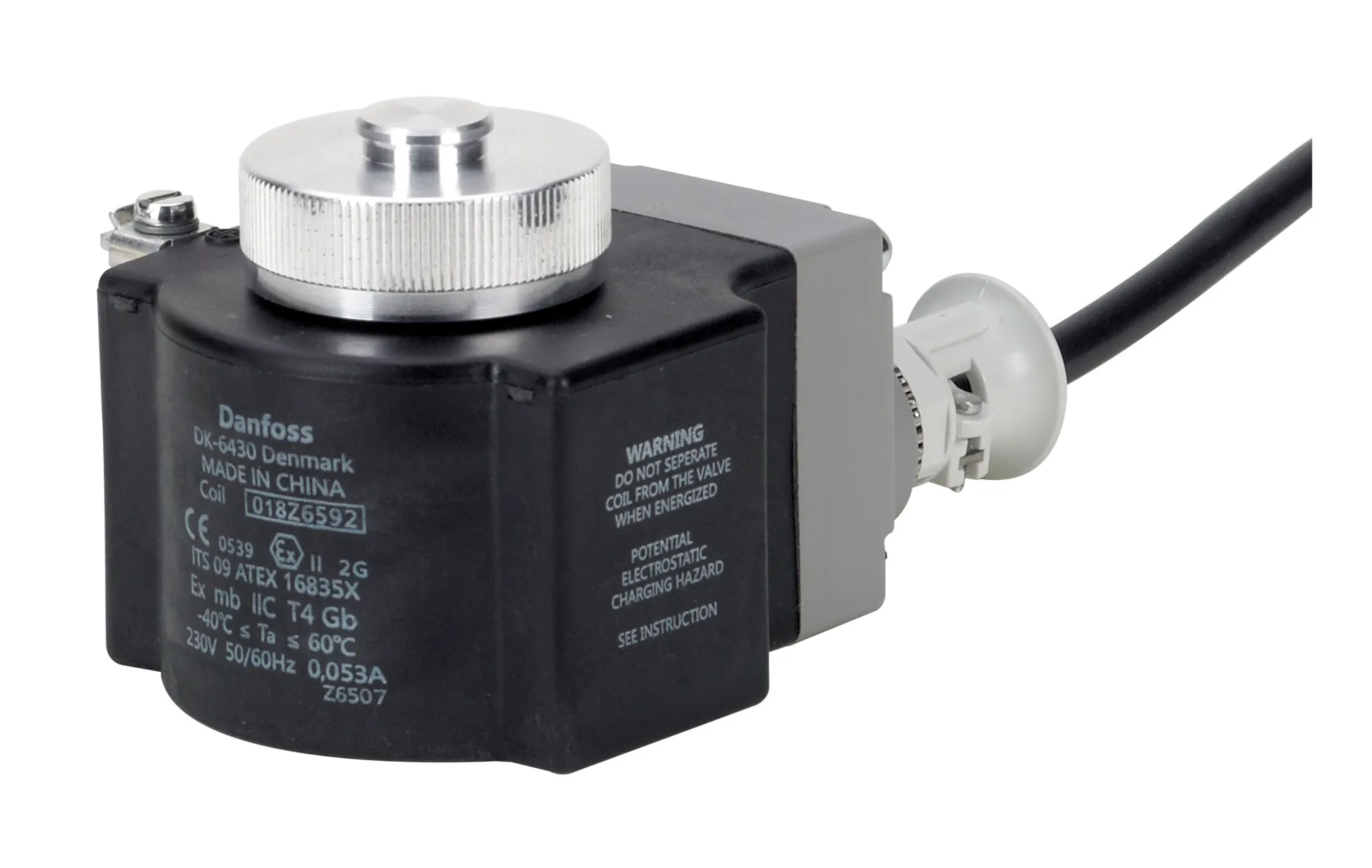

018Z6596
Part Number: 018Z6596
Product Information
Extended Description
018Z6596 Danfoss: Electrical connection: Cable, Enclosure rating IP: IP67
Gross weight
1.024 Kilogram
Net weight
0.846 Kilogram
Volume
2.003 Liter
EAN
5702423061327
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
140 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
ATEX - Cat. 2 - Zone 1
Cable length [in]
196 in
Cable length [m]
5 m
China RoHS compliance
Out of scope
Coil connection
Cable
Coil fastening
Finger screw
Coil winding insulation class
Class H to IEC 85
Colour
Black
Conductor area [mm2]
3 x 0.75 mm2
Contain batteries
No
Duty rating
Continuous
Earth connection
Ext. Terminal,Green/yellow wire
Electrical conn. comments
Earth conn. wiring 4 mm2
Electrical connection
Cable
Electrical connector
3 core cable
Enclosure rating IP
IP67
Enclosure rating Nema (~)
6
EU RoHS compliance
Yes
EU RoHS exemption clause
No
EX Sales text
-40Cta+60C,II 2G Ex mb IIC T4 Gb
Packing format
Multi pack
Parts included
IP67 seal kit
Parts Program name
EV210B,EV220B 15 - 50,EV220B 6 - 22,EV220B 65 - 100,EV222B,EV224B,EV227B,EV250B,EV251B,EV310B
Power consumption [W] DC
11 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
100 %
Rel. Humidity [% RH] [min]
0 %
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Supply voltage [V] DC
24 V
Type
BO024D
Type designation
BO024D
UK RoHS compliance
Out of scope
