018Z6987

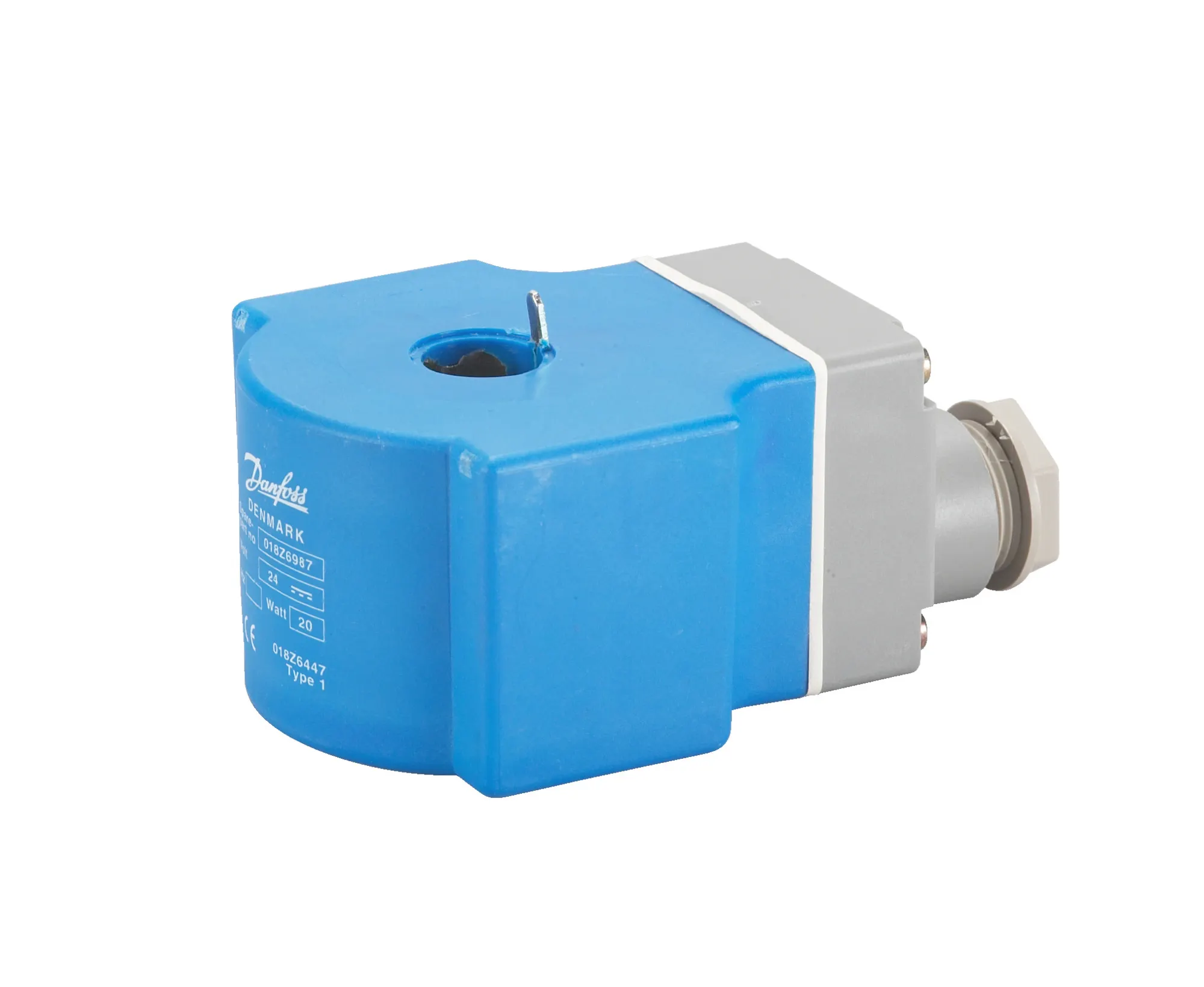

Part Number: 018Z6987
Product Information
Extended Description
018Z6987 Danfoss: Electrical connection: Terminal box, Enclosure rating IP: IP00
Gross weight
0.656 Kilogram
Net weight
0.623 Kilogram
Volume
0.52 Liter
EAN
5702423056323
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
50 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
122 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK,UKCA
Cable diameter [mm] [max]
11 mm
Cable diameter [mm] [min]
6 mm
CE evaluated
Yes
China RoHS compliance
Out of scope
Coil connection
Connection Box
Coil fastening
Nut and snap
Coil type
I
Colour
Blue
Conductor area [mm2]
0.75 - 1.5 mm2
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Terminal box
Electrical connection size
Pg 13.5
Electrical connector
Screwed cable entry
Enclosure rating IP
IP00
Enclosure rating Nema (~)
0
EU RoHS compliance
Out of scope
In scope of WEEE
Yes
Packing format
Multi pack
Parts Program name
EV260B
Power consumption [W] DC
23 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
25 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Rel. Humidity conditions
Non-condensation
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Serviceable
No
Spare part number
018Z6987
Supply voltage [V] DC
24 V
Type
BK024D
Type designation
BK024D
UK RoHS compliance
Out of scope
032U8052
Solenoid valve, EV260B, Function: NC, G, 1/4, 0.800 m³/h, PTFE
032U8053
Solenoid valve, EV260B, Function: NC, G, 3/8, 0.800 m³/h, PTFE
032U8054
Solenoid valve, EV260B, Function: NC, G, 3/8, 1.300 m³/h, PTFE
032U8055
Solenoid valve, EV260B, Function: NC, G, 1/2, 1.300 m³/h, PTFE
032U8056
Solenoid valve, EV260B, Function: NC, G, 1/2, 2.100 m³/h, PTFE
032U8057
Solenoid valve, EV260B, Function: NC, G, 3/4, 5.000 m³/h, PTFE
