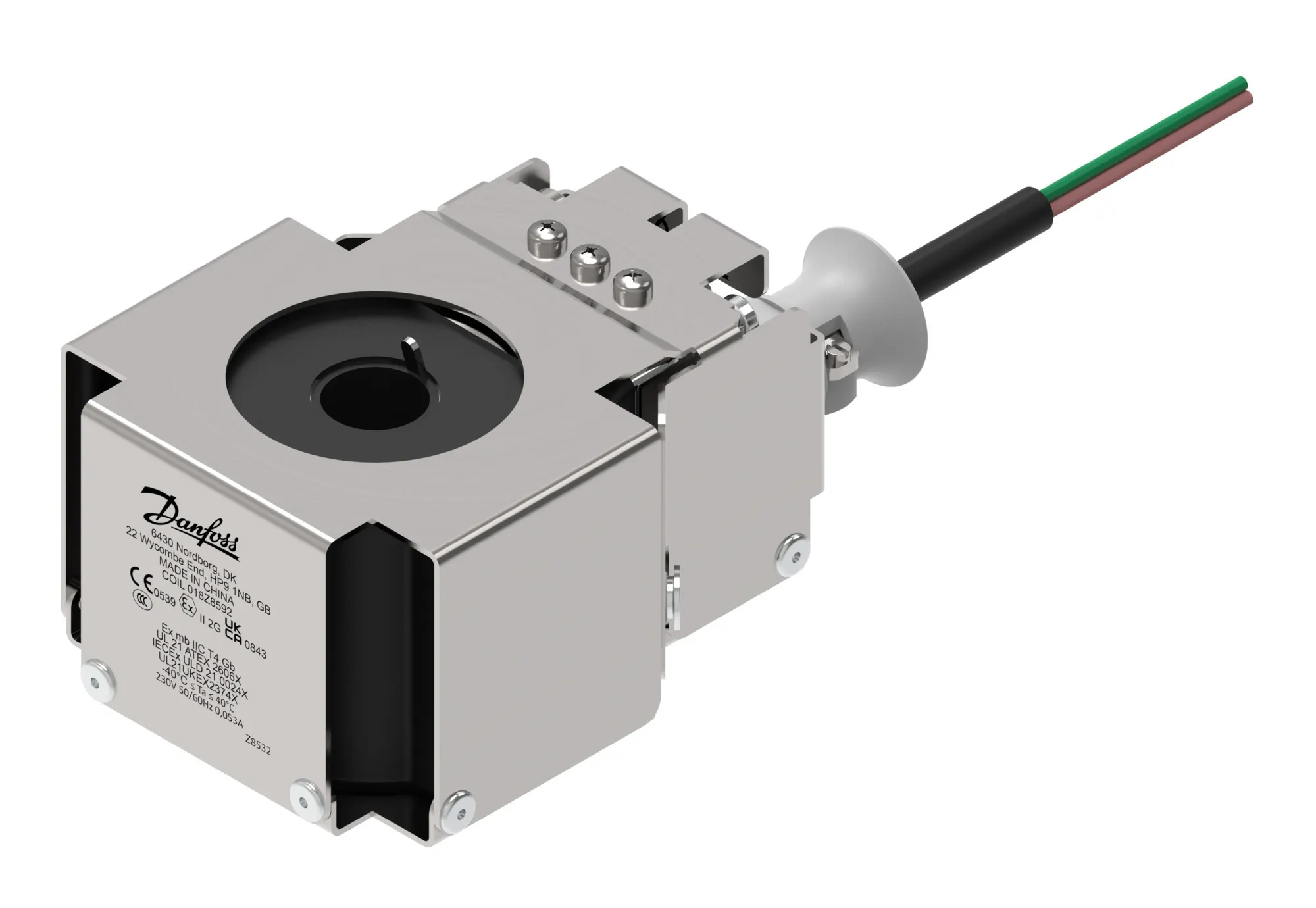

018Z8569
Part Number: 018Z8569
Product Information
Extended Description
018Z8569 Danfoss: Electrical connection: Cable, Enclosure rating IP: IP67
Gross weight
1.612 Kilogram
Net weight
1.447 Kilogram
Volume
3.391 Liter
EAN
5715162502273
Actuator size
13.5 mm
Approval
ATEX - Cat. 2 - Zone 1
Cable length [in]
196 in
Cable length [m]
10 m
China RoHS compliance
Out of scope
Coil connection
Cable
Coil fastening
Finger screw
Coil winding insulation class
Class H to IEC 85
Colour
Black
Conductor area [mm2]
3 x 0.75 mm2
Contain batteries
No
Duty rating
Continuous
Earth connection
Ext. Terminal,Green/yellow wire
Electrical conn. comments
Earth conn. wiring 4 mm2
Electrical connection
Cable
Electrical connector
3 core cable
Enclosure rating IP
IP67
Enclosure rating Nema (~)
6
EU RoHS compliance
Out of scope
EX Sales text
-40Cta+40C,DEMKO 01 ATEX127938X,Ex mb IIC T4 Gb,IECEx ULD 21.0024X,UL 21 ATEX 2606X,UL21UKEX2374X
Packing format
Multi pack
Parts included
IP67 seal kit
Parts Program name
AKV10P/PS,AKV15,AKV20,AKVA,EV210B 1,5 - 25,EV210BW 1,5 - 25,EV220B 6 - 100,EV220BW 15 -50,EV221BW 6 - 22,EV222B 15 - 50,EV250B 6 - 22,EV250BW 6 - 22,EV251B 10 - 22,EVM,EVM NO and NC,EVR NC 2 - 40,EVR NO 3 - 40,EVRA(T) 3 - 40,EVRB,EVRF,EVRP,EVRS(T) 3 - 20,ICF 15-65,VDH 2 - 120,VDHT xx,VPH 15
Power consumption [W] DC
12 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
6 pc
Serviceable
No
Supply voltage [V] DC
24 V
Type
BI024D
Type designation
BI024D
UK RoHS compliance
Out of scope
