018Z8592

Part Number: 018Z8592
018Z8592
Manufacturer
Danfoss
Part number
018Z8592
Category

Product Information

Extended Description

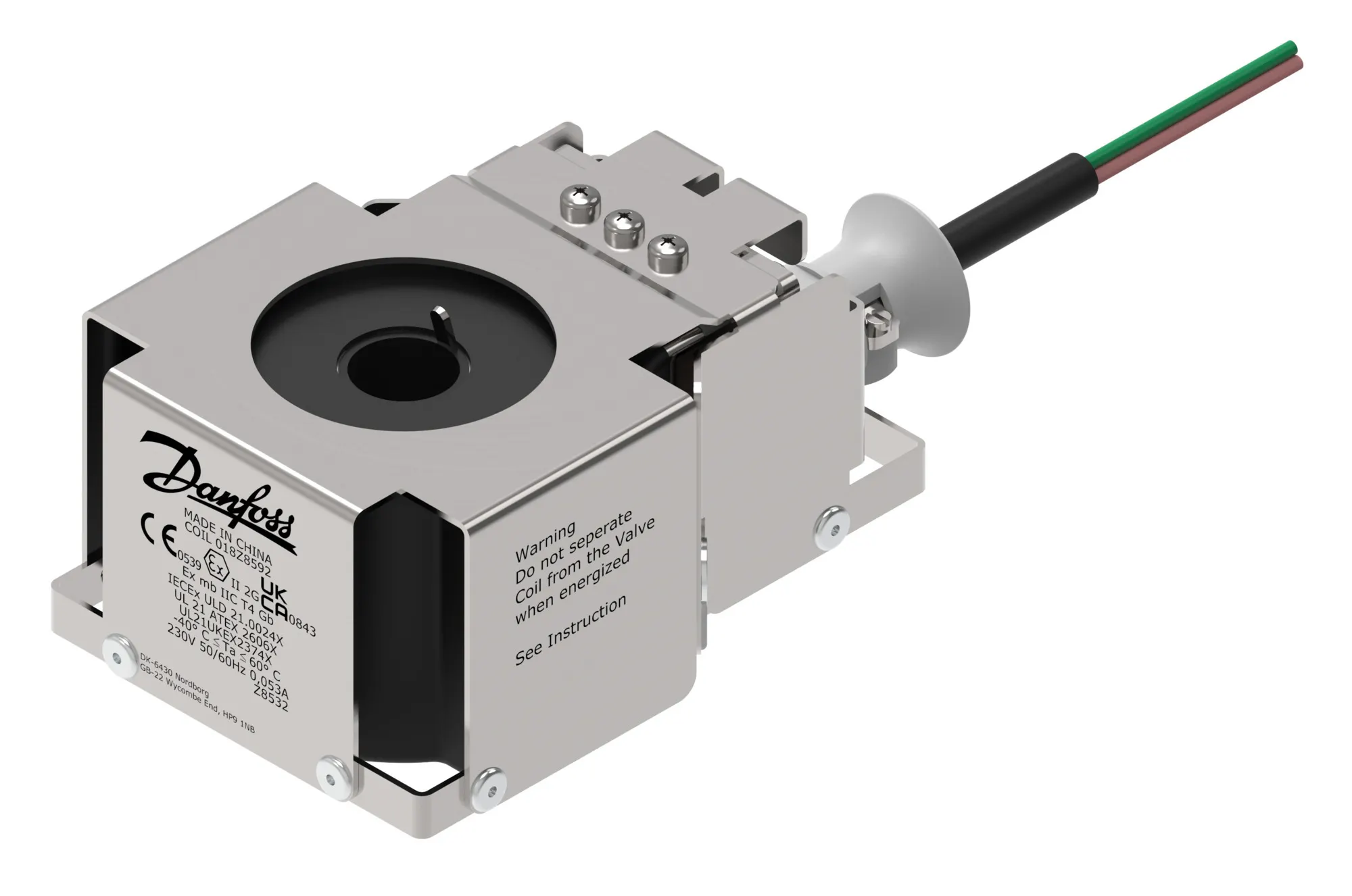

018Z8592 Danfoss: Electrical connection: Cable, Supply voltage [V] AC: 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP67
Gross weight
1.129 Kilogram
Net weight
1.049 Kilogram
Volume
1.962 Liter
EAN
5702424618513
Actuator size
13.5 mm
Ambient temperature range [°C] [max]
40 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
104 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
ATEX - Cat. 2 - Zone 1
Cable length [in]
196 in
Cable length [m]
5 m
China RoHS compliance
Out of scope
Coil connection
Cable
Coil fastening
Finger screw
Coil winding insulation class
Class H to IEC 85
Colour
Black
Conductor area [mm2]
3 x 0.75 mm2
Contain batteries
No
Duty rating
Continuous
Earth connection
Ext. Terminal,Green/yellow wire
Electrical conn. comments
Earth conn. wiring 4 mm2
Electrical connection
Cable
Electrical connector
3 core cable
Enclosure rating IP
IP67
Enclosure rating Nema (~)
6
EU RoHS compliance
Yes
EU RoHS exemption clause
No
EX Sales text
-40Cta+40C,DEMKO 01 ATEX127938X,Ex mb IIC T4 Gb,IECEx ULD 21.0024X,UL 21 ATEX 2606X,UL21UKEX2374X
Frequency [Hz]
50/60 Hz
Packing format
Multi pack
Parts included
IP67 seal kit
Parts Program name
AKV10P/PS,AKV15,AKV20,AKVA,EV210B 1,5 - 25,EV210BW 1,5 - 25,EV220B 6 - 100,EV220BW 15 -50,EV221BW 6 - 22,EV222B 15 - 50,EV250B 6 - 22,EV250BW 6 - 22,EV251B 10 - 22,EVM,EVM NO and NC,EVR NC 2 - 40,EVR NO 3 - 40,EVRA(T) 3 - 40,EVRB,EVRF,EVRP,EVRS(T) 3 - 20,ICF 15-65,VDH 2 - 120,VDHT xx,VPH 15
Power consumption [W] 50Hz
12.5 W
Power consumption [W] 60Hz
12.5 W
Product accessories
Solenoid coil accessories
Product group
Solenoid valves
Product Name Description
Solenoid coil
Quantity per packing format
10 pc
Rel. Humidity [% RH] [max]
97 %
Rel. Humidity [% RH] [min]
0 %
Serviceable
No
Supply voltage 50Hz Max [V]
230 V
Supply voltage 60Hz Max [V]
230 V
Supply voltage [V] AC
230 V
Type
BI230C
Type designation
BI230C
UK RoHS compliance
Yes
Solenoid coil Type BI Solenoid coil for control in potentially explosive areas Type BI Danfoss EU-UK 018R9200.AC DEMKO UL 21 ATEX 2606X Rev. 2 UL Demko IECEx ULD 21.0024X.2 UL21UKEX2374X Rev. 1 DEMKO 12 ATEX Q1209493 Rev. 13 UL21UKQAN2258 Rev. 5 BI024C_Frame, L BI024C_Frame, R
