020-0126

Part Number: 020-0126
020-0126
Manufacturer
Danfoss
Part number
020-0126
Category

Product Information

Extended Description

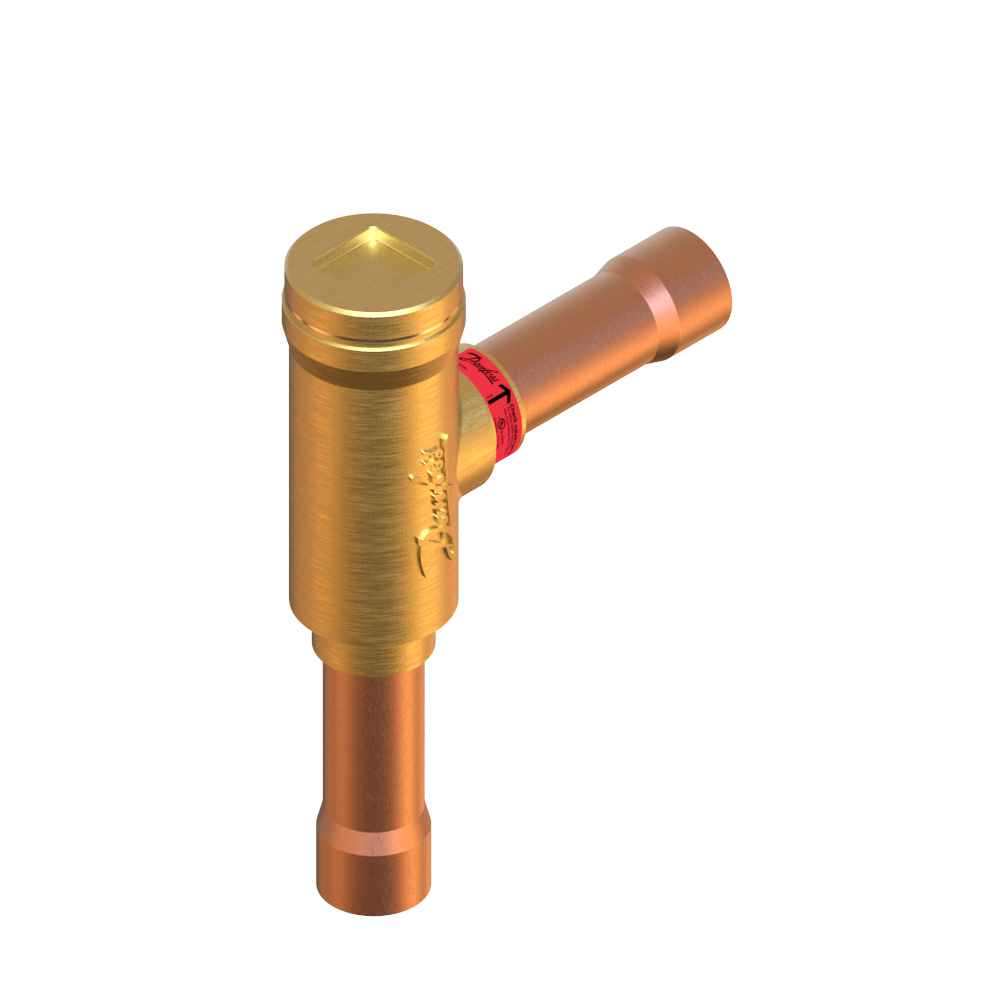

020-0126 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Direction: Angleway, Packing format: Industrial pack
Gross weight
1.243 Kilogram
Net weight
1.23 Kilogram
Volume
1.874 Liter
EAN
5702428246934
Approval
C UL US LISTED,EAC
Body material
Brass
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
Cv value [gal/min]
19.07 gal/min
Design
Piston
Direction
Angleway
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1,2
Identical product
020-1021
Inlet connection type
Solder, ODF
Inlet size [in]
1 1/8 in
Kv value [m=C2=B3/h]
16.5 m=C2=B3/h
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Min. Pressure drop [bar]
0.04 bar
Min. Pressure drop [psi]
0.6 psi
Oil free refrigerants
R1234ze(E),R134a,R513A,R515B,R516A
Outlet connection type
Solder, ODF
Outlet size [in]
1 1/8 in
Packing format
Industrial pack
PED category
Art. 4, par. 3
Product group
Check valves
Product Name Description
Check valve
Quantity per packing format
12 pc
Rated cap cond, Hot gas [IMP]
tcond=3D86 =C2=B0F,tdisc=3D176 =C2=B0F,tevap=3D14 =C2=B0F,thotgas=3D140 =C2=B0F,tsub=3D9 =C2=B0F
Rated cap cond, Hot gas [SI]
tcond=3D30 =C2=B0C,tdisc=3D80 =C2=B0C,tevap=3D-10 =C2=B0C,thotgas=3D60 =C2=B0C,tsub=3D5K
Rated cap cond, Liq. cap [IMP]
tcond=3D86 =C2=B0F,tevap=3D14 =C2=B0F,tsub=3D9 =C2=B0F
Rated cap cond, Liq. cap [SI]
tcond=3D30 =C2=B0C,tevap=3D-10 =C2=B0C,tsub=3D5K
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R1270,R134a,R170,R22/R407C,R290,R32,R404A/R507A,R407A,R407F,R407H,R410A,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R513A,R515B,R516A,R600,R600a
SCIP dossier no.
b3a34751-5701-488e-98f4-24be945efdc1
Temperature range [=C2=B0C] [max]
140 =C2=B0C
Temperature range [=C2=B0C] [min]
-50 =C2=B0C
Temperature range [=C2=B0F] [max]
285 =C2=B0F
Temperature range [=C2=B0F] [min]
-58 =C2=B0F
Type
NRV 28s
UL approval file name
REFRIGERANT VALVE 53R0
UL approved refrigerants
R1233zd(E),R1234yf,R1234ze(E),R1270,R134a,R170,R22,R290,R32,R404A,R407A,R407C,R407F,R407H,R410A,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R507A,R513A,R515B,R516A,R600,R600a
UL evaluated
Yes
Danfoss solutions for Air Handling Units and Rooftops Danfoss Solutions for Chillers Check valve Type NRV and NRVH Check valve Type NRV and NRVH Danfoss EU-UK 033F4002.AI Check valve, Shut-off diaphragm valve, shut-off ball valve and differential pressure valve Danfoss MD 033F4017.AD Danfoss UK 033F4025.AA Check valve, NRV 28s_020-0126, 020-1021, 020-1025 Check valve, NRV 22s, NRVH 22s_020-0127, 020-1034, 020-1035 NRV/NRVH 28s AW 1-1/8 x 1-1/8 NRV/NRVH 28s AW 1-1/8 x 1-1/8
