021H0366

Part Number: 021H0366
021H0366
Manufacturer
Danfoss
Part number
021H0366
Category

Product Information

Extended Description

021H0366 Danfoss: Max. Working Pressure [bar]: 30.0, Universal, Function: Universal, Brazing material: Copper brazing
Gross weight
17.25 Kilogram
Net weight
17.1 Kilogram
Volume
11.3 Liter
EAN
5702424274900
Application
Universal
Approval
AS,EAC,KRAIA,PED,UA,UL,CRN,RoHS,UKCA
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Null
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Universal
Function note
Null
H1 conn. size
1"1/8 in
H1 conn. type
Solder connection
H2 conn. size
1"1/8 in
H2 conn. type
Solder connection
H3 conn. size
1"1/8 in
H3 conn. type
Solder connection
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
435 psi
Max. Working Pressure [bar]
30 bar
Model no.
62
Number of plates
98
Packing format
Single pack
PED category
II
Plate material no.
AISI 316L
Plate pattern
M
Product group
Heat exchangers
Product Name Description

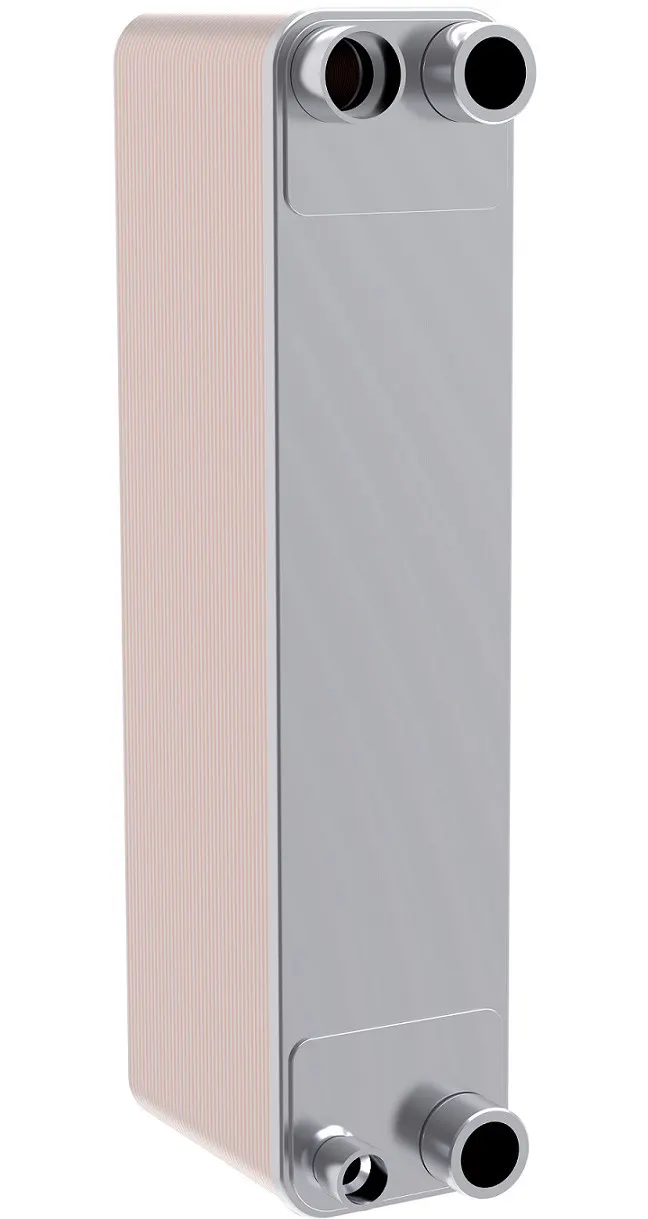

Micro Plate heat exchanger
Q1 conn. size range
Null
Q1 conn. type
Null
Q2 conn. size range
Null
Q2 conn. type
Null
Q3 conn. size range
Null
Q3 conn. type
Null
Q4 conn. size range
1"3/8 in
Q4 conn. type
Solder connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R134a,R22,R245fa,R404A,R407C,R444B,R448A,R449A,R450A,R454C,R455A,R507A,R513A,R515B,R1234ze,R454A
Type
MPHE D62
Type designation
D62
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
Z-design MPHEs for chillers Economic and environmental savings in cooling Micro Plate Heat Exchanger Save you time and money - D62 GB Instructions E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Micro Plate Heat Exchangers - Not dual use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Micro Plate heat exchanger_MPHE_PIC. P45
