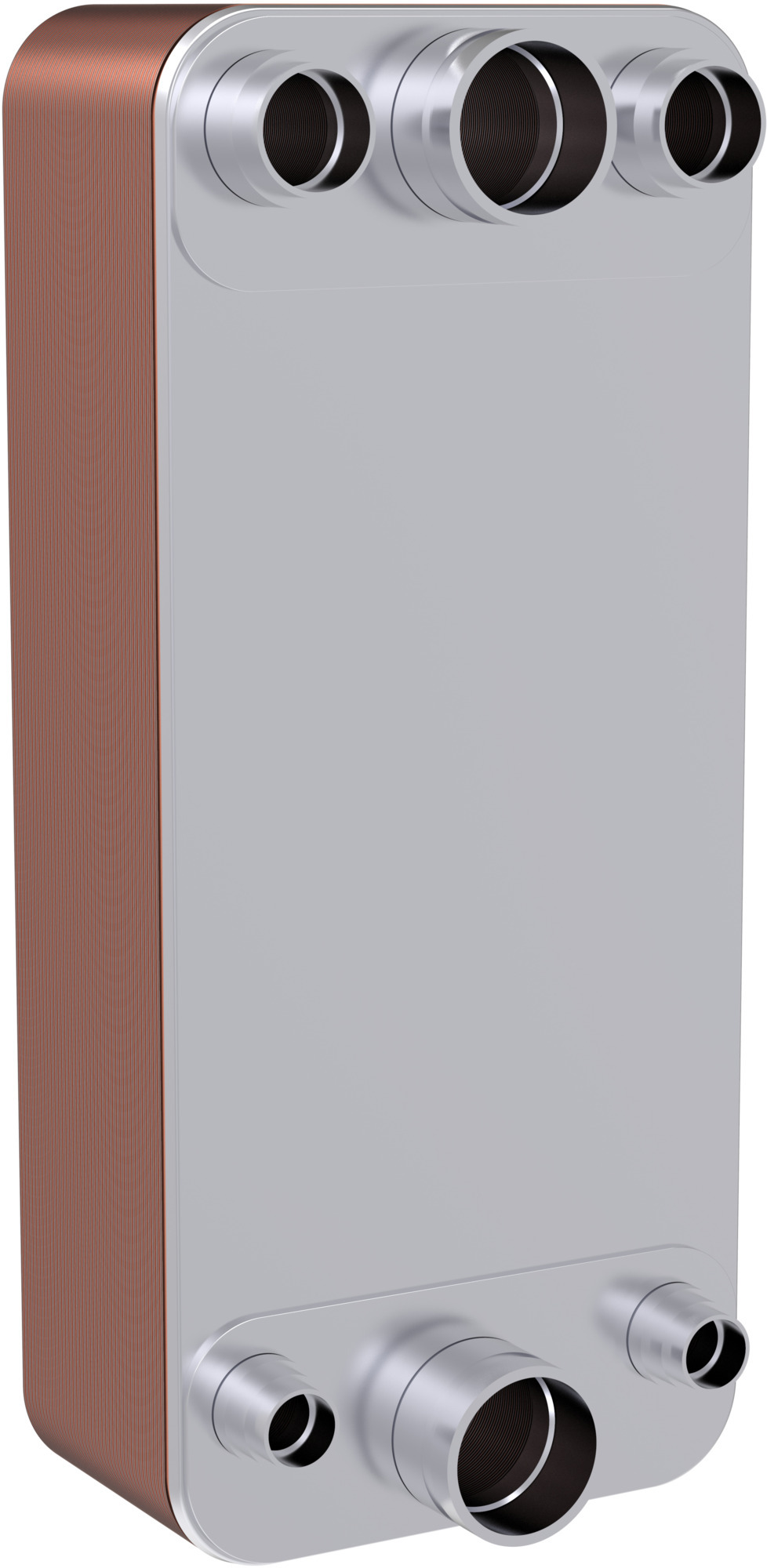

021H4735

Part Number: 021H4735
021H4735
Manufacturer
Danfoss
Part number
021H4735
Category

Product Information

Extended Description

021H4735 Danfoss: Max. Working Pressure [bar]: 30.0, Universal, Function: Null, Brazing material: Copper brazing
Gross weight
169.95 Kilogram
Net weight
169.8 Kilogram
EAN
5702424265786
Application
Universal
Approval
EAC,PED,UL,AS,CRN,KRAIA,RoHS,UA,UKCA
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Feet
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Null
Function note
With distributor
H1 conn. size
Null
H1 conn. type
Solder connection
H2 conn. size
Null
H2 conn. type
Solder connection
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
435 psi
Max. Working Pressure [bar]
30 bar
Model no.
210
Number of plates
196
Packing format
Single pack
PED category
IV
Plate material no.
AISI 316L
Plate pattern
H
Product group
Heat exchangers

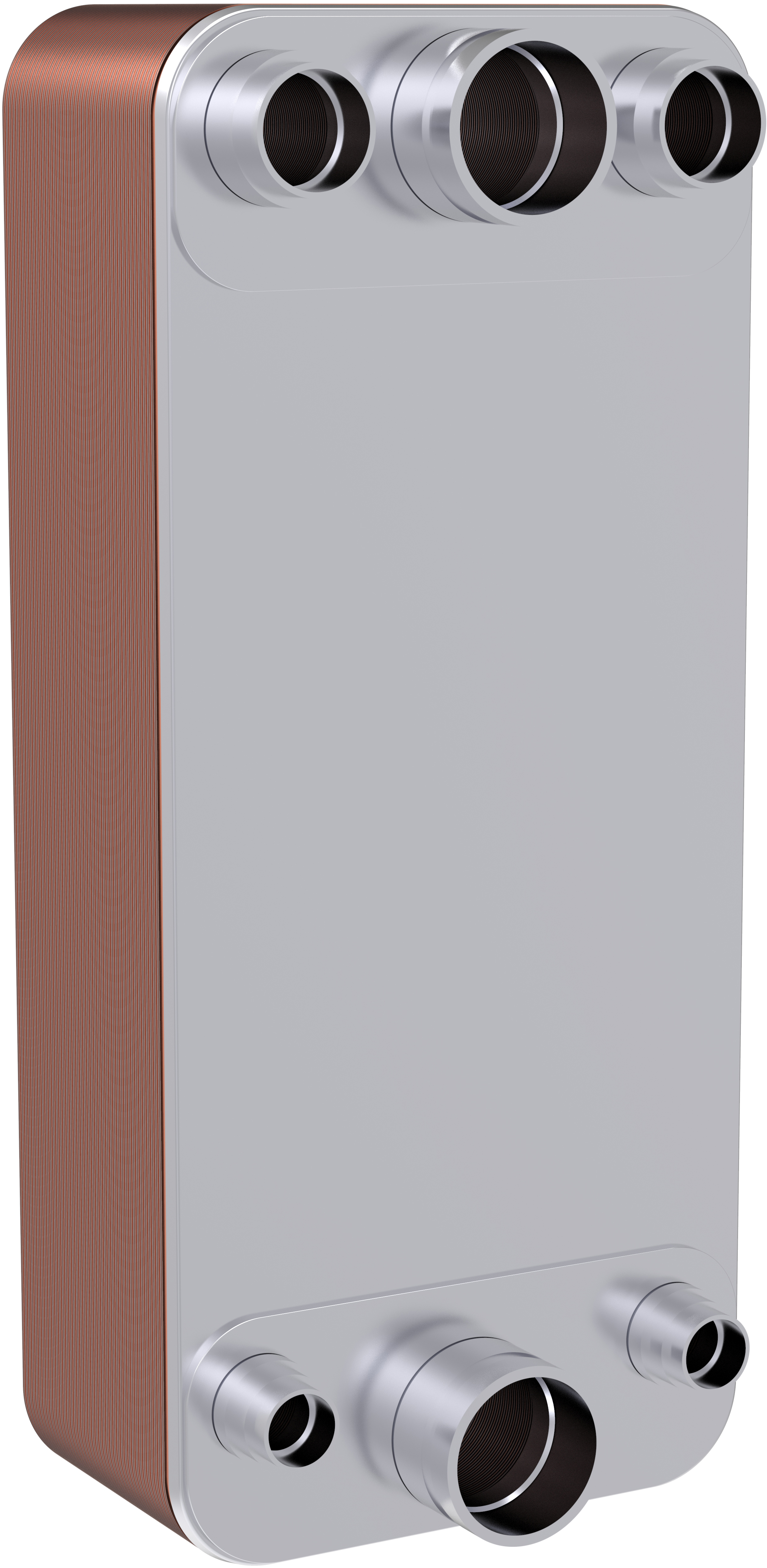

Product Name Description
Brazed plate heat exchanger
Q1 conn. size range
Null
Q1 conn. type
Null
Q2 conn. size range
Null
Q2 conn. type
Null
Q3 conn. size range
Null
Q3 conn. type
Null
Q4 conn. size range
3 1/8 in
Q4 conn. type
Solder connection
Q5 conn. size range
7/8 in
Q5 conn. type
Solder connection
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R407C,R450A,R455A,R513A,R1233zd(E),R1234yf,R245fa,R404A,R444B,R448A,R449A,R454C,R507A,R515B,R1234ze,R454A
Type
BPHE B3-210
Type designation
B3-210
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
EnFusion brazed plate heat exchanger BPHE Brazed plate heat exchanger Type B3 range GB Instructions Guidelines for water quality in Danfoss brazed heat exchangers with plates of EN 1.4404 E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Braze Plate Heat Exchangers - Not Dual Use Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 Danfoss UK-ROHS-MOD-202304-01.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Brazed plate heat exchanger, B3-210- PIC K
