021H7256

Part Number: 021H7256
021H7256
Manufacturer
Danfoss
Part number
021H7256
Category

Product Information

Extended Description

021H7256 Danfoss: Max. Working Pressure [bar]: 30.0, Universal, Function: Null, Brazing material: Copper brazing
Gross weight
1.836 Kilogram
Net weight
1.836 Kilogram
Volume
4.6 Liter
EAN
5702428610742
Application
Universal
Approval
AS,EAC,KRAIA,UA,UL,CRN,RoHS
Brazing material
Copper brazing
China RoHS compliance
Yes
Contain batteries
No
Design temperature range [=C2=B0C] [max]
200 =C2=B0C
Design temperature range [=C2=B0C] [min]
-196 =C2=B0C
Design temperature range [=C2=B0F] [max]
320 =C2=B0F
Design temperature range [=C2=B0F] [min]
-390 =C2=B0F
Equipment
Null
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Function
Null
Function note
Null
H1 conn. size
Null
H1 conn. type
Null
H2 conn. size
Null
H2 conn. type
Null
H3 conn. size
Null
H3 conn. type
Null
H4 conn. size
Null
H4 conn. type
Null
H5 conn. size
Null
H5 conn. type
Null
H6 conn. size
Null
H6 conn. type
Null
In scope of WEEE
No
Max working pressure [psi]
435 psi
Max. Working Pressure [bar]
30 bar
Model no.
012
Number of plates
30
Packing format
Industrial pack
PED category
Art. 4, par. 3
Plate material no.
AISI 316L
Plate pattern
H
Product group
Heat exchangers

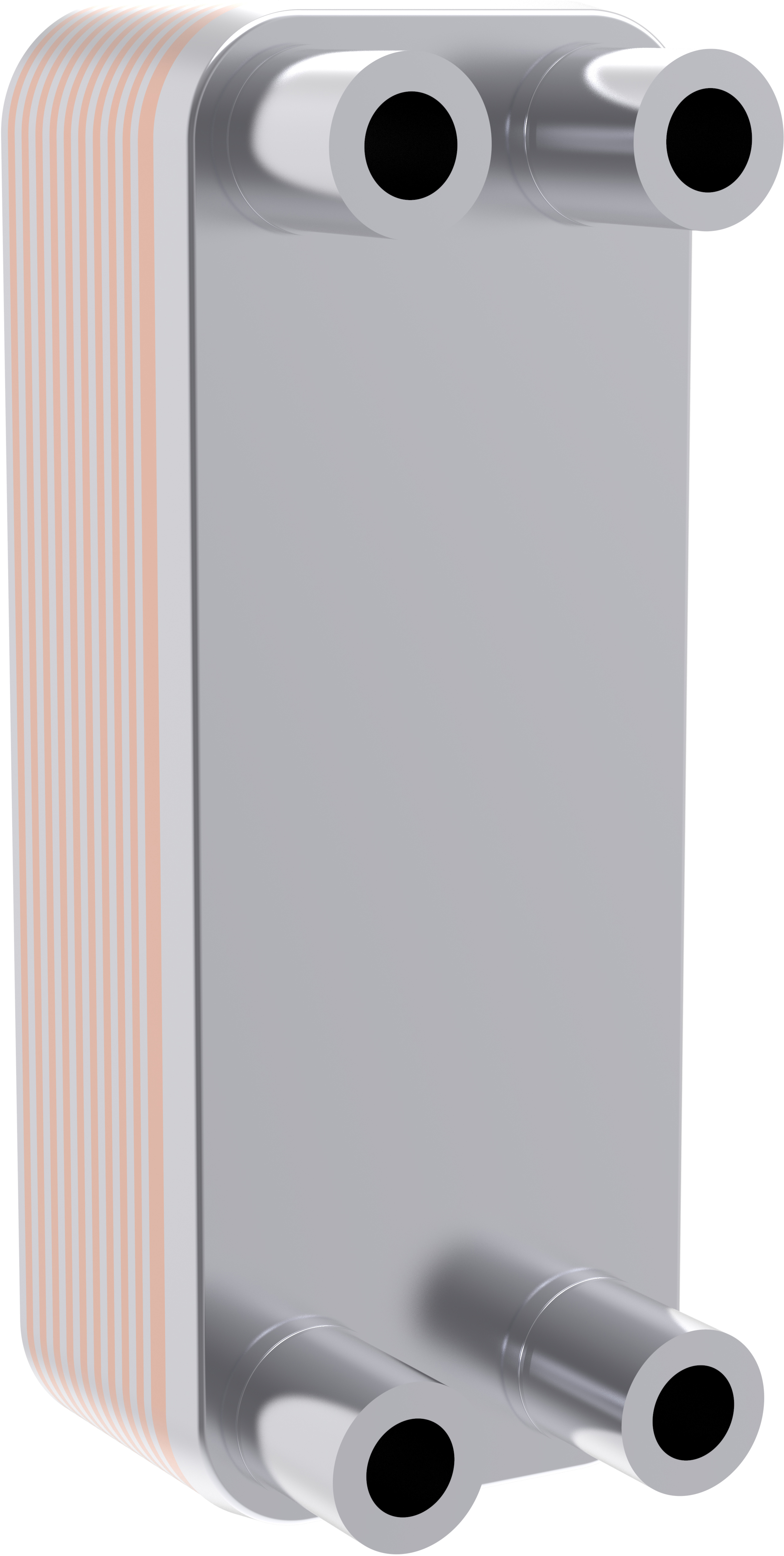

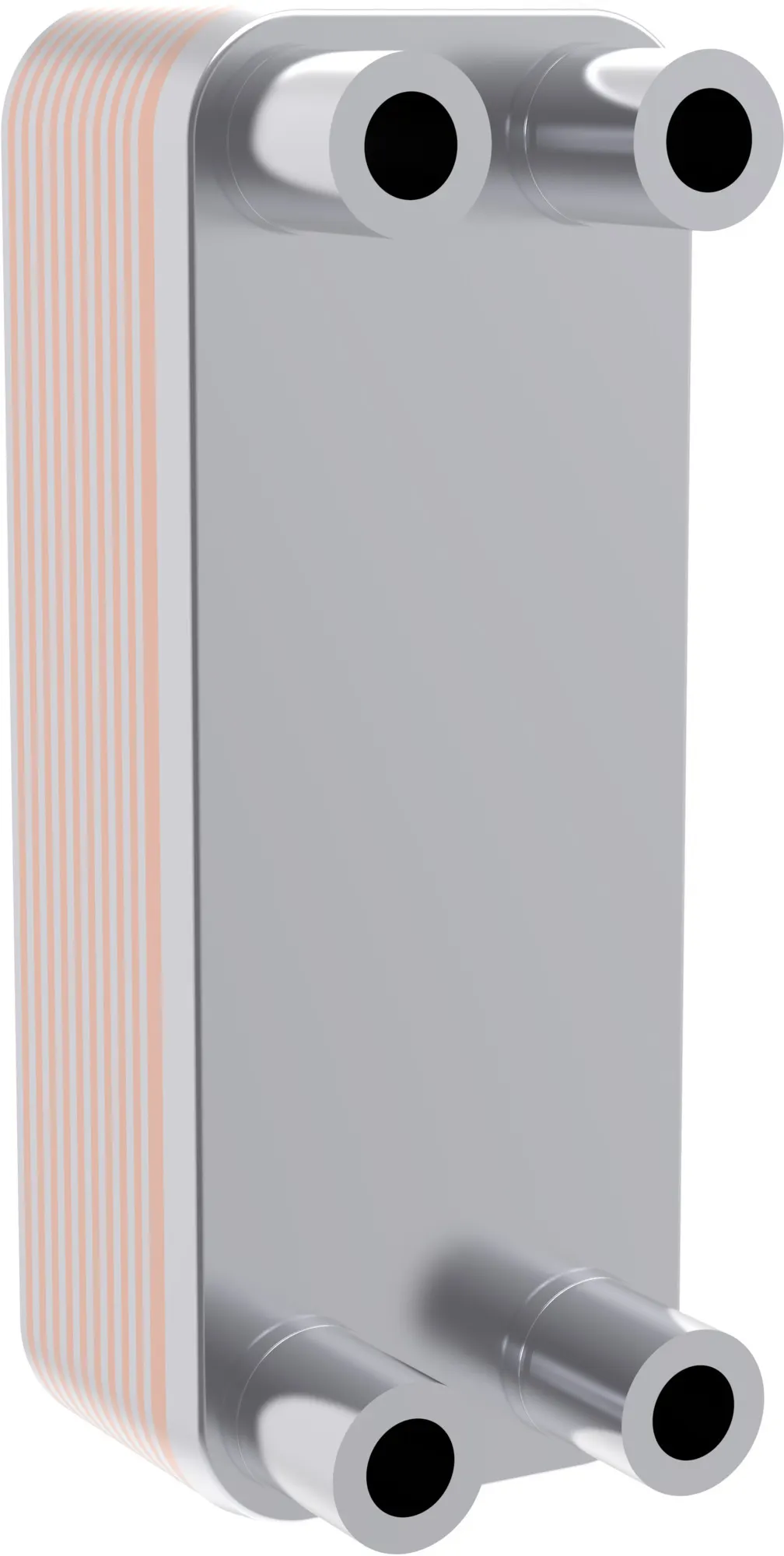

Product Name Description
Brazed plate heat exchanger
Q1 conn. size range
G3/4
Q1 conn. type
External thread connection
Q2 conn. size range
G3/4
Q2 conn. type
External thread connection
Q3 conn. size range
G3/4
Q3 conn. type
External thread connection
Q4 conn. size range
G3/4
Q4 conn. type
External thread connection
Q5 conn. size range
Null
Q5 conn. type
Null
Q6 conn. size range
Null
Q6 conn. type
Null
Quantity per packing format
80 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R407C,R513A,R1233zd(E),R1234yf,R245fa,R404A,R444B,R448A,R449A,R450A,R454C,R455A,R507A,R515B,R1234ze,R454A
Type
BPHE B3-012
Type designation
B3-012
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UK RoHS exemption clause
No
UL evaluated
Yes
EnFusion brazed plate heat exchanger BPHE Brazed plate heat exchanger Type B3 range GB Instructions Guidelines for water quality in Danfoss brazed heat exchangers with plates of EN 1.4404 E=D0=90=D0=A1 KZ 7100841.13.12.01130 Danfoss EU BF202407en-0001.01 Braze Plate Heat Exchangers - Not Dual Use Danfoss MD BF248486516840en-000701.01 Danfoss MD BPHE-RoHS-DOC-201601 Danfoss MD EU-RoHS-DoC-202309-01.01 Danfoss MD EU-ROHS-MD-202404-01.01 Danfoss MD UK-ROHS-MOD-202304-02.01 UL SA13363 BV CE-0062-PED-H-DAF 001-24-DNK Brazed plate heat exchanger_PIC A
