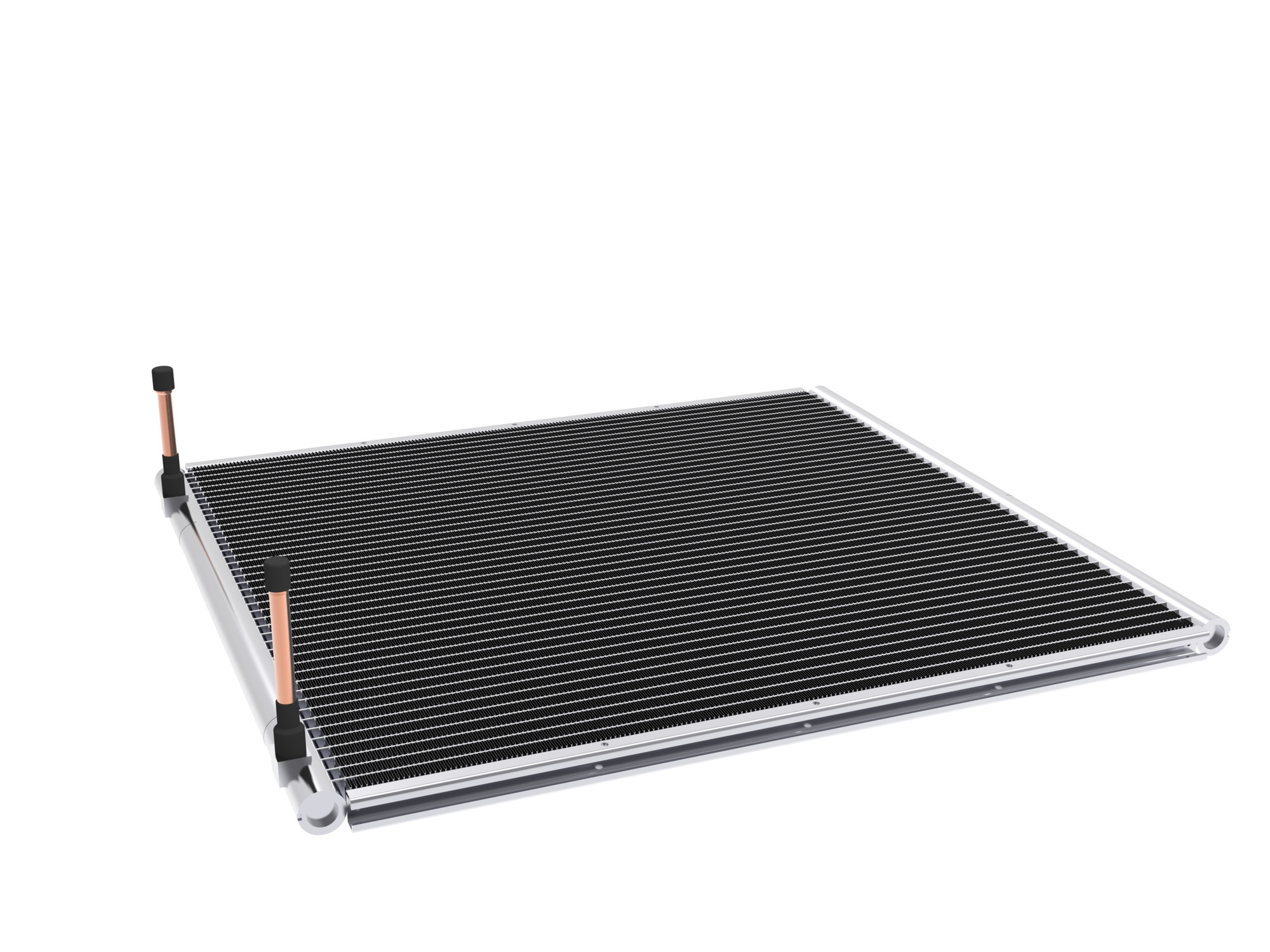

021U0082

Part Number: 021U0082
021U0082
Manufacturer
Danfoss
Part number
021U0082
Category

Product Information

Extended Description

021U0082 Danfoss: Rated capacity R410A [kW]: 4.90, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Gross weight
2.803 Kilogram
Net weight
1.541 Kilogram
Volume
29.949 Liter
EAN
5702424291945
Application area
Refrigeration,Air Conditioning
Approval
EAC,UL,PED
Approval file name
SA33862,CE-0062-PED-H-DMC 001-20-CHN-A,ЕАЭС KZ 7100841.13.12.01130
Body material
Aluminium
China RoHS compliance
Yes
Coil depth [in]
0.63 in
Coil depth [mm]
16 mm
Coil height [in]
17.02 in
Coil height [mm]
432.3 mm
Coil Length [in]
18.19 in
Coil Length [mm]
462 mm
Connection material
Copper
Contain batteries
No
Design pressure [MPa]
4.5 MPa
Design pressure [psig]
653 psig
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fin pitch [mm]
1.1 mm
Flow direction
Single-flow
Fluid Group
1,2
Identical product
021U0089
Inlet connection type
Solder, ODF
Inlet size [in]
5/16 in
Inlet size [mm]
7.94 mm
Internal volume [cm3]
300 cm³
Internal volume [in3]
18.3 in³
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Mounting bar material
Aluminium
Number of tubes [pcs]
43
Operation Ambient Temp [°C] [max]
72 °C
Operation Ambient Temp [°C] [min]
-40 °C
Operation Ambient Temp [°F] [max]
162 °F
Operation Ambient Temp [°F] [min]
-40 °F
Outlet connection type
Solder, ODF
Outlet size [in]
5/16 in
Outlet size [mm]
7.94 mm
Packing format
Multi pack
Part Number
DF0131
Product accessories
No
Product group
Heat exchangers
Product Name Description
Micro Channel heat exchanger
Quantity per packing format
16 pc
Rated cap. conditions [IMP]
Ambient temp.=95 °F,Delta t=21.6 °F,Subcooling=9 °F,Air speed=591 ft/min
Rated cap. conditions [SI]
Ambient temp.=35 °C,Delta t=12 °C,Subcooling=5 °C,Air speed=3 m/s
Rated capacity R410A [kW]
4.9 kW
Rated capacity R410A [TR]
1.39 TR
REACH Candidate List substances
No
Refrigerants
R410A,R134a,R290,R32,R452B,R454B,R1234yf,R404A,R407C,R448A,R449A,R452A,R513A,R1234ze(E),R22,R444B,R449B,R454A,R454C,R455A,R513B,R514A,R515A,R515B,R600a
Serviceable
No
Temperature range [°C] [max]
121 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
250 °F
Temperature range [°F] [min]
-40 °F
Type
MCHE D1200-C
Type designation
D1200-C
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UL evaluated
Yes
