021U0086

Part Number: 021U0086
021U0086
Manufacturer
Danfoss
Part number
021U0086
Category

Product Information

Extended Description

021U0086 Danfoss: Rated capacity R410A [kW]: 50.70, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Gross weight
33 Kilogram
Net weight
20.082 Kilogram
Volume
136.604 Liter
EAN
5702424291907
Application area
Chiller,Refrigeration,Air Conditioning
Approval
EAC,PED,UL
Approval file name
SA33862,CE-0062-PED-H-DMC 001-20-CHN-A,ЕАЭС KZ 7100841.13.12.01130
Body material
Aluminium
China RoHS compliance
Yes
Coil depth [in]
1 in
Coil depth [mm]
25.4 mm
Coil height [in]
53.66 in
Coil height [mm]
1362.9 mm
Coil Length [in]
50.16 in
Coil Length [mm]
1274 mm
Connection material
Copper
Contain batteries
No
Design pressure [MPa]
4.5 MPa
Design pressure [psig]
653 psig
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fin pitch [mm]
1.1 mm
Flow direction
Single-flow
Fluid Group
1,2
Identical product
021U0093
Inlet connection type
Solder, ODF
Inlet size [in]
7/8 in
Inlet size [mm]
22.2 mm
Internal volume [cm3]
3490 cm³
Internal volume [in3]
213 in³
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Mounting bar material
Aluminium
Number of tubes [pcs]
142
Operation Ambient Temp [°C] [max]
72 °C
Operation Ambient Temp [°C] [min]
-40 °C
Operation Ambient Temp [°F] [max]
162 °F
Operation Ambient Temp [°F] [min]
-40 °F
Outlet connection type
Solder, ODF
Outlet size [in]
7/8 in
Outlet size [mm]
22.2 mm
Packing format
Multi pack
Part Number
DF0101
PED category
II
Product accessories
No
Product group
Heat exchangers
Product Name Description

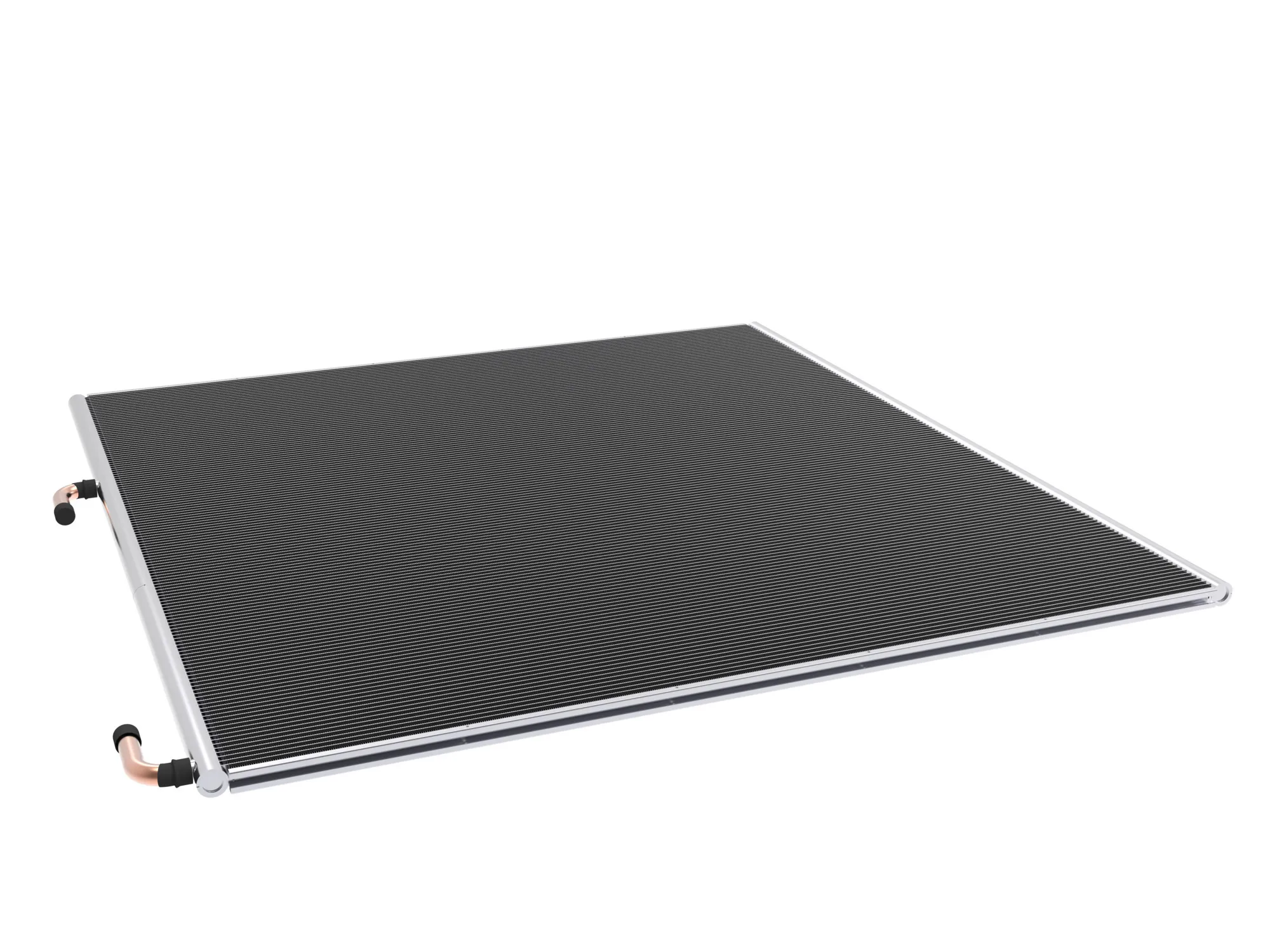

Micro Channel heat exchanger
Quantity per packing format
8 pc
Rated cap. conditions [IMP]
Air speed=492 ft/min,Ambient temp.=95 °F,Delta t=21.6 °F,Subcooling=9 °F
Rated cap. conditions [SI]
Air speed=2.5 m/s,Ambient temp.=35 °C,Delta t=12 °C,Subcooling=5 °C
Rated capacity R410A [kW]
50.7 kW
Rated capacity R410A [TR]
14.42 TR
REACH Candidate List substances
No
Refrigerants
R410A,R134a,R290,R32,R452B,R454B,R1234yf,R404A,R407C,R448A,R449A,R452A,R513A,R1234ze(E),R22,R444B,R449B,R454A,R454C,R455A,R513B,R514A,R515A,R515B,R600a
Serviceable
No
Temperature range [°C] [max]
121 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
250 °F
Temperature range [°F] [min]
-40 °F
Type
MCHE D1900-C
Type designation
D1900-C
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UL evaluated
Yes
Design Changes to Reduce Refrigerant Charge Standard MCHE Condenser Micro Channel Heat Exchanger, type MCHE D1900-C MCHE installation guide - Multilingual EАС KZ 7100841.13.12.01130 Danfoss MD CN-ROHS-DoC-202306-01.01 Danfoss MD EU-ROHS-DoC-202306-01 Danfoss MD UK-ROHS-MOD-202306-01.01 BV CE-0062-PED-H-DMC 001-23-CHN-Rev.A Micro Channel heat exchanger_MCHE_021U X0-DF0101-08 X0-DF0101-08
