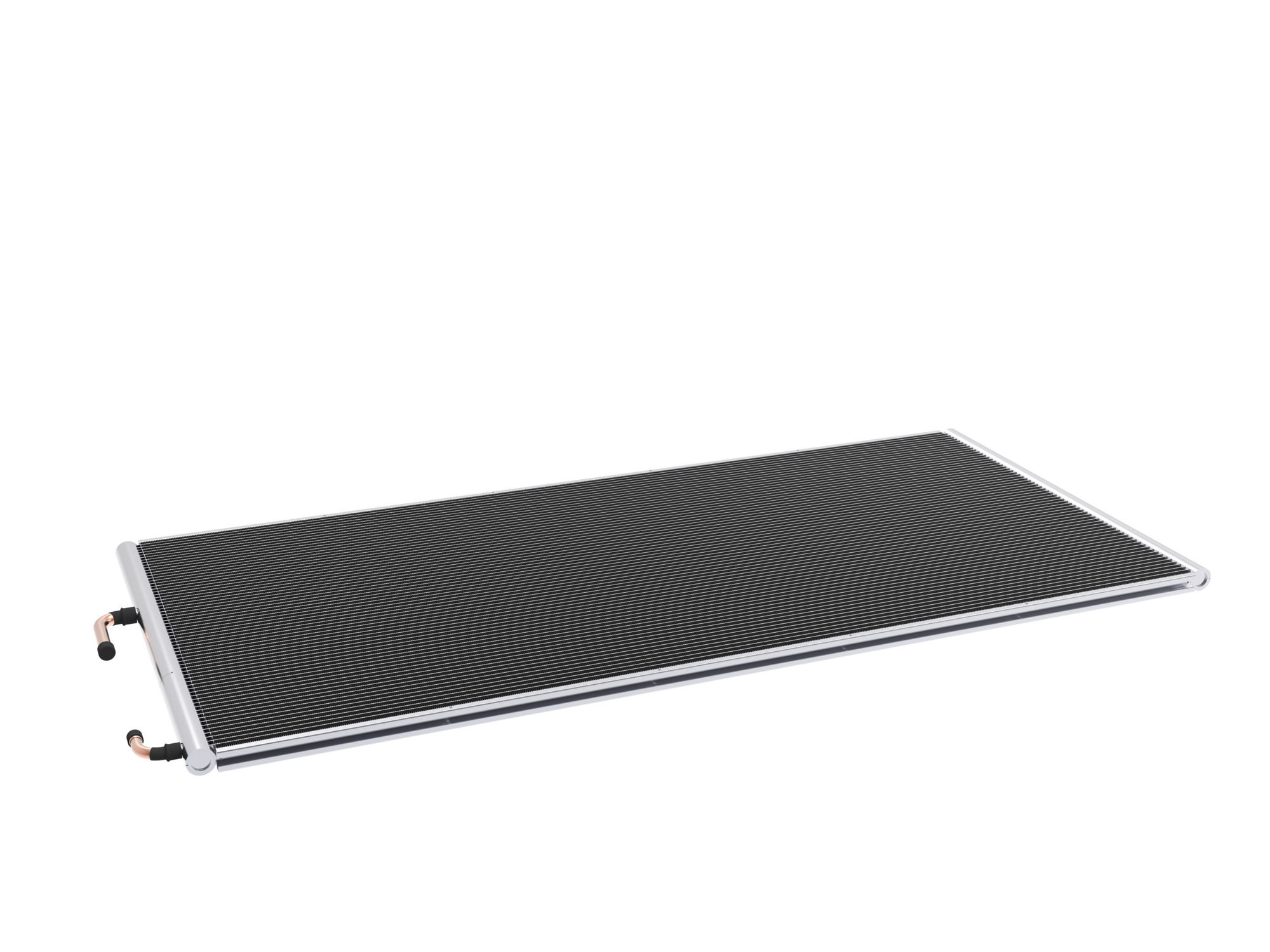

021U0092

Part Number: 021U0092
021U0092
Manufacturer
Danfoss
Part number
021U0092
Category

Product Information

Extended Description

021U0092 Danfoss: Rated capacity R410A [kW]: 24.30, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Gross weight
13.1 Kilogram
Net weight
9.856 Kilogram
Volume
68.906 Liter
EAN
5702424291846
Application area
Chiller,Refrigeration,Air Conditioning
Approval
EAC,PED,UL
Approval file name
SA33862,CE-0062-PED-H-DMC 001-20-CHN-A,ЕАЭС KZ 7100841.13.12.01130
Body material
Aluminium
China RoHS compliance
Yes
Coil depth [in]
1 in
Coil depth [mm]
25.4 mm
Coil height [in]
25.16 in
Coil height [mm]
639.1 mm
Coil Length [in]
52.13 in
Coil Length [mm]
1324 mm
Connection material
Copper
Contain batteries
No
Design pressure [MPa]
4.5 MPa
Design pressure [psig]
653 psig
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fin pitch [mm]
1.1 mm
Flow direction
Single-flow
Fluid Group
1,2
Identical product
021U0085
Inlet connection type
Solder, ODF
Inlet size [in]
5/8 in
Inlet size [mm]
15.88 mm
Internal volume [cm3]
1630 cm³
Internal volume [in3]
99.5 in³
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Mounting bar material
Aluminium
Number of tubes [pcs]
65
Operation Ambient Temp [°C] [max]
72 °C
Operation Ambient Temp [°C] [min]
-40 °C
Operation Ambient Temp [°F] [max]
162 °F
Operation Ambient Temp [°F] [min]
-40 °F
Outlet connection type
Solder, ODF
Outlet size [in]
1/2 in
Outlet size [mm]
12.7 mm
Packing format
Industrial pack
Part Number
DF0091
PED category
II
Product accessories
No
Product group
Heat exchangers
Product Name Description
Micro Channel heat exchanger
Quantity per packing format
12 pc
Rated cap. conditions [IMP]
Air speed=492 ft/min,Ambient temp.=95 °F,Delta t=21.6 °F,Subcooling=9 °F
Rated cap. conditions [SI]
Air speed=2.5 m/s,Ambient temp.=35 °C,Delta t=12 °C,Subcooling=5 °C
Rated capacity R410A [kW]
24.3 kW
Rated capacity R410A [TR]
6.91 TR
REACH Candidate List substances
No
Refrigerants
R410A,R134a,R290,R32,R452B,R454B,R1234yf,R404A,R407C,R448A,R449A,R452A,R513A,R1234ze(E),R22,R444B,R449B,R454A,R454C,R455A,R513B,R514A,R515A,R515B,R600a
Serviceable
No
Temperature range [°C] [max]
121 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
250 °F
Temperature range [°F] [min]
-40 °F
Type
MCHE D1700-C
Type designation
D1700-C
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UL evaluated
Yes
Design Changes to Reduce Refrigerant Charge Standard MCHE Condenser Micro Channel Heat Exchanger, type MCHE D1700-C MCHE installation guide - Multilingual EАС KZ 7100841.13.12.01130 Danfoss MD CN-ROHS-DoC-202306-01.01 Danfoss MD EU-ROHS-DoC-202306-01 Danfoss MD UK-ROHS-MOD-202306-01.01 BV CE-0062-PED-H-DMC 001-23-CHN-Rev.A Micro Channel heat exchanger_MCHE_021U X0-DF0091-07 X0-DF0091-07
