021U0743
Part Number: 021U0743
Product Information
Extended Description
021U0743 Danfoss: Rated capacity R410A [kW]: 8.70, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Gross weight
2.68 Kilogram
Net weight
2.675 Kilogram
Volume
5.701 Liter
EAN
5715162687673
Application area
Air Conditioning
Body material
Aluminium
China RoHS compliance
Yes
Coil depth [in]
0.63 in
Coil depth [mm]
16 mm
Coil height [in]
19.67 in
Coil height [mm]
499.5 mm
Coil Length [in]
28.03 in
Coil Length [mm]
712 mm
Connection material
Copper
Contain batteries
No
Design pressure [MPa]
4.5 MPa
Design pressure [psig]
653 psig
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fin pitch [mm]
1.1 mm
Flow direction
Single-flow
Identical product
021U0643
Inlet connection type
Solder, ODF
Inlet size [in]
1/2 in
Inlet size [mm]
12.7 mm
Internal volume [cm3]
2790 cm³
Internal volume [in3]
170.2 in³
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Mounting bar material
Aluminium
Number of tubes [pcs]
52
Operation Ambient Temp [°C] [max]
72 °C
Operation Ambient Temp [°C] [min]
-40 °C
Operation Ambient Temp [°F] [max]
162 °F
Operation Ambient Temp [°F] [min]
-40 °F
Outlet connection type
Solder, ODF
Outlet size [in]
1/2 in
Outlet size [mm]
12.7 mm
Packing format
Industrial pack
Part Number
DF0031
Product accessories
No
Product group
Heat exchangers
Product Name Description

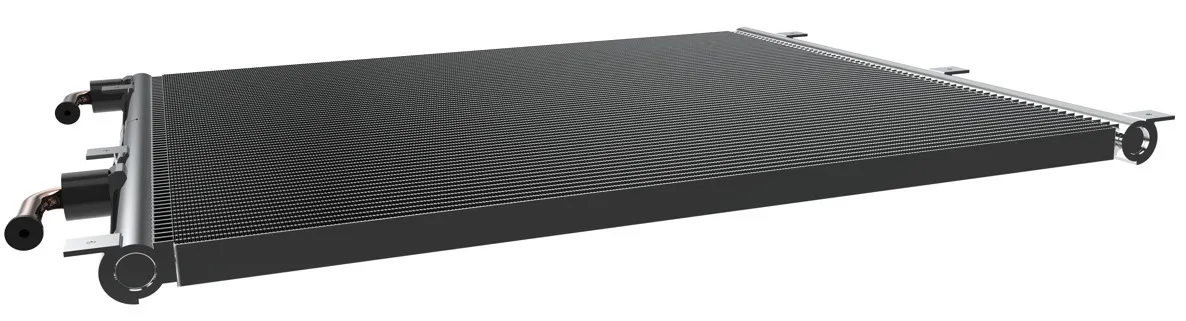

Micro Channel heat exchanger
Quantity per packing format
12 pc
Rated cap. conditions [IMP]
Air speed=492 ft/min,Ambient temp.=95 °F,Delta t=21.6 °F,Subcooling=9 °F
Rated cap. conditions [SI]
Air speed=2.5 m/s,Ambient temp.=35 °C,Delta t=12 °C,Subcooling=5 °C
Rated capacity R410A [kW]
8.7 kW
Rated capacity R410A [TR]
2.46 TR
REACH Candidate List substances
No
Refrigerants
R410A
Serviceable
No
Temperature range [°C] [max]
121 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
250 °F
Temperature range [°F] [min]
-40 °F
Type
MCHE C116
UK RoHS compliance
Yes
