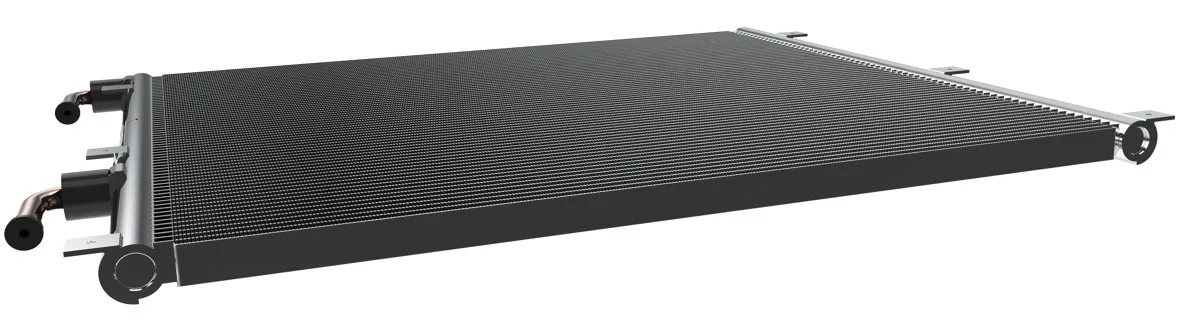

021U0744
Part Number: 021U0744
Product Information
Extended Description
021U0744 Danfoss: Rated capacity R410A [kW]: 13.40, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Gross weight
5.945 Kilogram
Net weight
5.94 Kilogram
Volume
12.398 Liter
EAN
5715162687680
Application area
Air Conditioning
Body material
Aluminium
China RoHS compliance
Yes
Coil depth [in]
1 in
Coil depth [mm]
25.4 mm
Coil height [in]
25.59 in
Coil height [mm]
649.9 mm
Coil Length [in]
29.53 in
Coil Length [mm]
750 mm
Connection material
Copper
Contain batteries
No
Design pressure [MPa]
4.5 MPa
Design pressure [psig]
653 psig
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fin pitch [mm]
1.1 mm
Flow direction
Single-flow
Identical product
021U0644
Inlet connection type
Solder, ODF
Inlet size [in]
5/8 in
Inlet size [mm]
15.88 mm
Internal volume [cm3]
1270 cm³
Internal volume [in3]
77.5 in³
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Mounting bar material
Aluminium
Number of tubes [pcs]
68
Operation Ambient Temp [°C] [max]
72 °C
Operation Ambient Temp [°C] [min]
-40 °C
Operation Ambient Temp [°F] [max]
162 °F
Operation Ambient Temp [°F] [min]
-40 °F
Outlet connection type
Solder, ODF
Outlet size [in]
5/8 in
Outlet size [mm]
15.88 mm
Packing format
Industrial pack
Part Number
DF0041
Product accessories
No
Product group
Heat exchangers
Product Name Description
Micro Channel heat exchanger
Quantity per packing format
8 pc
Rated cap. conditions [IMP]
Air speed=492 ft/min,Ambient temp.=95 °F,Delta t=21.6 °F,Subcooling=9 °F
Rated cap. conditions [SI]
Air speed=2.5 m/s,Ambient temp.=35 °C,Delta t=12 °C,Subcooling=5 °C
Rated capacity R410A [kW]
13.4 kW
Rated capacity R410A [TR]
3.81 TR
REACH Candidate List substances
No
Refrigerants
R410A
Serviceable
No
Temperature range [°C] [max]
121 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
250 °F
Temperature range [°F] [min]
-40 °F
Type
MCHE C125
UK RoHS compliance
Yes
