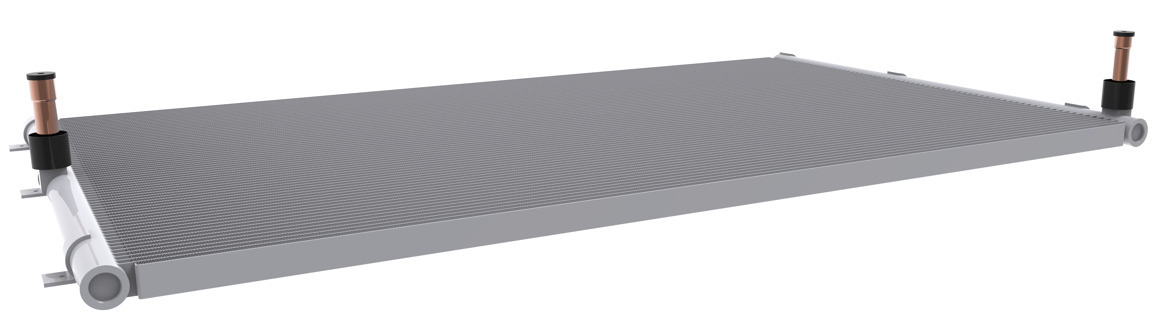

021U0746
Part Number: 021U0746
Product Information
Extended Description
021U0746 Danfoss: Rated capacity R410A [kW]: 36.90, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Gross weight
14.583 Kilogram
Net weight
14.578 Kilogram
Volume
32.502 Liter
EAN
5702424691615
Application area
Air Conditioning
Body material
Aluminium
China RoHS compliance
Yes
Coil depth [in]
1 in
Coil depth [mm]
25.4 mm
Coil height [in]
35.95 in
Coil height [mm]
913.1 mm
Coil Length [in]
55.12 in
Coil Length [mm]
1400 mm
Connection material
Copper
Contain batteries
No
Design pressure [MPa]
4.5 MPa
Design pressure [psig]
653 psig
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fin pitch [mm]
1.1 mm
Flow direction
Single-flow
Fluid Group
II
Identical product
021U0646
Inlet connection type
Solder, ODF
Inlet size [in]
7/8 in
Inlet size [mm]
22.2 mm
Internal volume [cm3]
2490 cm³
Internal volume [in3]
151.9 in³
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Mounting bar material
Aluminium
Number of tubes [pcs]
96
Operation Ambient Temp [°C] [max]
72 °C
Operation Ambient Temp [°C] [min]
-40 °C
Operation Ambient Temp [°F] [max]
162 °F
Operation Ambient Temp [°F] [min]
-40 °F
Outlet connection type
Solder, ODF
Outlet size [in]
5/8 in
Outlet size [mm]
15.88 mm
Packing format
Industrial pack
Part Number
DF0061
Product accessories
No
Product group
Heat exchangers
Product Name Description
Micro Channel heat exchanger
Quantity per packing format
6 pc
Rated cap. conditions [IMP]
Subcooling=9 °F
Rated cap. conditions [SI]
Subcooling=5 °C
Rated capacity R410A [kW]
36.9 kW
Rated capacity R410A [TR]
10.49 TR
REACH Candidate List substances
No
Refrigerants
R410A
Serviceable
No
Temperature range [°C] [max]
121 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
250 °F
Temperature range [°F] [min]
-40 °F
Type
MCHE C125
UK RoHS compliance
Yes
