021U1295
Part Number: 021U1295
Product Information
Extended Description
021U1295 Danfoss: Rated capacity R410A [kW]: 37.20, Design pressure [MPa]: 4.5, Temperature range [°C]: -40 - 121
Gross weight
24.351 Kilogram
Net weight
18.2 Kilogram
Volume
107.402 Liter
EAN
5715162525685
Application area
Air Conditioning,Chiller,Refrigeration
Approval
EAC,PED,UL
Approval file name
CE-0062-PED-H-DMC 001-20-CHN-A,SA33862,ЕАЭС KZ 7100841.13.12.01130
Body material
Aluminium
China RoHS compliance
Yes
Coil depth [in]
1 in
Coil depth [mm]
25.4 mm
Coil height [in]
47.74 in
Coil height [mm]
1212.5 mm
Coil Length [in]
42.28 in
Coil Length [mm]
1074 mm
Connection material
Copper
Contain batteries
No
Design pressure [MPa]
4.5 MPa
Design pressure [psig]
653 psig
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fin pitch [mm]
1.1 mm
Flow direction
Single-flow
Fluid Group
1,2
Identical product
021U1527
Inlet connection type
Solder, ODF
Inlet size [in]
7/8 in
Inlet size [mm]
22.2 mm
Internal volume [cm3]
2790 cm³
Internal volume [in3]
170.3 in³
Max. Working Pressure [bar]
45 bar
Max. Working Pressure [psig]
653 psig
Mounting bar material
Aluminium
Number of tubes [pcs]
126
Operation Ambient Temp [°C] [max]
72 °C
Operation Ambient Temp [°C] [min]
-40 °C
Operation Ambient Temp [°F] [max]
162 °F
Operation Ambient Temp [°F] [min]
-40 °F
Outlet connection type
Solder, ODF
Outlet size [in]
7/8 in
Outlet size [mm]
22.2 mm
Packing format
Multi pack
Part Number
DF0071E
PED category
II
Product accessories
No
Product group
Heat exchangers
Product Name Description

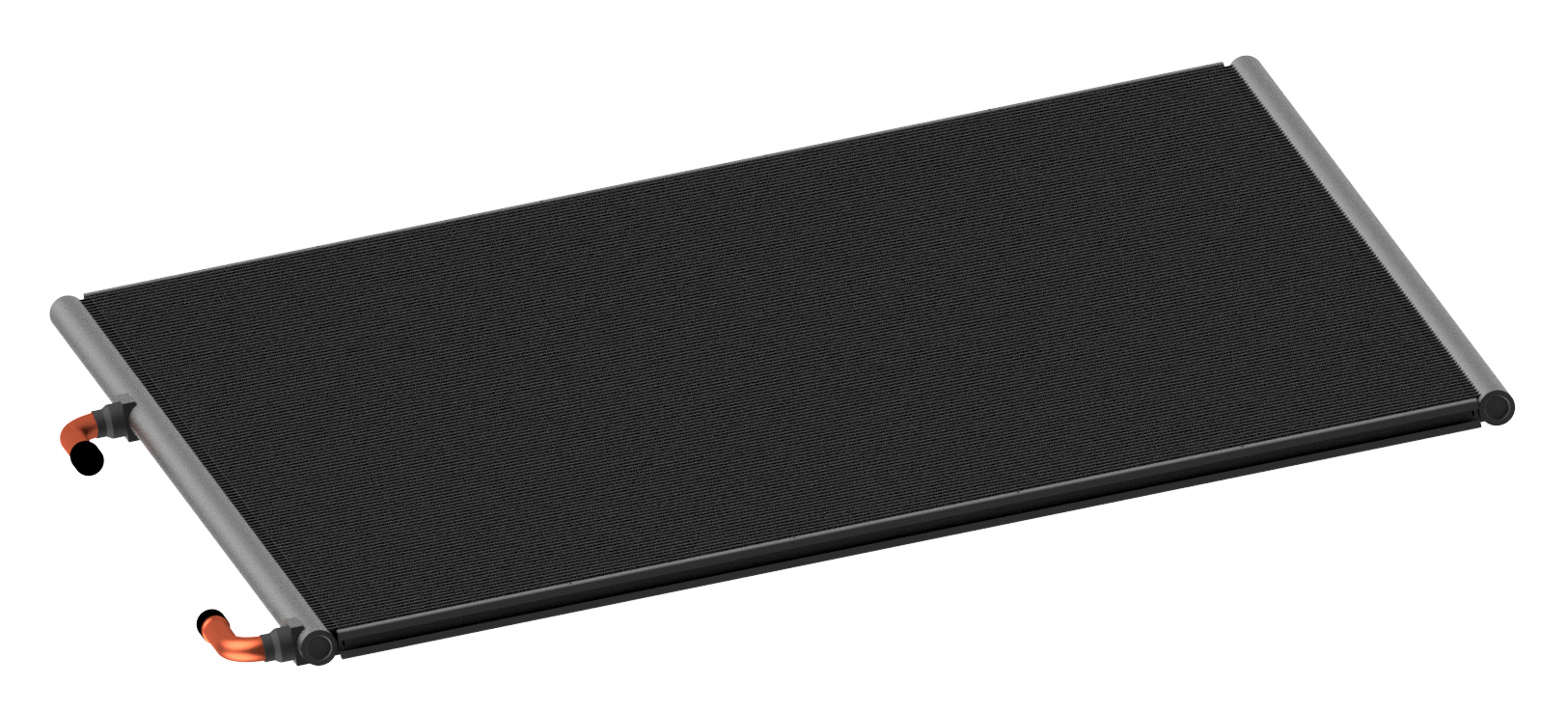

Micro Channel heat exchanger
Quantity per packing format
8 pc
Rated cap. conditions [IMP]
Air speed=492 ft/min,Ambient temp.=95 °F,Delta t=21.6 °F,Subcooling=9 °F
Rated cap. conditions [SI]
Air speed=2.5 m/s,Ambient temp.=35 °C,Delta t=12 °C,Subcooling=5 °C
Rated capacity R410A [kW]
37.2 kW
Rated capacity R410A [TR]
10.58 TR
REACH Candidate List substances
No
Refrigerants
R1234yf,R1234ze(E),R134a,R22,R290,R32,R404A,R407C,R410A,R444B,R448A,R449A,R449B,R452A,R452B,R454A,R454B,R454C,R455A,R513A,R513B,R514A,R515A,R515B,R600a
Serviceable
No
Temperature range [°C] [max]
121 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
250 °F
Temperature range [°F] [min]
-40 °F
Type
MCHE D1800-C
Type designation
D1800-C
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
UK RoHS compliance
Yes
UL evaluated
Yes
