023U7286

Part Number: 023U7286
023U7286
Manufacturer
Danfoss
Part number
023U7286
Category

Product Information

Extended Description

023U7286 Danfoss: Core Size code: 48 cu.in., Connection material: Copper, Connection Solder size [in]: 1 3/8 in, Connection Solder size [mm]: 35.00
Gross weight
5.312 Kilogram
Net weight
5.312 Kilogram
Volume
14.222 Liter
EAN
5702428202459
Approval
CE,CSA,UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Connection Solder size [in]
1 3/8 in
Connection Solder size [mm]
35 mm
Connection type
Solder, ODF
Contain batteries
No
Core Size code
48 cu.in.
Cover
Blank
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Liq Cap [Kw]
R1234ze: 182.0,R134a: 205.0,R404A: 144.2,R407C: 210.1,R410A: 213.3,R452A: 146.0,R507: 139.8
Liq Cap [TR]
R1234ze: 51.8,R134a: 58.3,R404A: 41.0,R407C: 59.7,R410A: 60.7,R452A: 41.5,R507: 39.8
LiqCap Cond (ARI 710-2009)[SI]
Delta p=0.07bar,tliq= 30°C,tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=1psi,tliq= 86°F,tvap=5°F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Net volume [foz US]
50.44 Fluid Ounce US
Net volume [l]
1.492 L
Number of cores
1
Oil free refrigerants
R134a,R513A,R515A
Packing format
Single pack
Parts included
1 cov,2 felt gaskets,8 Bolts
Parts Program name
DCR
PED category
I
Product accessories
DCR accessories
Product description
Refrigerant Filter Drier
Product group
Filter driers
Product Name Description
Filter drier, shell
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1234ze(E),R125,R134a,R22/R407C,R23,R404A,R407A,R407F,R410A,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
Serviceable
DCR spare parts
Shell volume [foz US]
65.76 Fluid Ounce US
Shell volume [l]
1.94 L
Temperature range [°C] [max]
70 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
160 °F
Temperature range [°F] [min]
-40 °F
Type
DCR
Type designation
DCR 04811s
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
UL evaluated
Yes

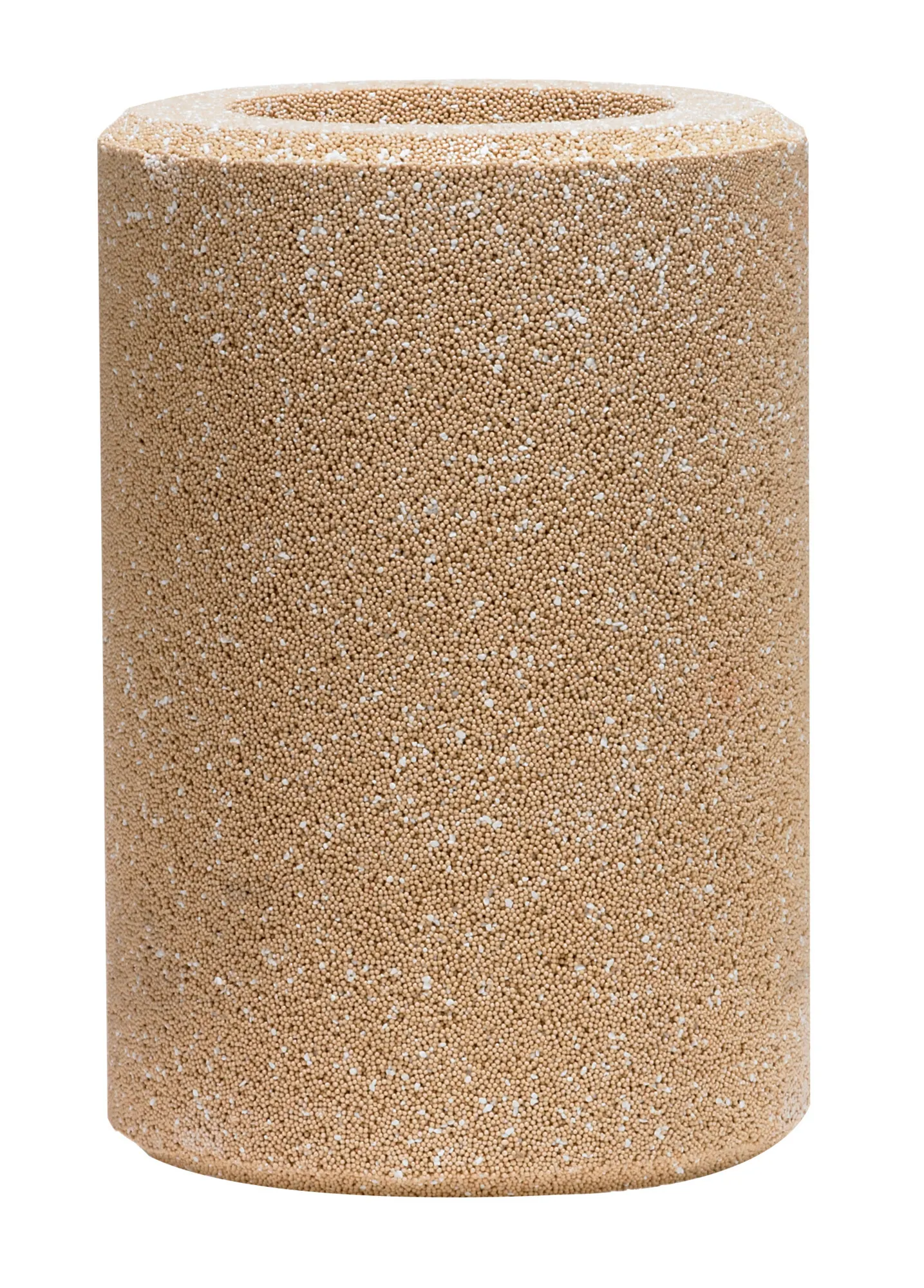

Strainers - Industrial Refrigeration product group catalogue Filter drier, shell types DCR and DCRE Filter Driers 023U and 023Z UL SA6398 19980330 US-CA DM core for DCR filter drier 48-DM filter drier core, code number 023U1391 DCR solid core
