023U7337

Part Number: 023U7337
023U7337
Manufacturer
Danfoss
Part number
023U7337
Category

Product Information

Extended Description

023U7337 Danfoss: Core Size code: 96 cu.in., Connection material: Copper, Connection Solder size [in]: 2 1/8 in, Connection Solder size [mm]: 54.00
Gross weight
6.12 Kilogram
Net weight
6.107 Kilogram
Volume
20.339 Liter
EAN
5715162705544
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
Connection material
Copper
Connection Solder size [in]
2 1/8 in
Connection Solder size [mm]
54 mm
Connection type
Solder, ODF
Contain batteries
No
Core Size code
96 cu.in.
Cover
Plug
Flow direction indicator
Label printed 1-way arrow
Fluid Group
I,II
Liq Cap [Kw]
R1234yf: 259.3,R32: 545.6,R444B: 415.9,R452B: 454.8,R454B: 465.5
Liq Cap [TR]
R1234yf: 73.7,R32: 155.1,R444B: 118.3,R452B: 129.3,R454B: 132.4
LiqCap Cond (ARI 710-2009)[SI]
Delta p=0.07bar,tliq= 30°C,tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=1psi,tliq= 86°F,tvap=5°F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Net volume [foz US]
85.05 Fluid Ounce US
Net volume [l]
2.515 L
Number of cores
2
Oil free refrigerants
R1234ze(E),R516A
Packing format
Single pack
Parts included
1 cov,4 felt gaskets,8 Bolts
Parts Program name
DCR
Product accessories
DCR accessories
Product description
Refrigerant Filter Drier
Product group
Filter driers
Product Name Description
Filter drier, shell
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R1234yf,R1234ze(E),R32,R444B,R452B,R454A,R454B,R454C,R455A,R457A,R516A
Serviceable
DCR spare parts
Shell volume [foz US]
114.48 Fluid Ounce US
Shell volume [l]
3.38 L
Temperature range [°C] [max]
90 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
195 °F
Temperature range [°F] [min]
-40 °F
Type
DCR/H
Type designation
DCR 09617s/H
UL approval file name
SA6398
UL approved refrigerants
R1234yf,R1234ze(E),R32,R444B,R452B,R454A,R454B,R454C,R455A,R457A,R516A
UL evaluated
Yes

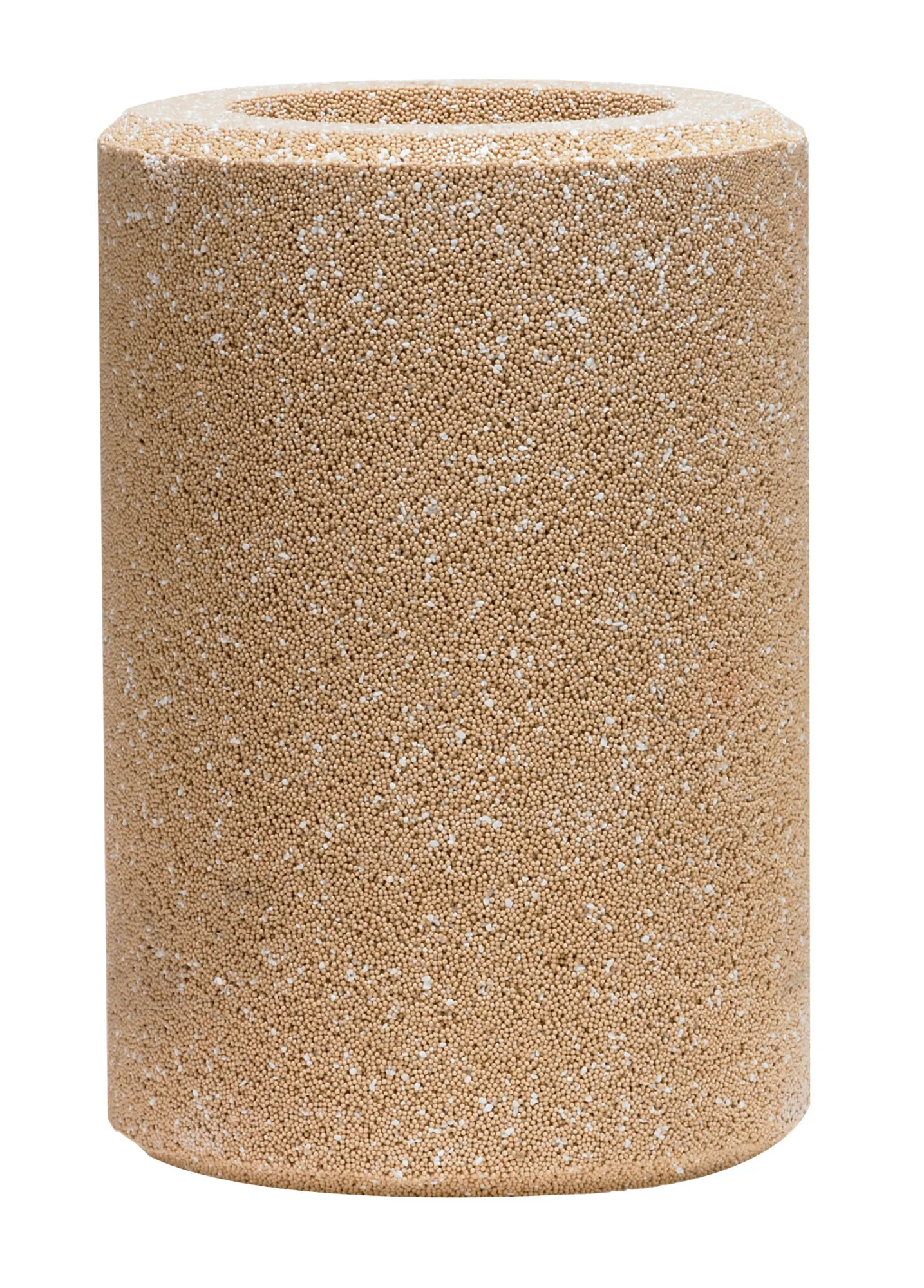

Strainers - Industrial Refrigeration product group catalogue Filter drier, shell types DCR and DCRE Filter Driers 023U and 023Z UL SA6398 19980330 US-CA DM core for DCR filter drier 48-DM filter drier core, code number 023U1391 DCR solid core
