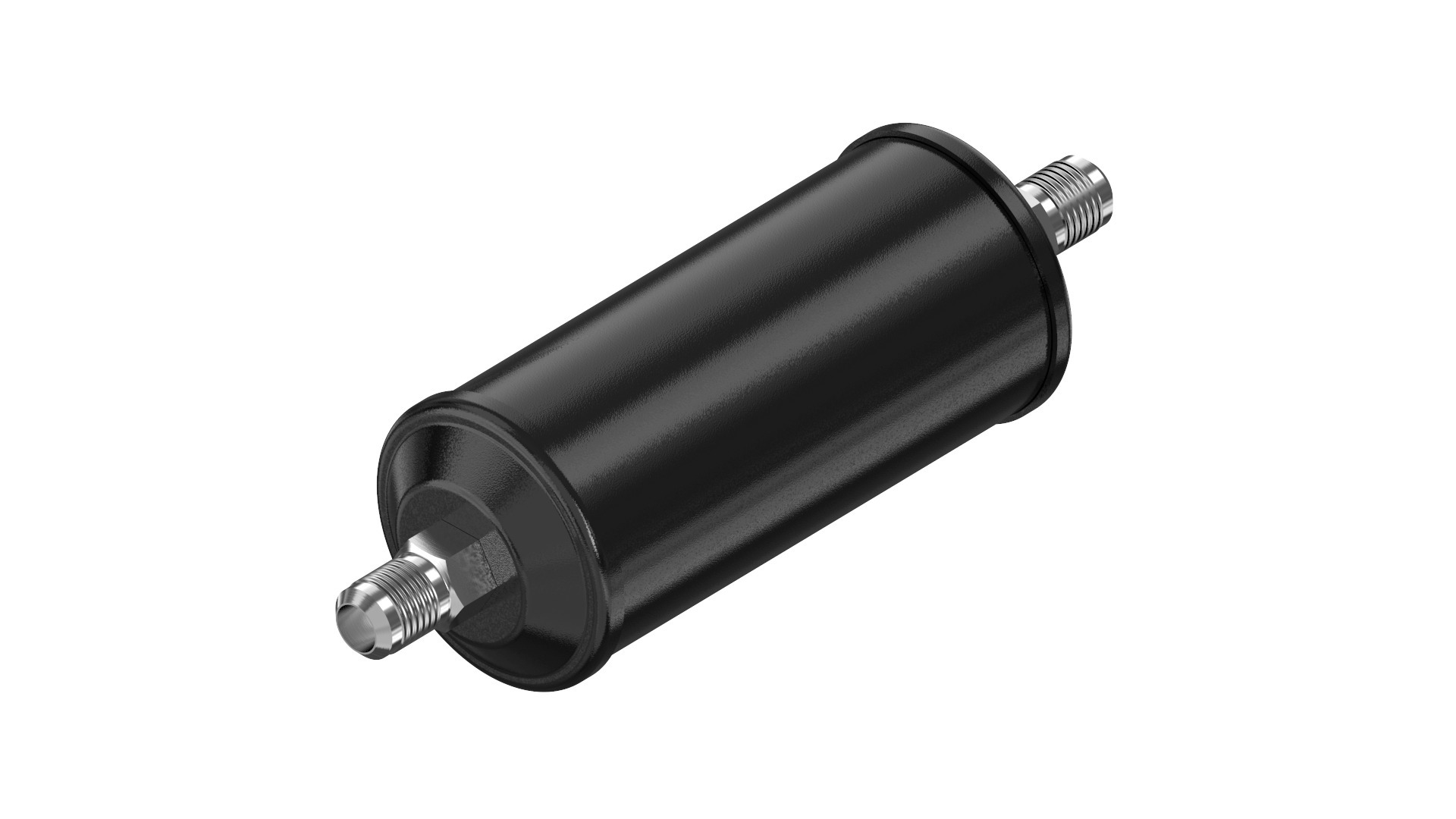

023Z0012

Part Number: 023Z0012
023Z0012
Manufacturer
Danfoss
Part number
023Z0012
Category

Product Information

Extended Description

023Z0012 Danfoss: Inlet connection type: Flare, Outlet connection type: Flare, Core Size code: 30 cu.in.
Gross weight
1.409 Kilogram
Net weight
1.284 Kilogram
Volume
2.047 Liter
EAN
5702428160216
Acid capacity [g]
6.23 g
Acid capacity [oz]
0.22 oz
Activated alum/Molec sieve [%]
20% / 80%
Activated alumina [%]
20 %
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
China RoHS compliance
Yes exceed limitations
Connection material
Steel
Contain batteries
No
Core
Solid core
Core Size code
30 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24=C2=B0C
R134a: 888,R290: --,R32: 748,R404A: 925,R407C: 863,R410A: 804,R507: 969
Drying Cap[Drops of Water]52=C2=B0C
R134a: 813,R290: --,R32: 688,R404A: 877,R407C: 795,R410A: 715,R507: 872
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Filter application
Std Moisture & Acid Capacity
Flow capacity [kW]
R134a: 19.3,R290: --,R32: 29.5,R404A: 13.6,R407C: 19.8,R410A: 20.1,R507: 13.2
Flow capacity [TR]
R134a: 5.5,R290: --,R32: 8.4,R404A: 3.9,R407C: 5.6,R410A: 5.7,R507: 3.8
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Inlet 1 connection size [in]
3/8 in
Inlet connection size [mm]
10 mm
Inlet connection type
Flare
LiqCap Cond (ARI 710-2009)[SI]
Delta p=3D0.07bar,tliq=3D 30=C2=B0C,tvap=3D-15=C2=B0C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=3D1psi,tliq=3D 86=C2=B0F,tvap=3D5=C2=B0F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
80 %
Net volume [foz US]
15.68 Fluid Ounce US
Net volume [l]
0.464 L
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A
Outlet 1 connection size [in]
3/8 in
Outlet connection size [mm]
10 mm
Outlet connection type
Flare
Packing format
Multi pack
PED category
Art. 4, par. 3
Product accessories
Generic accessories
Product description
Liquid line filter drier
Product group
Filter driers
Product Name Description
Hermetic filter drier
Quantity per packing format
8 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R22/R407C,R23,R32,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R516A
Serviceable
No
Shell volume [foz US]
24.42 Fluid Ounce US
Shell volume [l]
0.72 L
Solid core surface [cm2]
340 cm=C2=B2
Solid core surface [in2]
52.7 in=C2=B2
Solid core volume [cm3]
258 cm=C2=B3
Solid core volume [in3]
15.77 in=C2=B3
Temperature range [=C2=B0C] [max]
70 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
160 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
DCL
Type designation
DCL 303
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
UL evaluated
Yes
