023Z1414
Part Number: 023Z1414
Product Information
Extended Description

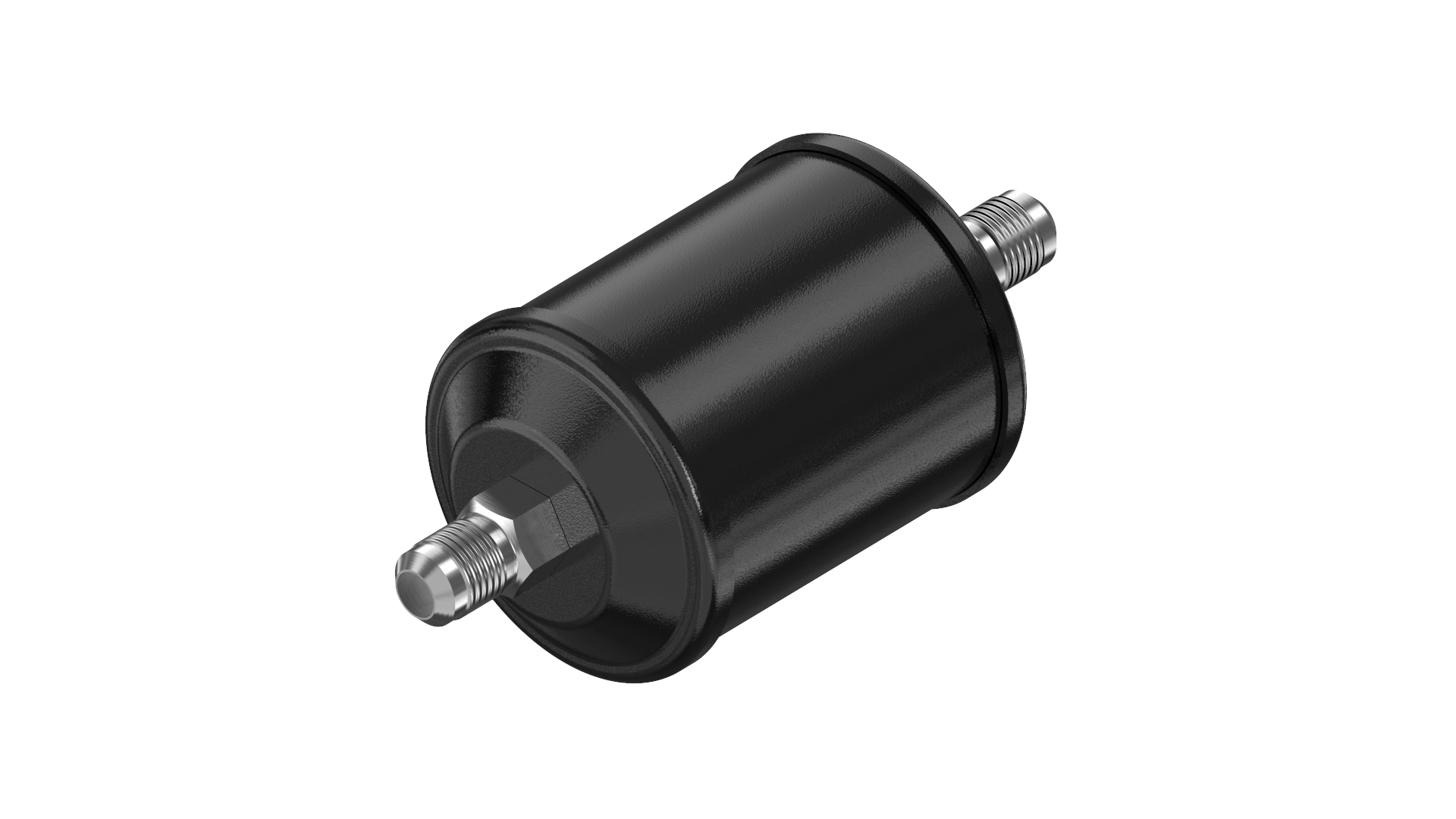

023Z1414 Danfoss: Inlet connection type: Flare, Outlet connection type: Flare, Core Size code: 16 cu.in.
Gross weight
1.02 Kilogram
Net weight
0.962 Kilogram
Volume
1.445 Liter
EAN
5702428104982
Acid capacity [g]
0.72 g
Acid capacity [oz]
0.025 oz
Activated alum/Molec sieve [%]
0% / 100%
Activated alumina [%]
0 %
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
China RoHS compliance
Yes exceed limitations
Connection material
Steel
Contain batteries
No
Core
Solid core
Core Size code
16 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24=C2=B0C
R134a: 337,R290: --,R32: 283,R404A: 351,R407C: 327,R410A: 305,R507: 367
Drying Cap[Drops of Water]52=C2=B0C
R134a: 308,R290: --,R32: 261,R404A: 332,R407C: 301,R410A: 271,R507: 331
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Filter application
High Moisture Capacity
Flow capacity [kW]
R134a: 19.7,R290: --,R32: 30.0,R404A: 13.8,R407C: 20.2,R410A: 20.5,R507: 13.4
Flow capacity [TR]
R134a: 5.6,R290: --,R32: 8.5,R404A: 3.9,R407C: 5.7,R410A: 5.8,R507: 3.8
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Inlet 1 connection size [in]
1/2 in
Inlet connection size [mm]
12 mm
Inlet connection type
Flare
LiqCap Cond (ARI 710-2009)[SI]
Delta p=3D0.07bar,tliq=3D 30=C2=B0C,tvap=3D-15=C2=B0C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=3D1psi,tliq=3D 86=C2=B0F,tvap=3D5=C2=B0F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
100 %
Net volume [foz US]
10.55 Fluid Ounce US
Net volume [l]
0.312 L
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A
Outlet 1 connection size [in]
1/2 in
Outlet connection size [mm]
12 mm
Outlet connection type
Flare
Packing format
Multi pack
PED category
Art. 4, par. 3
Product accessories
Generic accessories
Product description
Biflow filter drier
Product group
Filter driers
Product Name Description
Hermetic bi-flow filter drier
Quantity per packing format
12 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R22/R407C,R23,R32,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R516A
Serviceable
No
Shell volume [foz US]
14.15 Fluid Ounce US
Shell volume [l]
0.42 L
Solid core surface [cm2]
129 cm=C2=B2
Solid core surface [in2]
19.93 in=C2=B2
Solid core volume [cm3]
80 cm=C2=B3
Solid core volume [in3]
4.89 in=C2=B3
Temperature range [=C2=B0C] [max]
70 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
160 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
DMB
Type designation
DMB 164
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
UL evaluated
Yes
