023Z2089
Part Number: 023Z2089
Product Information
Extended Description

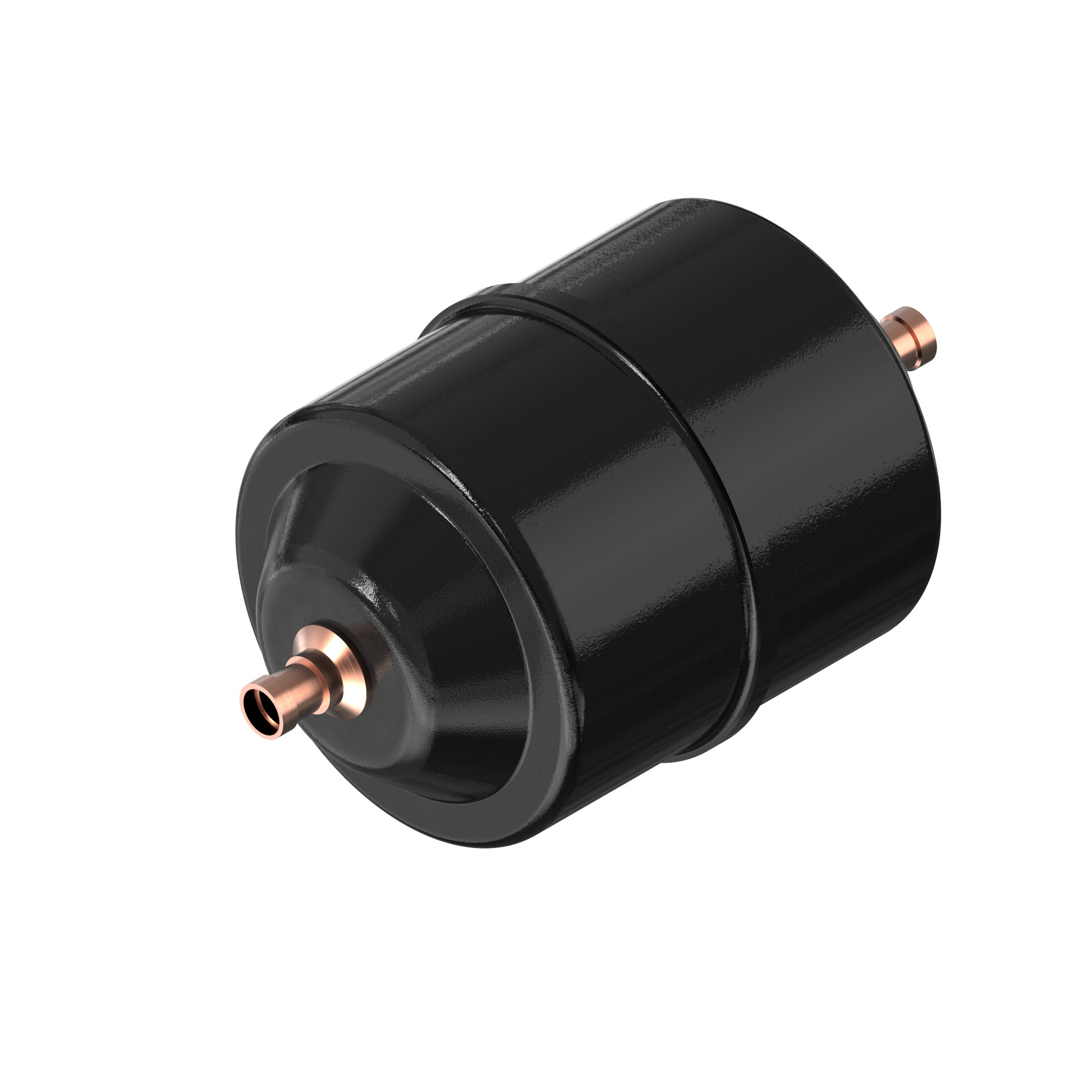

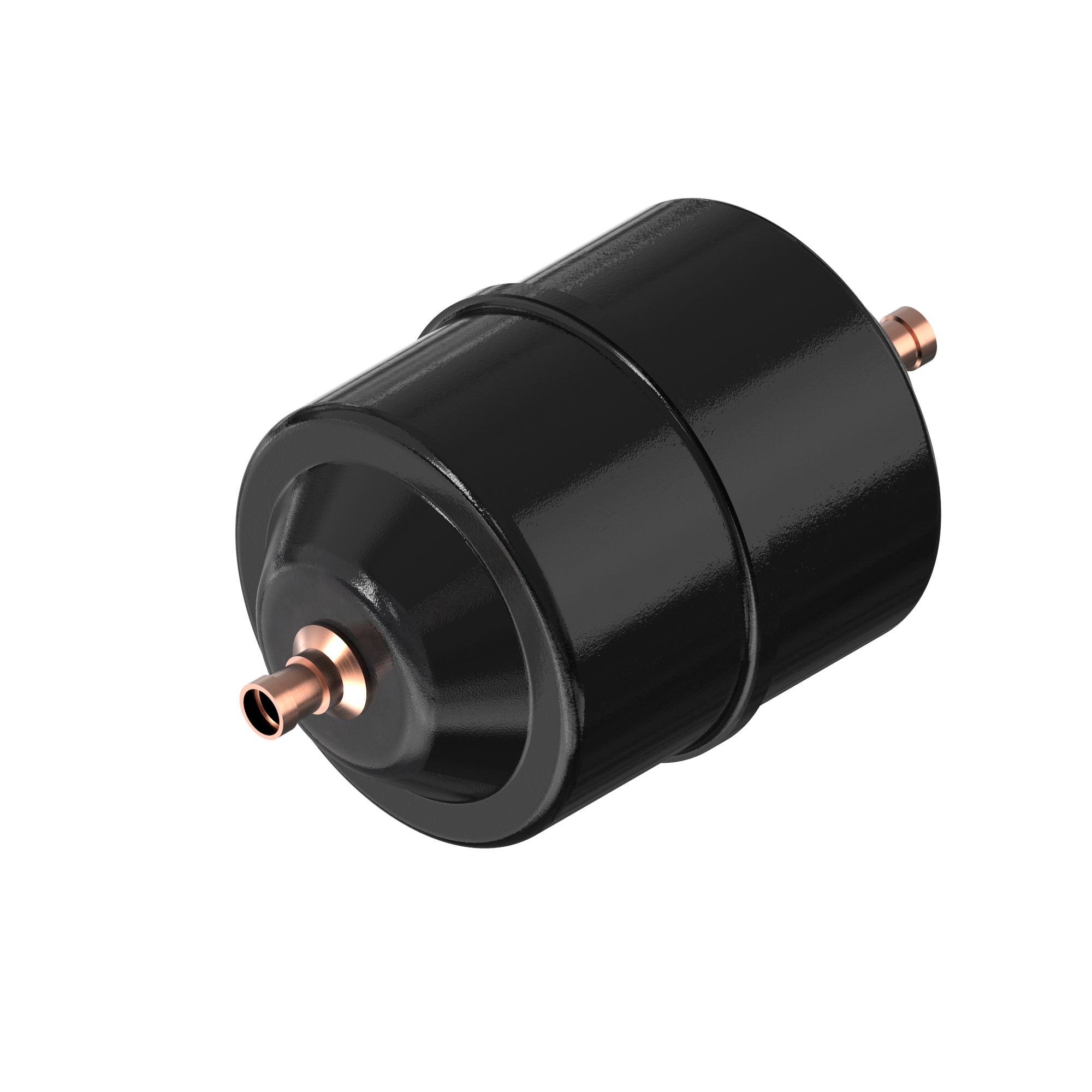

023Z2089 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 16 cu.in.
Gross weight
0.866 Kilogram
Net weight
0.782 Kilogram
EAN
5715162601655
Acid capacity [g]
1.86 g
Acid capacity [oz]
0.066 oz
Activated alum/Molec sieve [%]
20% / 80%
Activated alumina [%]
20 %
Approval
CMIM,EAC,PED,UA,UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
China RoHS compliance
Yes exceed limitations
Connection material
Steel Cu-plated
Contain batteries
No
Core
Solid core
Core Size code
16 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24=C2=B0C
R134a: 265,R290: 210,R32: 223,R404A: 276,R407C: 257,R410A: 240,R507: 289
Drying Cap[Drops of Water]52=C2=B0C
R134a: 243,R290: 168,R32: 205,R404A: 261,R407C: 237,R410A: 213,R507: 260
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Filter application
Std Moisture & Acid Capacity
Flow capacity [kW]
R134a: 23.0,R290: --,R32: 35.0,R404A: --,R407C: --,R410A: 24.0,R507: --
Flow capacity [TR]
R134a: 6.5,R290: --,R32: 10.0,R404A: --,R407C: --,R410A: 6.8,R507: --
Flow direction indicator
Label printed 2-way arrow
Fluid Group
2
Inlet 1 connection size [in]
5/8 in
Inlet connection type
Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]
Delta p=3D0.07bar,tliq=3D 30=C2=B0C,tvap=3D-15=C2=B0C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=3D1psi,tliq=3D 86=C2=B0F,tvap=3D5=C2=B0F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
80 %
Net volume [foz US]
3.88 Fluid Ounce US
Net volume [l]
0.115 L
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A
Outlet 1 connection size [in]
5/8 in
Outlet connection type
Solder, ODF
Packing format
Industrial pack
PED category
Art. 4, par. 3
Product accessories
Generic accessories
Product description
Biflow filter drier
Product group
Filter driers
Product Name Description
Hermetic bi-flow filter drier
Quantity per packing format
12 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R22/R407C,R23,R290,R32,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R516A,R600
Serviceable
No
Shell volume [foz US]
12 Fluid Ounce US
Shell volume [l]
0.35 L
Solid core surface [cm2]
129 cm=C2=B2
Solid core surface [in2]
19.93 in=C2=B2
Solid core volume [cm3]
80 cm=C2=B3
Solid core volume [in3]
4.89 in=C2=B3
Temperature range [=C2=B0C] [max]
70 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
160 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
DCB
Type designation
DCB 165S
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
UL evaluated
Yes
