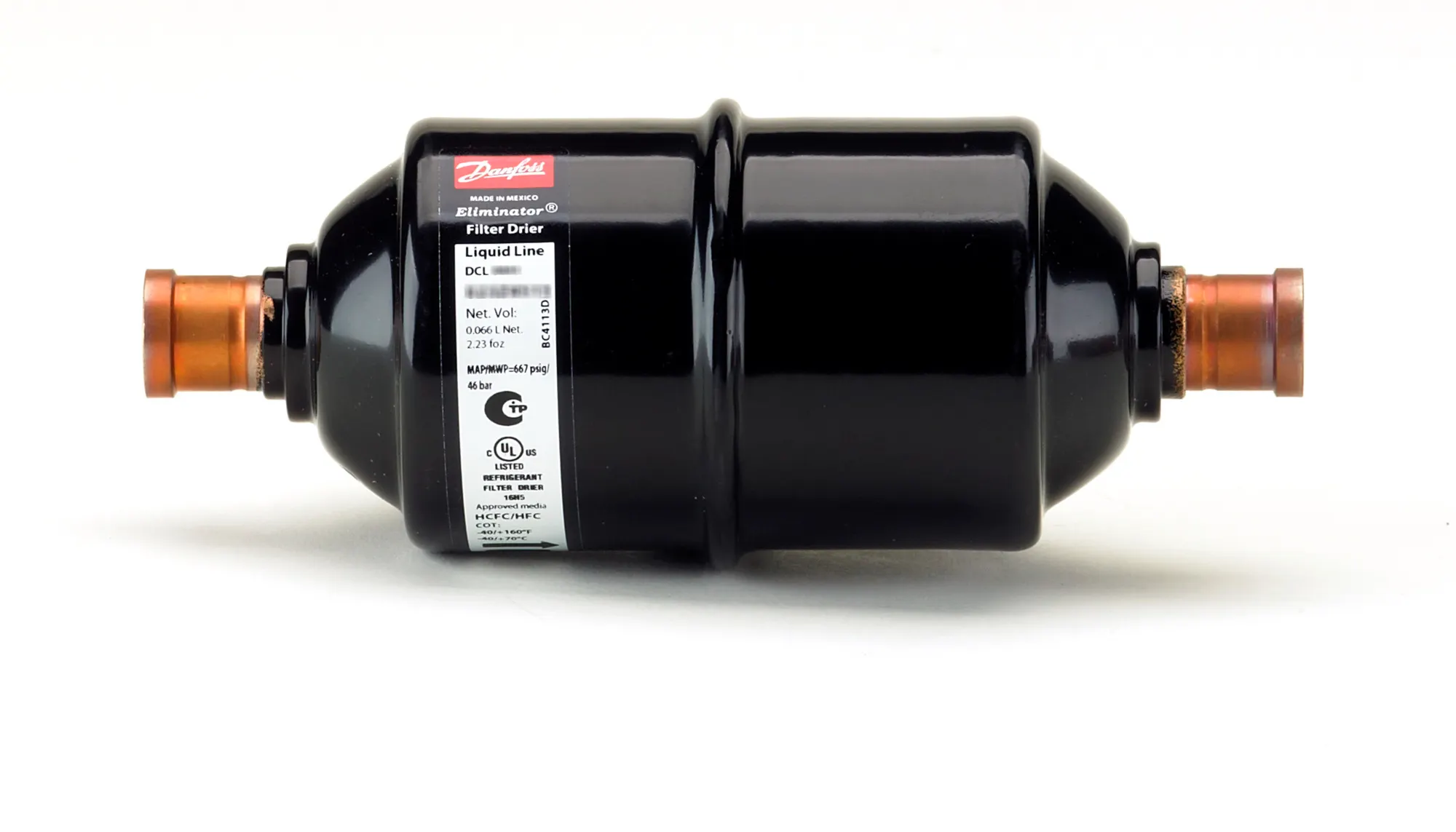

023Z4547

Part Number: 023Z4547
023Z4547
Manufacturer
Danfoss
Part number
023Z4547
Category

Product Information

Extended Description

023Z4547 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 60 cu.in.
Gross weight
2.42 Kilogram
Net weight
2.327 Kilogram
EAN
5702428107860
Acid capacity [g]
12.46 g
Acid capacity [oz]
0.44 oz
Activated alum/Molec sieve [%]
20% / 80%
Activated alumina [%]
20 %
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
China RoHS compliance
Yes exceed limitations
Connection material
Steel Cu-plated
Contain batteries
No
Core
Solid core
Core Size code
60 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24=C2=B0C
R134a: 1777,R290: --,R32: 1495,R404A: 1851,R407C: 1725,R410A: 1608,R507: 1938
Drying Cap[Drops of Water]52=C2=B0C
R134a: 1627,R290: --,R32: 1376,R404A: 1753,R407C: 1590,R410A: 1431,R507: 1744
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Filter application
Std Moisture & Acid Capacity
Flow capacity [kW]
R134a: 91.8,R290: --,R32: 140.0,R404A: 64.6,R407C: 94.1,R410A: 95.6,R507: 62.7
Flow capacity [TR]
R134a: 26.1,R290: --,R32: 39.8,R404A: 18.4,R407C: 26.8,R410A: 27.2,R507: 17.8
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Inlet 1 connection size [in]
1 1/8 in
Inlet connection type
Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]
Delta p=3D0.07bar,tliq=3D 30=C2=B0C,tvap=3D-15=C2=B0C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=3D1psi,tliq=3D 86=C2=B0F,tvap=3D5=C2=B0F
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
80 %
Net volume [foz US]
27.96 Fluid Ounce US
Net volume [l]
0.827 L
Outlet 1 connection size [in]
1 1/8 in
Outlet connection type
Solder, ODF
Packing format
Multi pack
PED category
Art. 4, par. 3
Product description
Liquid line filter drier
Product group
Filter driers
Product Name Description
Hermetic filter drier
Quantity per packing format
12 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R125,R134a,R22/R407C,R23,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R452A,R463A,R507A,R513A,R515B
Serviceable
No
Shell volume [foz US]
45.44 Fluid Ounce US
Shell volume [l]
1.34 L
Solid core surface [cm2]
680 cm=C2=B2
Solid core surface [in2]
105.4 in=C2=B2
Solid core volume [cm3]
517 cm=C2=B3
Solid core volume [in3]
31.54 in=C2=B3
Temperature range [=C2=B0C] [max]
70 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
160 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
DCL
Type designation
DCL 609S
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R452A,R507A,R513A
UL evaluated
Yes
Hermetic filter drier Type DML/DMLE and DCL/DCLE ELIMINATOR=C2=AE Hermetic filter drier Type DML / DMLE / DCL / DCLE ELIMINATOR=C2=AE Hermetic filter driers Type DCL with access port Filter drier with access port Product type DCL 01.5s, DCL 03s and DCL 05s High Runner Filter Drier Data Sheet Filter Driers 023U and 023Z Danfoss MD 023U9601.AI Danfoss MD 023Z9610.AA UL SA6398 19980330 US-CA TSSA CRN 0E24090.5123467890TNY DCL Filter drier (cu-plated)_023Z450491, 023Z480091, 023Z480191
