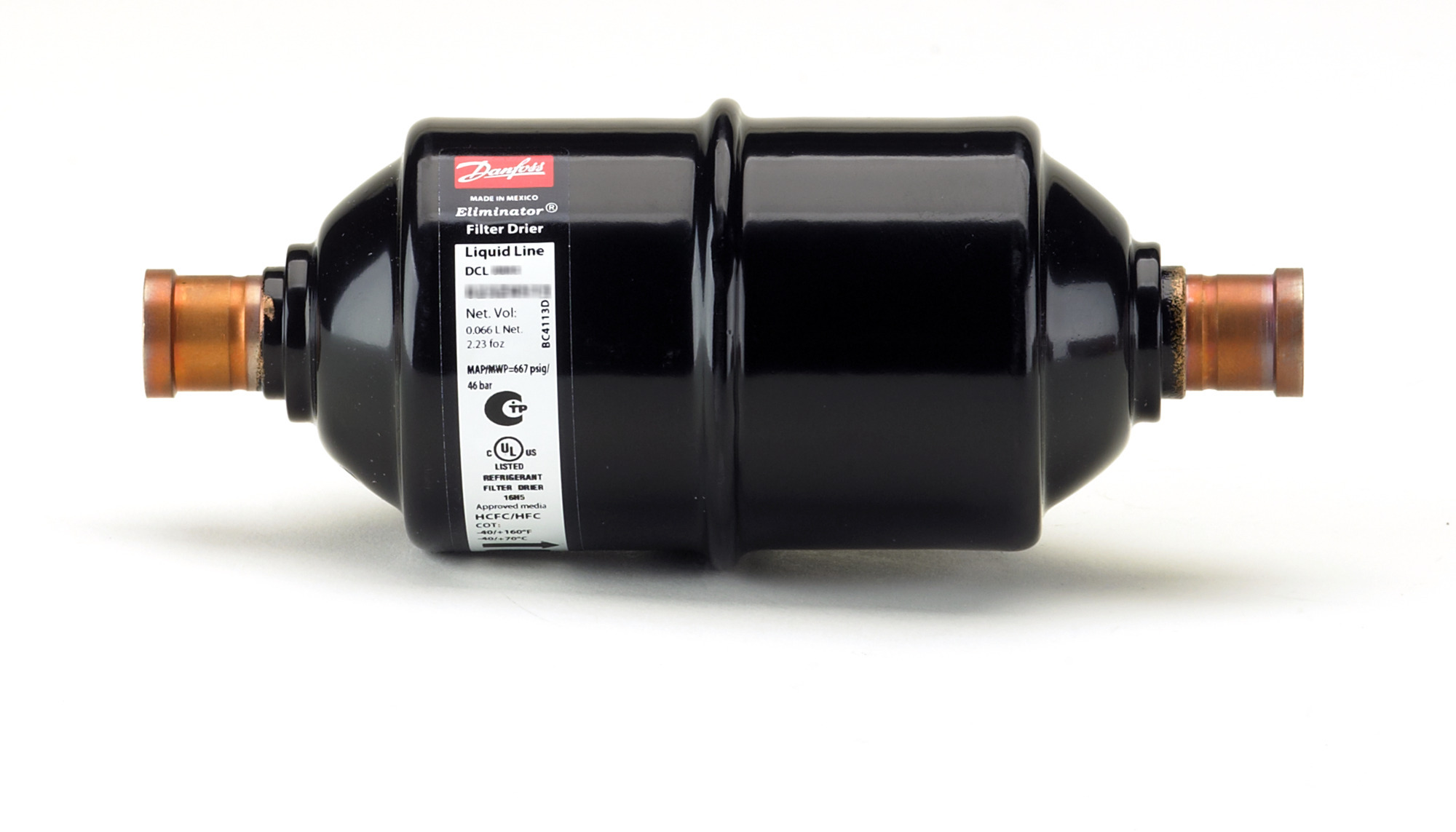

023Z4813

Part Number: 023Z4813
023Z4813
Manufacturer
Danfoss
Part number
023Z4813
Category

Product Information

Extended Description

023Z4813 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 08 cu.in.
Gross weight
0.386 Kilogram
Net weight
0.344 Kilogram
Volume
0.949 Liter
EAN
5702428156554
Acid capacity [g]
1.38 g
Acid capacity [oz]
0.049 oz
Activated alum/Molec sieve [%]
20% / 80%
Activated alumina [%]
20 %
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
China RoHS compliance
Yes exceed limitations
Connection material
Steel Cu-plated
Contain batteries
No
Core
Solid core
Core Size code
08 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24=C2=B0C
R134a: 196,R290: 155,R32: 165,R404A: 204,R407C: 190,R410A: 178,R507: 214
Drying Cap[Drops of Water]52=C2=B0C
R134a: 180,R290: 124,R32: 152,R404A: 194,R407C: 176,R410A: 158,R507: 192
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Filter application
Std Moisture & Acid Capacity
Flow capacity [kW]
R134a: 21.8,R290: 26.2,R32: 33.2,R404A: 15.3,R407C: 22.3,R410A: 22.6,R507: 14.8
Flow capacity [TR]
R134a: 6.2,R290: 7.5,R32: 9.4,R404A: 4.4,R407C: 6.3,R410A: 6.4,R507: 4.2
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Inlet 1 connection size [in]
1/2 in
Inlet connection type
Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]
Delta p=3D0.07bar,tliq=3D 30=C2=B0C,tvap=3D-15=C2=B0C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=3D1psi,tliq=3D 86=C2=B0F,tvap=3D5=C2=B0F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
80 %
Net volume [foz US]
3.87 Fluid Ounce US
Net volume [l]
0.114 L
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A
Outlet 1 connection size [in]
1/2 in
Outlet connection type
Solder, ODF
Packing format
Industrial pack
PED category
Art. 4, par. 3
Product description
Liquid line filter drier
Product group
Filter driers
Product Name Description
Hermetic filter drier
Quantity per packing format
16 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R22/R407C,R23,R290,R32,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R516A,R600
Serviceable
No
Shell volume [foz US]
5.85 Fluid Ounce US
Shell volume [l]
0.17 L
Solid core surface [cm2]
118 cm=C2=B2
Solid core surface [in2]
18.29 in=C2=B2
Solid core volume [cm3]
59 cm=C2=B3
Solid core volume [in3]
3.57 in=C2=B3
Temperature range [=C2=B0C] [max]
70 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
160 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
DCL
Type designation
DCL 084S
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
UL evaluated
Yes
