023Z511791

Part Number: 023Z511791
023Z511791
Manufacturer
Danfoss
Part number
023Z511791
Category

Product Information

Extended Description

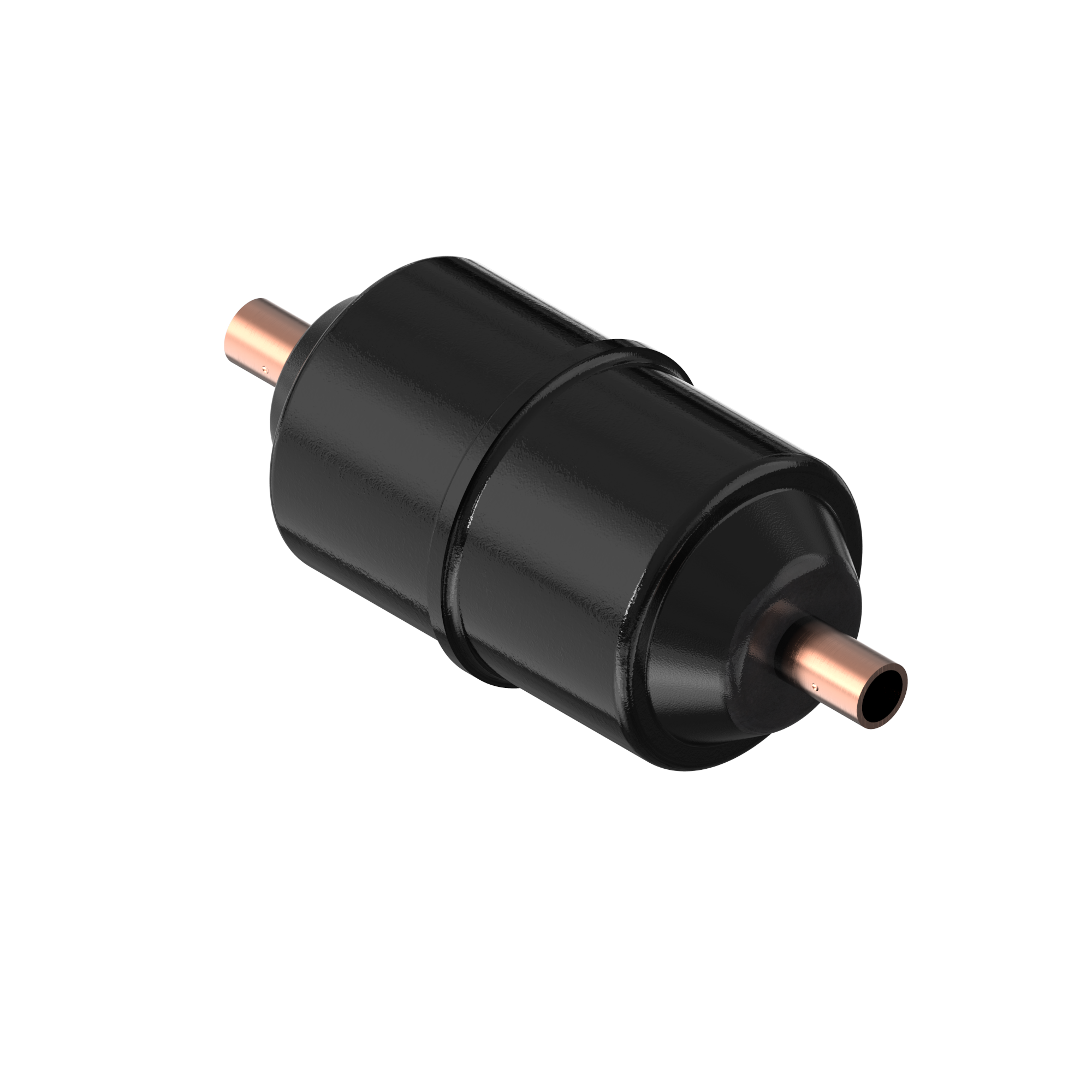

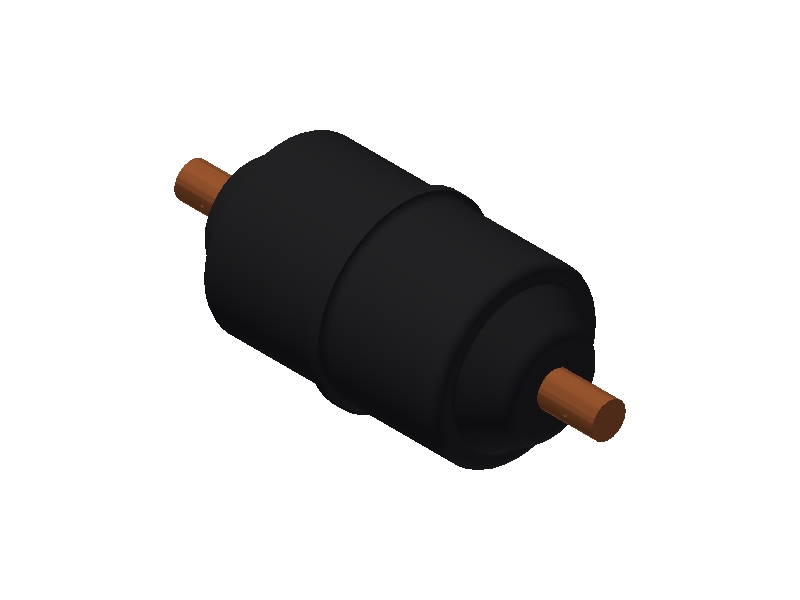

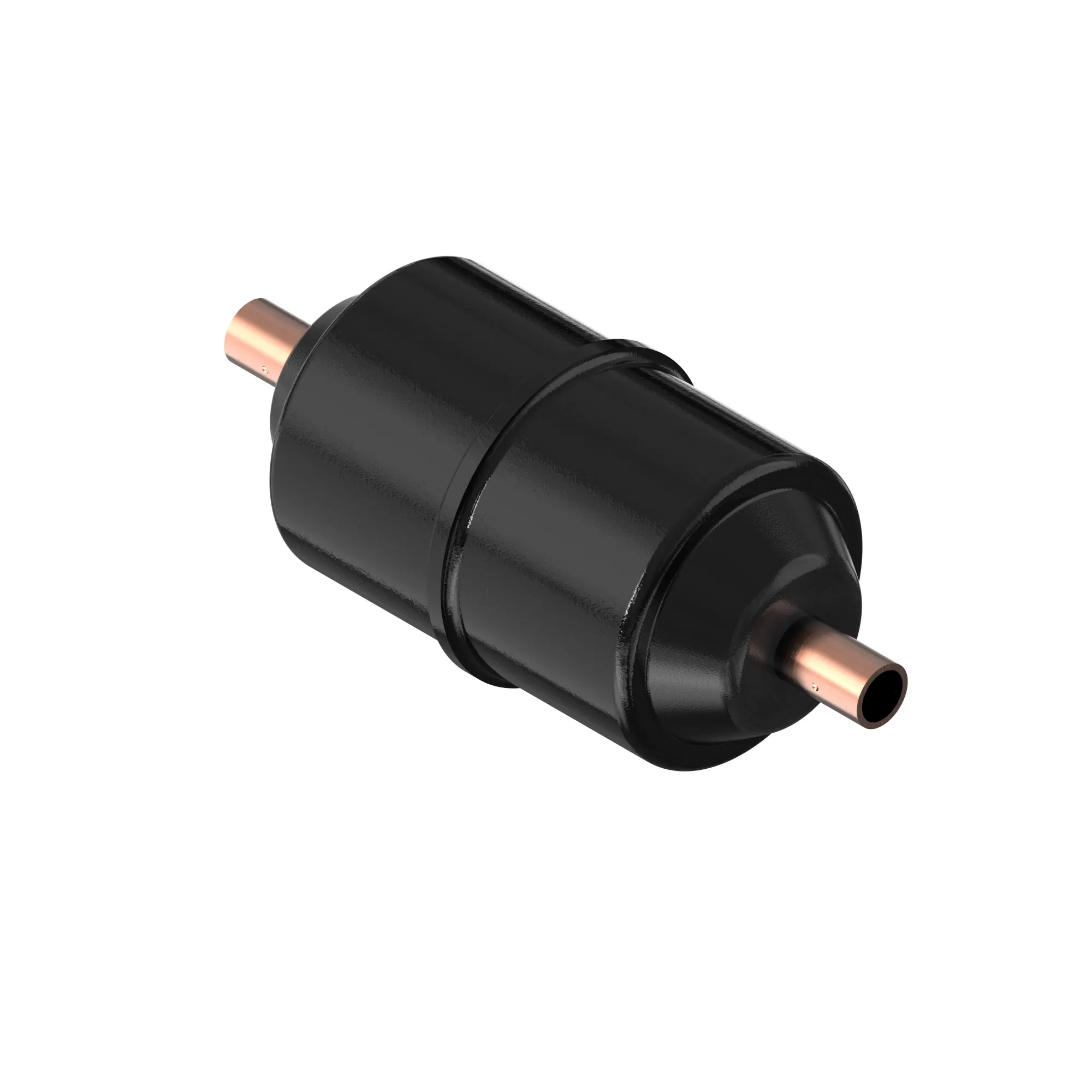

023Z511791 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 08 cu.in.
Gross weight
0.368 Kilogram
Net weight
0.306 Kilogram
Volume
0.698 Liter
EAN
5702428651424
Acid capacity [g]
0.54 g
Acid capacity [oz]
0.019 oz
Activated alum/Molec sieve [%]
0% / 100%
Activated alumina [%]
0 %
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
Core
Solid core
Core Size code
08 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24=C2=B0C
R134a: 250,R290: --,R32: 211,R404A: 261,R407C: 243,R410A: 227,R507: 273
Drying Cap[Drops of Water]52=C2=B0C
R134a: 229,R290: --,R32: 194,R404A: 247,R407C: 224,R410A: 201,R507: 246
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Filter application
High Moisture Capacity
Flow capacity [kW]
R134a: 11.1,R290: 13.4,R32: 16.9,R404A: 7.8,R407C: 11.4,R410A: 11.6,R507: 7.6
Flow capacity [TR]
R134a: 3.2,R290: 3.8,R32: 4.8,R404A: 2.2,R407C: 3.2,R410A: 3.3,R507: 2.2
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Inlet 1 connection size [in]
5/16 in
Inlet connection type
Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]
Delta p=3D0.07bar,tliq=3D 30=C2=B0C,tvap=3D-15=C2=B0C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=3D1psi,tliq=3D 86=C2=B0F,tvap=3D5=C2=B0F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
100 %
Net volume [foz US]
3.87 Fluid Ounce US
Net volume [l]
0.114 L
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A
Outlet 1 connection size [in]
5/16 in
Outlet connection type
Solder, ODF
Packing format
Multi pack
PED category
Art. 4, par. 3
Product description
Liquid line filter drier
Product group
Filter driers
Product Name Description
Hermetic filter drier
Quantity per packing format
24 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R22/R407C,R23,R290,R32,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R516A,R600
Serviceable
No
Shell volume [foz US]
5.85 Fluid Ounce US
Shell volume [l]
0.17 L
Solid core surface [cm2]
118 cm=C2=B2
Solid core surface [in2]
18.29 in=C2=B2
Solid core volume [cm3]
59 cm=C2=B3
Solid core volume [in3]
3.57 in=C2=B3
Temperature range [=C2=B0C] [max]
70 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
160 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
DML
Type designation
DML 082.5S
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
UL evaluated
Yes
Hermetic filter drier Type DML/DMLE and DCL/DCLE ELIMINATOR=C2=AE Hermetic filter drier Type DML / DMLE / DCL / DCLE Filter Driers 023U and 023Z Danfoss MD 023U9601.AI Danfoss MD 023Z9610.AA UL SA6398 19980330 US-CA TSSA CRN 0E24090.5123467890TNY Hermetic filter drier, DML_023Z511791 Filter drier DML 082.5S Filter drier DML 082.5S
