023Z8056

Part Number: 023Z8056
023Z8056
Manufacturer
Danfoss
Part number
023Z8056
Category

Product Information

Extended Description

023Z8056 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 03 cu.in.
Gross weight
0.176 Kilogram
Net weight
0.152 Kilogram
Volume
0.32 Liter
EAN
5702428377355
Acid capacity [g]
0.53 g
Acid capacity [oz]
0.019 oz
Activated alum/Molec sieve [%]
20% / 80%
Activated alumina [%]
20 %
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Connection notes
Long 1/4 in Cu conn., at inlet
Contain batteries
No
Core
Solid core
Core Size code
03 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24=C2=B0C
R134a: 76,R290: 60,R32: 64,R404A: 79,R407C: 74,R410A: 69,R507: 83
Drying Cap[Drops of Water]52=C2=B0C
R134a: 69,R290: 48,R32: 59,R404A: 75,R407C: 68,R410A: 61,R507: 74
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)
Filter application
Std Moisture & Acid Capacity
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Inlet 1 connection size [in]
1/4 in
Inlet connection type
Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]
Delta p=3D0.07bar,tliq=3D 30=C2=B0C,tvap=3D-15=C2=B0C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=3D1psi,tliq=3D 86=C2=B0F,tvap=3D5=C2=B0F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
80 %
Net volume [foz US]
1.72 Fluid Ounce US
Net volume [l]
0.051 L
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A
Outlet connection size [mm]
2.8 mm
Outlet connection type
Solder, ODF
Packing format
Industrial pack
PED category
Art. 4, par. 3

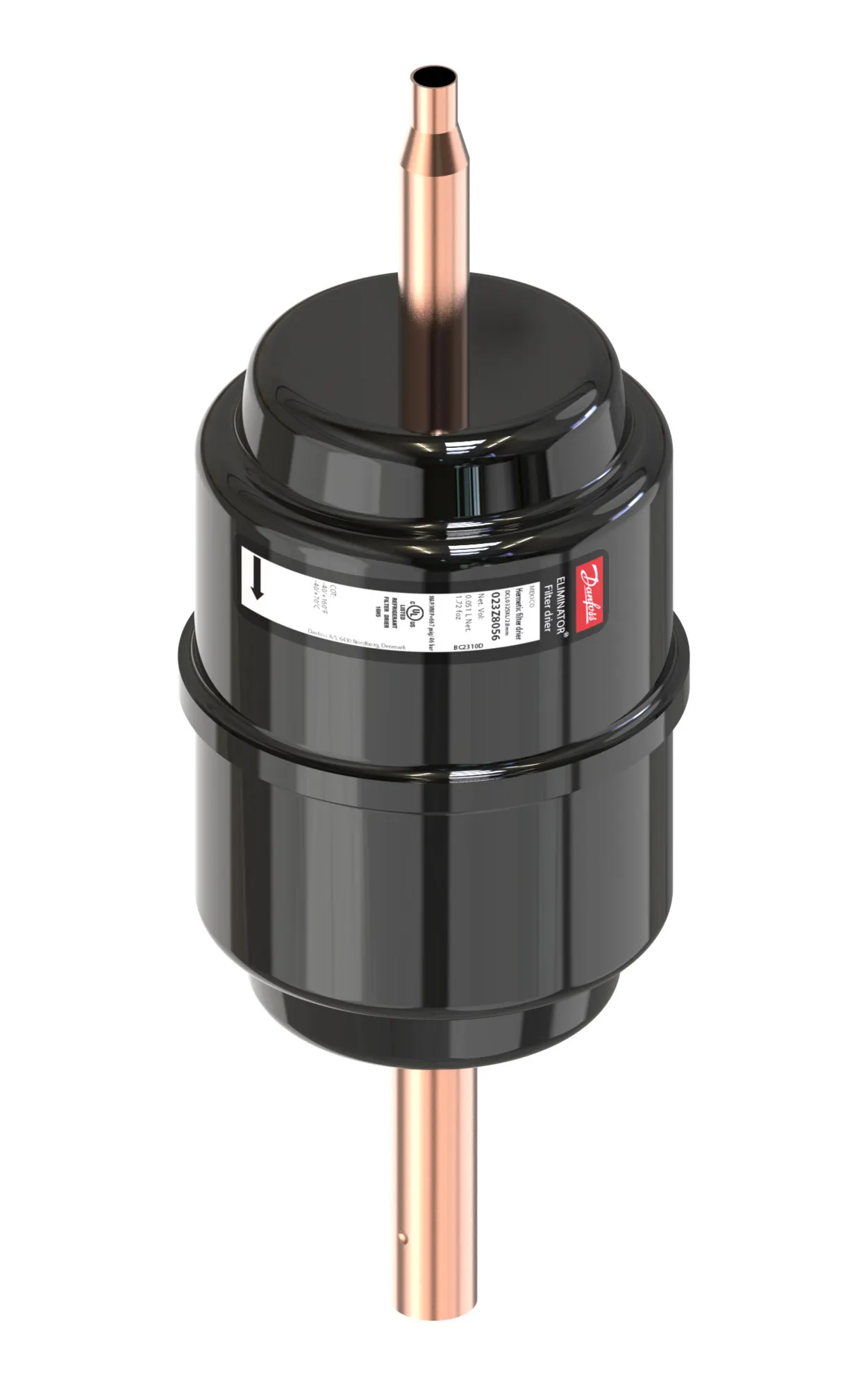

Product description
Liquid line filter drier
Product group
Filter driers
Product Name Description
Hermetic filter drier
Quantity per packing format
28 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R22/R407C,R23,R290,R32,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R516A,R600
Serviceable
No
Shell volume [foz US]
2.44 Fluid Ounce US
Shell volume [l]
0.07 L
Solid core surface [cm2]
59 cm=C2=B2
Solid core surface [in2]
9.1 in=C2=B2
Solid core volume [cm3]
21 cm=C2=B3
Solid core volume [in3]
1.3 in=C2=B3
Temperature range [=C2=B0C] [max]
70 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
160 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
DCL
Type designation
DCL 032SXL/2.8mm
UK RoHS compliance
Out of scope
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407C,R407F,R410A,R422B,R422D,R438A,R448A,R449A,R449B,R450A,R452A,R507A,R513A
UL evaluated
Yes
Hermetic filter drier Type DML/DMLE and DCL/DCLE ELIMINATOR=C2=AE Hermetic filter drier Type DML / DMLE / DCL / DCLE ELIMINATOR=C2=AE Hermetic filter driers Type DCL with access port Filter drier with access port Product type DCL 01.5s, DCL 03s and DCL 05s High Runner Filter Drier Data Sheet Filter Driers 023U and 023Z Danfoss MD 023U9601.AI Danfoss MD 023Z9610.AA UL SA6398 19980330 US-CA TSSA CRN 0E24090.5123467890TNY Hermetic filter drier, DCL, 03 cu.in., Copper 023Z8056, WEB023Z8056
