023Z8689

Part Number: 023Z8689
023Z8689
Manufacturer
Danfoss
Part number
023Z8689
Category

Product Information

Extended Description

023Z8689 Danfoss: Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 08 cu.in.
Gross weight
0.568 Kilogram
Net weight
0.548 Kilogram
Volume
0.811 Liter
EAN
5715255015086
Acid capacity [g]
0.99 g
Acid capacity [oz]
0.035 oz
Activated alumina [%]
20 %
Approval
UL
Body material
Steel
Braket
No
Brand
ELIMINATOR
Connection material
Copper
Contain batteries
No
Core Size code
08 cu.in.
Core type
Solid core
Drying Cap[Drops of Water]24°C
R134a: 141,R290: 112,R32: 119,R404A: 147,R407C: 137,R410A: 128,R507: 154
Drying Cap[Drops of Water]52°C
R134a: 129,R290: 89,R32: 110,R404A: 140,R407C: 127,R410A: 114,R507: 139
Filter application
Std Moisture & Acid Capacity
Flow capacity [kW]
R134a: 5.1,R290: 6.2,R32: 7.8,R404A: 3.6,R407C: 5.3,R410A: 5.3,R507: 3.5
Flow capacity [TR]
R134a: 1.5,R290: 1.8,R32: 2.2,R404A: 1.0,R407C: 1.5,R410A: 1.5,R507: 1.0
Flow direction indicator
Label printed 1-way arrow
Fluid Group
2
Inlet 1 connection size [in]
1/4 in
Inlet connection type
Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]
Delta p=0.07bar,tliq= 30°C,tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]
Delta p=1psi,tliq= 86°F,tvap=5°F
Lubricants compatibility
Oilfree applications
Max. Working Pressure [bar]
46 bar
Max. Working Pressure [psig]
667 psig
Molecular sieve [%]
80 %
Net volume [foz US]
4.32 Fluid Ounce US
Net volume [l]
0.128 L
Oil free refrigerants
R1234ze(E),R134a,R513A,R515A
Outlet 1 connection size [in]
1/4 in
Outlet connection type
Solder, ODF
Packing format
Multi pack
PED category
Art. 4, par. 3

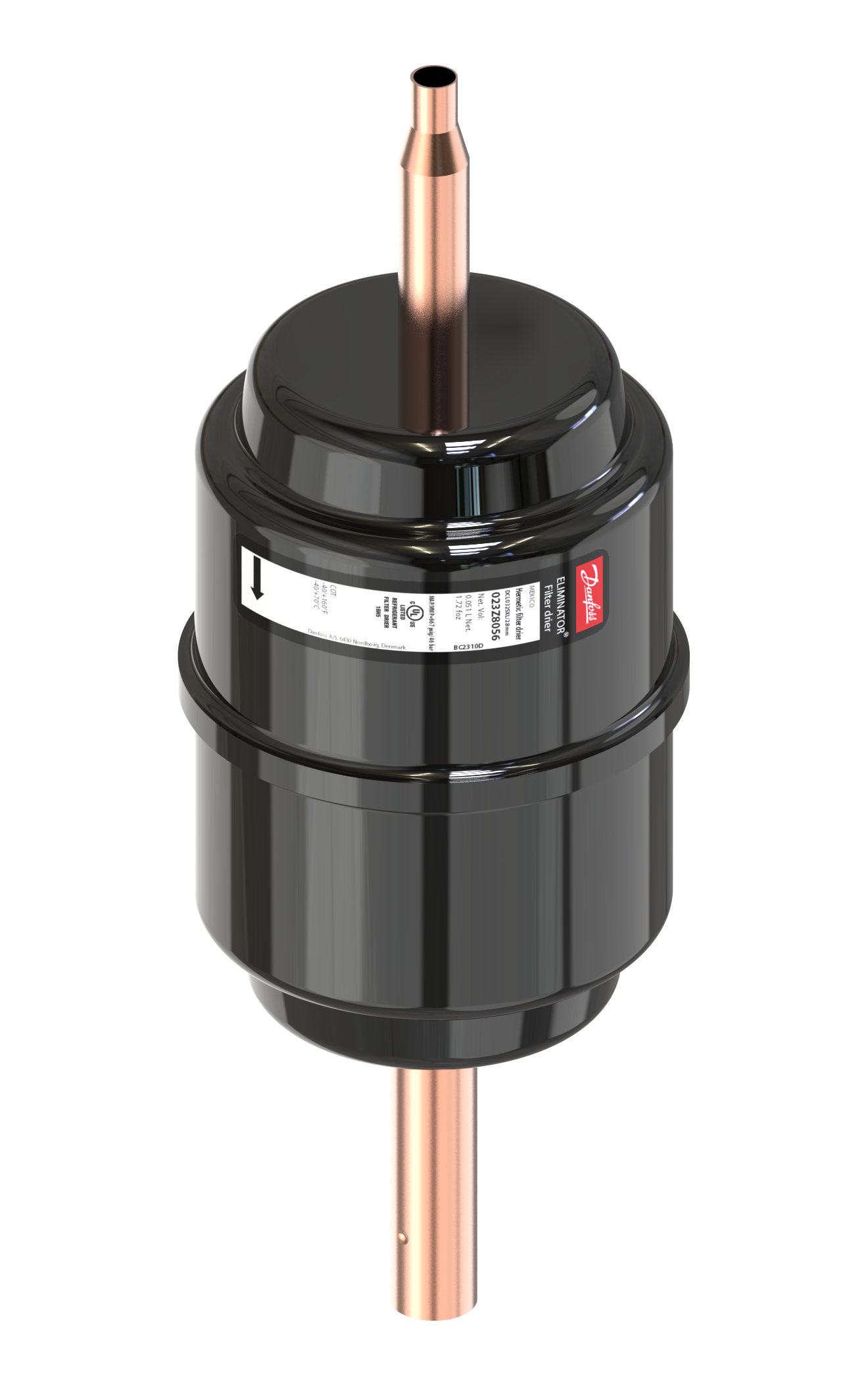

Product description
Biflow filter drier
Product group
Filter driers
Product Name Description
Hermetic bi-flow filter drier
Quantity per packing format
24 pc
REACH Candidate List substances
No
Refrigerants
R1233zd(E),R1234yf,R1234ze(E),R125,R134a,R22/R407C,R23,R290,R32,R404A,R407A,R407F,R407H,R410A,R422B,R422D,R438A,R444B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R507A,R513A,R515B,R516A,R600
Serviceable
No
Shell volume [foz US]
6.27 Fluid Ounce US
Shell volume [l]
0.18 L
Solid core surface [cm2]
88 cm²
Solid core surface [in2]
13.6 in²
Solid core volume [cm3]
44 cmÂł
Solid core volume [in3]
2.68 inÂł
Temperature range [°C] [max]
70 °C
Temperature range [°C] [min]
-40 °C
Temperature range [°F] [max]
160 °F
Temperature range [°F] [min]
-40 °F
Type
DCB
Type designation
DCB 082S
UL approval file name
SA6398
UL approved refrigerants
R125,R134a,R22,R23,R404A,R407A,R407F,R410A,R422A,R422D,R438A,R448A,R449A,R450A,R452A,R507A,R513A
UL evaluated
Yes
