027B0081

Part Number: 027B0081
027B0081
Manufacturer
Danfoss
Part number
027B0081
Category

Product Information

Extended Description

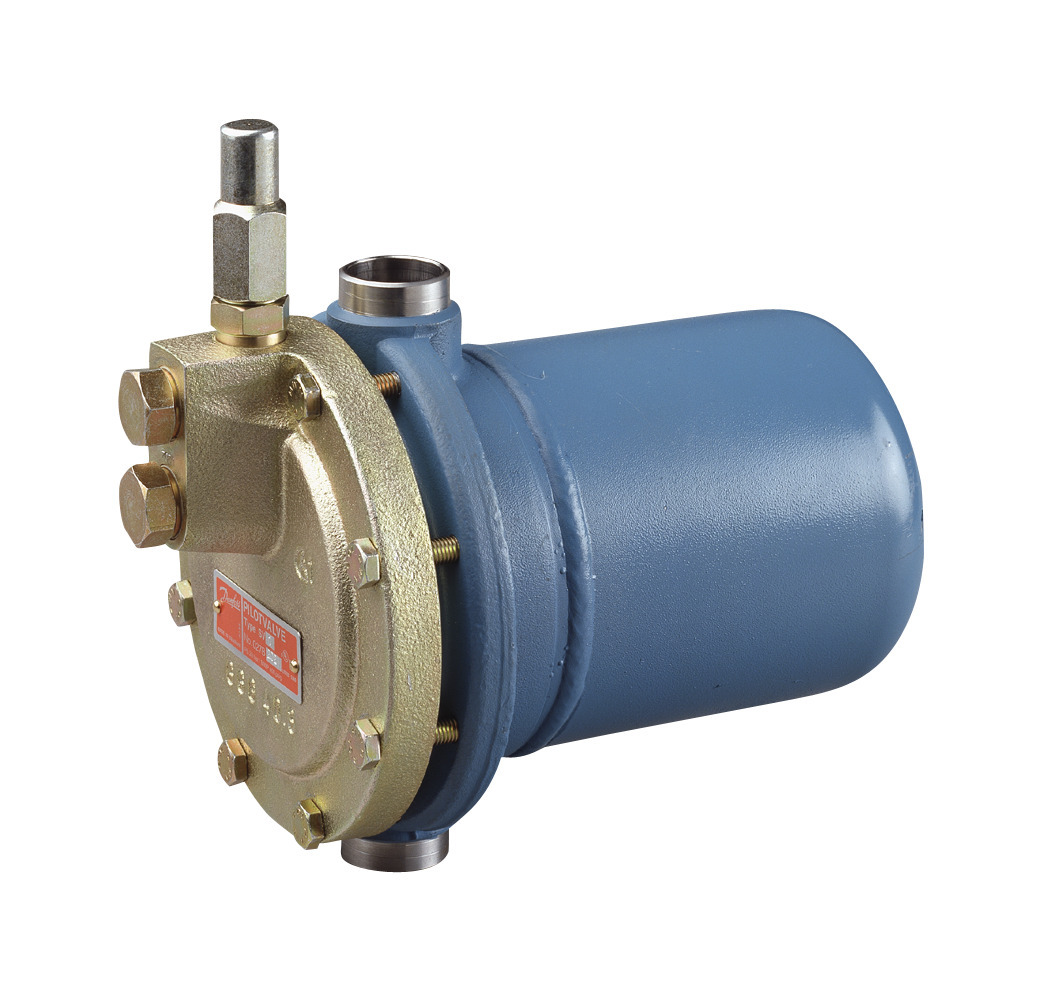

027B0081 Danfoss: Product description: Float Valve, Approval: LLC CDC TYSK; CE; UKCA; EAC
Gross weight
7.608 Kilogram
Net weight
7.035 Kilogram
Volume
20.671 Liter
EAN
5702428292184
Approval
CE,EAC,LLC CDC TYSK,UKCA
Balance pipe Solder conn. size
1 1/8 in
Balance pipe Weld conn. size
1 in
Body material
Low temperature steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection material
Low temperature, steel
Contain batteries
No
Cv value [gal/min]
0.16 gal/min
Differential pressure max[bar]
16 bar
Differential pressure max[psi]
232 psi
EU RoHS compliance
Out of scope
Float housig material
Steel
Fluid Group
1,2
Kv value [m=C2=B3/h]
0.14 m=C2=B3/h
Max. Working Pressure [bar]
28 bar
Max. Working Pressure [psig]
406 psig
Packing format
Single pack
PED category
I
Pilot line conn. size [mm]
OD =C3=989,8/ID =C3=986,8
Pilot line connection type
Welding
Product description
Float Valve
Product group
Liquid level regulating valves
Product Name Description
Float valve
Quantity per packing format
1 pc
Rated cap. conditions [IMP]
+41 =C2=B0F/+89,6 =C2=B0F, sub. Cooling
Rated cap. conditions [SI]
+5 =C2=B0C/+32 =C2=B0C, sub. Cooling 4 K
Rated cap. R404A/R507A [kW]
9.7 kW
Rated cap. R404A/R507A [TR]
2.76 TR
Rated capacity R134a [kW]
10 kW
Rated capacity R134a [TR]
2.84 TR
Rated capacity R22 [kW]
13 kW
Rated capacity R22 [TR]
3.7 TR
Rated capacity R717 [kW]
64 kW
Rated capacity R717 [TR]
18.2 TR
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R1270,R170,R290,R600,R600a,RE170
SCIP dossier no.
5afa1bd7-b40d-4068-a9f2-78f2cbcdaeb6
SCIP dossier product name
SV
Temperature range [=C2=B0C] [max]
65 =C2=B0C
Temperature range [=C2=B0C] [min]
-50 =C2=B0C
Temperature range [=C2=B0F] [max]
149 =C2=B0F
Temperature range [=C2=B0F] [min]
-58 =C2=B0F
Type
SV 3E
UK RoHS compliance
Out of scope
027B2028
SV 1-3 Seal kit PILOT CONNECTOR
027B2033
Liquid level valve accessories, SV 1-3 Pilot connector 3/8 in flare, SV 3; SV 1
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] Float valve, type SV 1 and SV 3 Float valve SV 1-3 Liquid level regulating valves Danfoss MD 033F1196.02 Danfoss UK 033F4026.AB SV 1 - 3 Float valve
